Understanding the structure and behavior of molecules is fundamental to the study of chemistry. One of the most effective tools for visualizing molecular structures is the Lewis Diagram. A Lewis Diagram, also known as a Lewis structure, provides a simple way to represent the valence electrons in a molecule. This diagram helps chemists predict the geometry, polarity, and reactivity of molecules. In this post, we will delve into the intricacies of Lewis Diagrams, with a particular focus on the Lewis Diagram of Br2.
What is a Lewis Diagram?
A Lewis Diagram is a diagrammatic representation of the valence electrons in a molecule. It shows how electrons are arranged around atoms to form chemical bonds. The diagram uses dots to represent valence electrons and lines to represent covalent bonds. The key elements of a Lewis Diagram include:
- Atoms: Represented by their chemical symbols.
- Valence Electrons: Represented by dots around the atoms.
- Bonds: Represented by lines between atoms.
Steps to Draw a Lewis Diagram
Drawing a Lewis Diagram involves several steps. Here is a step-by-step guide:
- Identify the Central Atom: Determine the central atom in the molecule. This is usually the least electronegative atom.
- Count the Valence Electrons: Calculate the total number of valence electrons in the molecule. This is done by adding the valence electrons of all the atoms involved.
- Arrange the Atoms: Place the atoms around the central atom, ensuring that the molecule’s geometry is considered.
- Form Bonds: Use pairs of electrons to form bonds between the central atom and the surrounding atoms. Each bond consists of two electrons.
- Distribute Remaining Electrons: Place the remaining electrons around the atoms to complete their octets (or duets for hydrogen).
- Check for Formal Charges: Ensure that the formal charges on the atoms are minimized. This helps in determining the most stable structure.
💡 Note: The octet rule states that atoms tend to form bonds until they have eight valence electrons. However, there are exceptions, such as hydrogen, which only needs two electrons to complete its valence shell.
Lewis Diagram of Br2
The Lewis Diagram of Br2 (bromine molecule) is a straightforward example of a diatomic molecule. Bromine is a halogen, and like other halogens, it forms a diatomic molecule with a single covalent bond. Let’s go through the steps to draw the Lewis Diagram of Br2:
- Identify the Central Atom: In Br2, there is no central atom since it is a diatomic molecule. Both bromine atoms are equivalent.
- Count the Valence Electrons: Each bromine atom has seven valence electrons. Therefore, the total number of valence electrons in Br2 is 14 (7 from each atom).
- Arrange the Atoms: Place the two bromine atoms next to each other.
- Form Bonds: Use two electrons to form a single covalent bond between the two bromine atoms.
- Distribute Remaining Electrons: Place the remaining 12 electrons (14 total - 2 used for the bond) around the bromine atoms to complete their octets. Each bromine atom will have three lone pairs of electrons.
- Check for Formal Charges: In Br2, there are no formal charges since both atoms have completed their octets and the bond is nonpolar.

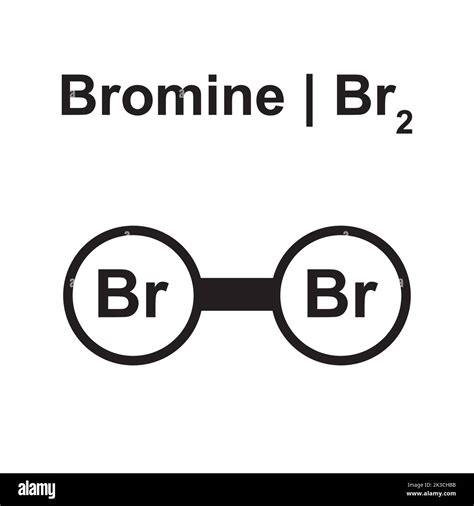

The resulting Lewis Diagram of Br2 looks like this:
Properties of Br2
Bromine (Br2) is a reddish-brown liquid at room temperature and has several unique properties:
- Physical State: Bromine is the only non-metal that is liquid at room temperature.
- Color: It has a distinctive reddish-brown color.
- Odor: Bromine has a strong, unpleasant odor similar to chlorine.
- Reactivity: Bromine is highly reactive and can form compounds with many elements.
- Toxicity: Bromine is toxic and can cause severe health issues if inhaled or ingested.
Applications of Br2
Bromine has various applications in industry and chemistry:
- Flame Retardants: Bromine compounds are used in flame retardants for plastics, textiles, and electronics.
- Pharmaceuticals: Bromine is used in the synthesis of certain pharmaceuticals and medications.
- Agriculture: Bromine compounds are used as fumigants in agriculture to control pests and diseases.
- Water Treatment: Bromine is used in water treatment to kill bacteria and other microorganisms.
Comparing Br2 with Other Halogens
Bromine is one of the halogens, a group of elements that includes fluorine, chlorine, iodine, and astatine. Each halogen has unique properties, but they share some common characteristics. Here is a comparison of bromine with other halogens:
| Halogen | Atomic Number | Physical State at Room Temperature | Color | Electronegativity |
|---|---|---|---|---|
| Fluorine (F2) | 9 | Gas | Pale yellow | 3.98 |
| Chlorine (Cl2) | 17 | Gas | Greenish-yellow | 3.16 |
| Bromine (Br2) | 35 | Liquid | Reddish-brown | 2.96 |
| Iodine (I2) | 53 | Solid | Purple | 2.66 |
| Astatine (At) | 85 | Solid | Unknown | 2.2 |
The Lewis Diagram of Br2 provides a clear visual representation of how bromine atoms bond to form a stable molecule. Understanding the Lewis Diagram of Br2 and other molecules is crucial for grasping the fundamentals of chemical bonding and molecular structure.
In summary, the Lewis Diagram is a powerful tool for visualizing molecular structures. The Lewis Diagram of Br2 illustrates the covalent bonding between two bromine atoms, highlighting the importance of valence electrons in forming stable molecules. Bromine’s unique properties and applications make it a valuable element in various industries. By understanding the Lewis Diagram of Br2, we gain insights into the behavior and reactivity of bromine and other halogens.
