In the realm of statistical process control (SPC), the Levey-Jennings Chart stands as a pivotal tool for monitoring the performance of analytical processes. This chart is particularly valuable in clinical laboratories, where precision and accuracy are paramount. By plotting control measurements over time, the Levey-Jennings Chart helps identify trends, shifts, and outliers that could indicate issues with the analytical process. This blog post delves into the intricacies of the Levey-Jennings Chart, its applications, and how it can be effectively utilized to maintain high standards in laboratory operations.
Understanding the Levey-Jennings Chart
The Levey-Jennings Chart is a type of control chart used to monitor the stability and performance of analytical methods. It was developed by Jacob Levey and William Jennings and is widely used in clinical chemistry to ensure the reliability of test results. The chart plots control measurements against time, allowing laboratory personnel to detect any deviations from the expected performance.
Key components of a Levey-Jennings Chart include:
- Control Limits: These are the upper and lower bounds within which the control measurements are expected to fall. They are typically set at ±2 or ±3 standard deviations from the mean.
- Center Line: This represents the mean of the control measurements and serves as the baseline for comparison.
- Control Measurements: These are the data points plotted on the chart, representing the results of control samples analyzed over time.
Constructing a Levey-Jennings Chart
Creating a Levey-Jennings Chart involves several steps, each crucial for accurate monitoring and interpretation. Here’s a step-by-step guide:
Step 1: Collect Control Data
Begin by collecting control data from the analytical process. This data should be obtained from control samples that are analyzed alongside patient samples. The control samples should be stable and have known values.
Step 2: Calculate the Mean and Standard Deviation
Calculate the mean and standard deviation of the control data. The mean will serve as the center line, while the standard deviation will help determine the control limits.
Step 3: Determine Control Limits
Set the control limits based on the standard deviation. Commonly, the upper control limit (UCL) and lower control limit (LCL) are set at ±2 or ±3 standard deviations from the mean. For example, if the mean is 10 and the standard deviation is 1, the control limits at ±2 standard deviations would be 8 and 12.
Step 4: Plot the Data
Plot the control measurements on the chart, with time on the x-axis and the measurement values on the y-axis. Include the center line and control limits on the chart for reference.
Step 5: Interpret the Chart
Analyze the chart to identify any trends, shifts, or outliers. Points falling outside the control limits indicate potential issues with the analytical process. Trends or shifts within the control limits may also warrant investigation.
📝 Note: It is essential to use control samples that are stable and have known values to ensure the accuracy of the Levey-Jennings Chart.
Applications of the Levey-Jennings Chart
The Levey-Jennings Chart is widely used in various settings, particularly in clinical laboratories. Its applications include:
- Quality Control: The chart helps monitor the performance of analytical methods, ensuring that test results are reliable and accurate.
- Process Improvement: By identifying trends and shifts, the chart can guide process improvements and corrective actions.
- Regulatory Compliance: Many regulatory bodies require laboratories to use control charts to demonstrate the reliability of their analytical methods.
Interpreting the Levey-Jennings Chart
Interpreting a Levey-Jennings Chart involves looking for specific patterns and deviations that could indicate issues with the analytical process. Here are some common interpretations:
- Points Outside Control Limits: These indicate potential problems with the analytical process, such as instrument malfunctions or reagent issues.
- Trends: A consistent upward or downward trend may suggest a gradual drift in the analytical process, which could be due to factors like reagent degradation or instrument wear.
- Shifts: A sudden shift in the data points may indicate a change in the analytical process, such as a new batch of reagents or a change in instrument settings.
- Outliers: Individual data points that fall significantly outside the expected range may be due to random errors or contamination.
Here is an example of how a Levey-Jennings Chart might look:
| Date | Control Measurement |
|---|---|
| 2023-10-01 | 10.2 |
| 2023-10-02 | 9.8 |
| 2023-10-03 | 10.5 |
| 2023-10-04 | 9.7 |
| 2023-10-05 | 10.3 |
In this example, the control measurements are plotted against the date, with the center line and control limits clearly marked. Any points falling outside the control limits would indicate potential issues with the analytical process.
Best Practices for Using the Levey-Jennings Chart
To maximize the effectiveness of the Levey-Jennings Chart, consider the following best practices:
- Regular Monitoring: Regularly update the chart with new control data to ensure continuous monitoring of the analytical process.
- Prompt Investigation: Investigate any points falling outside the control limits or any trends and shifts promptly to identify and correct issues.
- Documentation: Maintain detailed records of control data, interpretations, and corrective actions taken.
- Training: Ensure that laboratory personnel are adequately trained in the use and interpretation of the Levey-Jennings Chart.
📝 Note: Regular monitoring and prompt investigation are crucial for maintaining the reliability of the analytical process.
Common Challenges and Solutions
While the Levey-Jennings Chart is a powerful tool, it is not without its challenges. Some common issues and their solutions include:
- Data Variability: High variability in control data can make it difficult to detect trends and shifts. Ensure that control samples are stable and have known values to minimize variability.
- Interpretation Errors: Misinterpretation of the chart can lead to incorrect conclusions. Provide adequate training to laboratory personnel to ensure accurate interpretation.
- Inadequate Control Limits: Setting control limits too narrowly or too widely can affect the chart's sensitivity. Use statistical methods to determine appropriate control limits based on the data.
By addressing these challenges, laboratories can enhance the effectiveness of the Levey-Jennings Chart and improve the reliability of their analytical processes.

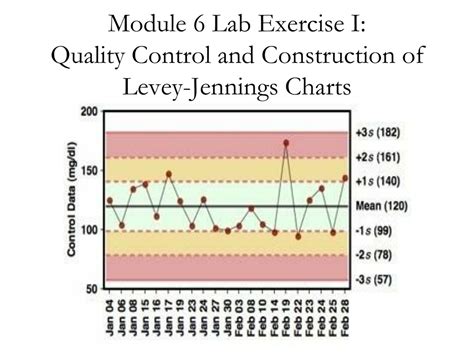

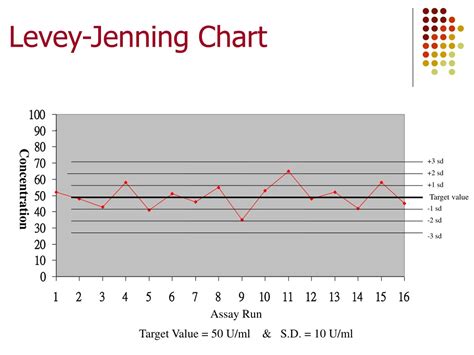

This image illustrates a typical Levey-Jennings Chart, showing control measurements plotted against time with control limits and a center line.
In summary, the Levey-Jennings Chart is an indispensable tool for monitoring the performance of analytical processes in clinical laboratories. By providing a visual representation of control data over time, it helps identify trends, shifts, and outliers that could indicate issues with the analytical process. Regular monitoring, prompt investigation, and adequate training are essential for maximizing the effectiveness of the Levey-Jennings Chart. By addressing common challenges and following best practices, laboratories can ensure the reliability and accuracy of their test results, ultimately enhancing patient care and regulatory compliance.
