In the realm of mechanical engineering and physics, the concept of a lever is fundamental. A lever is a simple machine that amplifies an input force to lift or move a load. Understanding the lever first class example is crucial for grasping the principles of mechanical advantage and the different types of levers. This post will delve into the intricacies of levers, focusing on the first class lever, its applications, and how it differs from other types of levers.
Understanding Levers
A lever is defined by three key components: the fulcrum, the effort (or input force), and the load (or resistance force). The fulcrum is the pivot point around which the lever rotates. The effort is the force applied to the lever, and the load is the force that the lever is intended to overcome. The position of these components relative to each other determines the type of lever and its mechanical advantage.
The First Class Lever

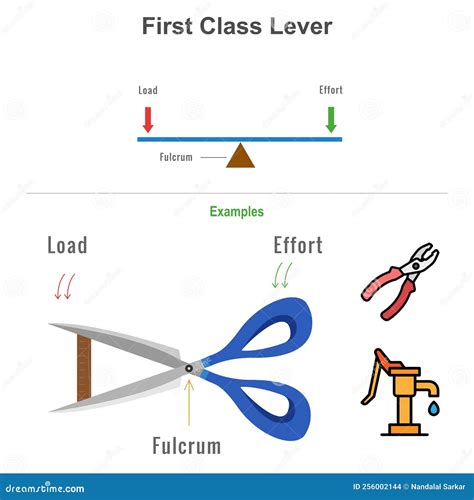

The first class lever is characterized by the fulcrum being positioned between the effort and the load. This configuration allows for a wide range of applications, from simple tools like scissors and pliers to complex machinery. The lever first class example is often seen in everyday objects, making it a crucial concept to understand.
One of the most common examples of a first class lever is a seesaw. In a seesaw, the fulcrum is the center point where the two sides meet. The effort is applied by one person sitting on one end, and the load is the weight of the person on the other end. The mechanical advantage of a seesaw can be adjusted by changing the positions of the effort and the load relative to the fulcrum.
Another example is a pair of scissors. The fulcrum is the pivot point where the two blades meet, the effort is applied by the handles, and the load is the material being cut. The design of scissors ensures that the effort required to cut through materials is minimized, making them an efficient tool.
Mechanical Advantage of First Class Levers
The mechanical advantage of a lever is the ratio of the load to the effort. For a first class lever, the mechanical advantage can be calculated using the formula:
Mechanical Advantage = Load / Effort
This formula helps in understanding how much the input force is amplified to lift or move the load. The position of the fulcrum relative to the effort and the load determines the mechanical advantage. If the effort arm (the distance from the fulcrum to the point where the effort is applied) is longer than the load arm (the distance from the fulcrum to the point where the load is applied), the mechanical advantage is greater than 1, meaning the lever amplifies the input force.
Applications of First Class Levers
First class levers are ubiquitous in various fields, from everyday tools to industrial machinery. Some notable applications include:
- Scissors and Pliers: These tools use the first class lever principle to amplify the force applied by the user, making it easier to cut or grip objects.
- Crowbars: Used to lift heavy objects, crowbars utilize the first class lever to provide a mechanical advantage, allowing users to apply less force to move heavy loads.
- Wheelbarrows: The wheel acts as the fulcrum, the handles as the effort, and the load is the weight of the materials being transported. This design makes it easier to move heavy loads over short distances.
- Crane Arms: In industrial settings, crane arms use the first class lever principle to lift and move heavy objects with precision.
Comparing First Class Levers to Other Types
There are three main types of levers: first class, second class, and third class. Each type has its unique characteristics and applications.
Second Class Levers
In a second class lever, the load is positioned between the fulcrum and the effort. A common example is a wheelbarrow, where the wheel acts as the fulcrum, the handles as the effort, and the load is the weight of the materials being transported. The mechanical advantage of a second class lever is always greater than 1, making it ideal for lifting heavy loads with minimal effort.
Third Class Levers
In a third class lever, the effort is applied between the fulcrum and the load. Examples include tweezers and human arms. The mechanical advantage of a third class lever is always less than 1, meaning the input force is not amplified but rather distributed over a larger area. This type of lever is useful for tasks that require precision and control rather than brute force.
Here is a comparison table of the three types of levers:
| Type of Lever | Fulcrum Position | Mechanical Advantage | Examples |
|---|---|---|---|
| First Class | Between Effort and Load | Can be greater than, less than, or equal to 1 | Seesaw, Scissors, Crowbars |
| Second Class | Between Load and Effort | Always greater than 1 | Wheelbarrow, Nutcracker |
| Third Class | Between Effort and Load | Always less than 1 | Tweezers, Human Arms |
📝 Note: The mechanical advantage of a lever is determined by the relative positions of the fulcrum, effort, and load. Understanding these positions is key to designing efficient mechanical systems.
Designing Efficient Levers
Designing efficient levers involves careful consideration of the mechanical advantage required for the task at hand. Here are some steps to design an efficient lever:
- Identify the Task: Determine the specific task the lever will perform, such as lifting, moving, or cutting.
- Choose the Type of Lever: Based on the task, select the appropriate type of lever (first, second, or third class).
- Determine the Mechanical Advantage: Calculate the required mechanical advantage to ensure the lever can perform the task efficiently.
- Position the Fulcrum: Place the fulcrum in the optimal position to achieve the desired mechanical advantage.
- Test and Adjust: Test the lever and make necessary adjustments to improve its performance.
For example, if you need to design a lever to lift a heavy object, you might choose a second class lever because it always provides a mechanical advantage greater than 1. The fulcrum would be positioned close to the load, and the effort would be applied at the end of the lever arm.
In contrast, if you need a lever to perform a precise task, such as using tweezers to pick up a small object, a third class lever would be more suitable. The fulcrum would be positioned close to the effort, and the load would be at the end of the lever arm.
📝 Note: The design of a lever should always consider the specific requirements of the task and the mechanical advantage needed to perform it efficiently.
In the realm of mechanical engineering, the lever first class example serves as a foundational concept. Understanding how first class levers work and their applications is essential for designing efficient mechanical systems. Whether it's a simple tool like scissors or a complex machine, the principles of levers are universally applicable. By mastering the lever first class example, engineers and designers can create innovative solutions that leverage the power of mechanical advantage.
In conclusion, the lever first class example is a cornerstone of mechanical engineering. From everyday tools to industrial machinery, first class levers play a crucial role in amplifying force and making tasks more efficient. By understanding the principles of levers, their mechanical advantage, and their applications, we can appreciate the ingenuity behind these simple yet powerful machines. Whether you’re designing a new tool or studying the fundamentals of physics, the lever first class example provides valuable insights into the world of mechanics.
