Left Skewed Graph

Understanding data distribution is crucial for making informed decisions in various fields, from finance to healthcare. One of the key concepts in data analysis is the left skewed graph, which provides insights into the asymmetry of data sets. This blog post will delve into the intricacies of left skewed graphs, their significance, and how to interpret them effectively.

Table of Contents

Understanding Left Skewed Graphs

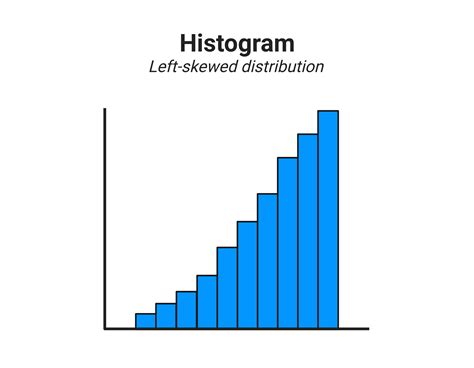

A left skewed graph, also known as a negatively skewed distribution, is a type of distribution where the tail on the left side of the graph is longer or fatter than the right side. This means that the mass of the distribution is concentrated on the right, and the mean is typically less than the median. Visualizing a left skewed graph can help analysts understand the underlying data better and make more accurate predictions.

Characteristics of a Left Skewed Graph

To identify a left skewed graph, look for the following characteristics:

Longer Left Tail: The left tail of the distribution is longer or fatter than the right tail.
Mean Less Than Median: The mean of the data is typically less than the median.
Mass Concentration: The bulk of the data is concentrated on the right side of the graph.
Asymmetry: The graph is asymmetrical, with the peak shifted to the right.

Interpreting a Left Skewed Graph

Interpreting a left skewed graph involves understanding the implications of the data distribution. Here are some steps to interpret a left skewed graph effectively:

Identify the Peak: Locate the peak of the distribution, which indicates the most frequent value.
Analyze the Tail: Examine the length and shape of the left tail to understand the extent of the skew.
Compare Mean and Median: Calculate the mean and median of the data set and compare them. In a left skewed distribution, the mean is usually less than the median.
Evaluate the Spread: Assess the spread of the data to understand the variability and range.

📊 Note: In a left skewed graph, the presence of outliers on the left side can significantly affect the mean, making it a less reliable measure of central tendency compared to the median.

Applications of Left Skewed Graphs

Left skewed graphs are used in various fields to analyze data and make informed decisions. Some common applications include:

Finance: Analyzing stock prices, where the majority of prices are higher, but there are occasional significant drops.
Healthcare: Studying patient recovery times, where most patients recover quickly, but a few take much longer.
Education: Evaluating test scores, where most students score high, but a few score very low.
Marketing: Assessing customer satisfaction, where most customers are satisfied, but a few are highly dissatisfied.

Creating a Left Skewed Graph

To create a left skewed graph, you can use various statistical software tools or programming languages. Here is a step-by-step guide using Python and the Matplotlib library:

First, ensure you have the necessary libraries installed. You can install them using pip if you haven't already:

pip install matplotlib numpy

Next, use the following code to generate a left skewed graph:

import matplotlib.pyplot as plt
import numpy as np

# Generate a left skewed data set
data = np.random.normal(loc=5, scale=2, size=1000)
data = np.concatenate((data, np.random.normal(loc=2, scale=1, size=100)))

# Create a histogram
plt.hist(data, bins=30, edgecolor='black')

# Add titles and labels
plt.title('Left Skewed Graph')
plt.xlabel('Value')
plt.ylabel('Frequency')

# Show the plot
plt.show()

💡 Note: Adjust the parameters in the code to generate different levels of skewness and data distributions.

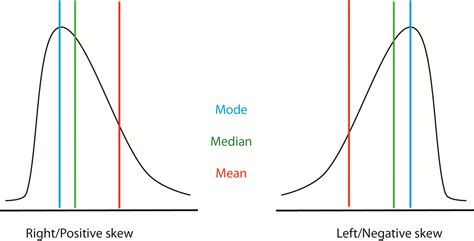

Comparing Left Skewed and Right Skewed Graphs

Understanding the difference between left skewed graphs and right skewed graphs is essential for accurate data analysis. Here is a comparison of the two:

Characteristic	Left Skewed Graph	Right Skewed Graph
Tail Length	Longer left tail	Longer right tail
Mean vs. Median	Mean < Median	Mean > Median
Mass Concentration	Concentrated on the right	Concentrated on the left
Asymmetry	Peak shifted to the right	Peak shifted to the left

By comparing these characteristics, you can better understand the nature of your data and choose the appropriate statistical methods for analysis.

Challenges in Analyzing Left Skewed Graphs

Analyzing left skewed graphs can present several challenges. Some common issues include:

Outliers: The presence of outliers on the left side can distort the mean and make it less representative of the central tendency.
Data Transformation: Transforming data to reduce skewness can be complex and may not always be effective.
Interpretation: Interpreting the results of statistical tests can be challenging due to the asymmetry of the data.

To overcome these challenges, it is essential to use robust statistical methods and consider the context of the data.

🔍 Note: Always visualize the data using histograms or box plots to get a better understanding of the distribution and identify any outliers.

In conclusion, understanding left skewed graphs is crucial for accurate data analysis and decision-making. By recognizing the characteristics of a left skewed distribution, interpreting the data correctly, and applying appropriate statistical methods, analysts can gain valuable insights into their data sets. Whether in finance, healthcare, education, or marketing, the ability to analyze left skewed graphs can lead to more informed and effective strategies.
