Understanding the intricacies of a Led Symbol Circuit is essential for anyone interested in electronics and circuit design. LEDs, or Light Emitting Diodes, are versatile components used in a wide range of applications, from simple indicators to complex displays. This post will delve into the fundamentals of LED symbol circuits, their components, and how to design and troubleshoot them effectively.
Understanding LED Basics
Before diving into the Led Symbol Circuit, it’s crucial to grasp the basics of LEDs. LEDs are semiconductor devices that emit light when an electric current passes through them. They are preferred over traditional incandescent bulbs due to their energy efficiency, longevity, and compact size.
Key characteristics of LEDs include:
- Forward Voltage (Vf): The voltage required to light the LED.
- Forward Current (If): The current flowing through the LED when it is lit.
- Reverse Voltage: The maximum voltage that can be applied in the reverse direction without damaging the LED.
Components of an LED Symbol Circuit
A basic Led Symbol Circuit consists of several key components:
- LED: The light-emitting diode.
- Resistor: A current-limiting resistor to protect the LED from excessive current.
- Power Source: A battery or power supply to provide the necessary voltage.
- Wires: Conductors to connect the components.
Here is a simple table outlining the typical values for these components:
| Component | Typical Value |
|---|---|
| LED | Various colors and sizes |
| Resistor | 220 ohms to 1 kΩ |
| Power Source | 3V to 12V |
| Wires | 22 AWG or similar |
Designing a Basic LED Symbol Circuit
Designing a basic Led Symbol Circuit involves connecting the LED and resistor in series with the power source. The resistor is crucial as it limits the current flowing through the LED, preventing it from burning out.
Here are the steps to design a basic LED circuit:
- Select the LED: Choose an LED based on the desired color and brightness.
- Determine the Forward Voltage (Vf): Check the datasheet for the LED's forward voltage.
- Calculate the Resistor Value: Use Ohm's Law (V = IR) to calculate the resistor value. The formula is R = (Vsupply - Vf) / If.

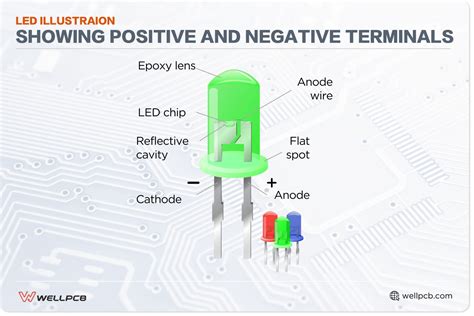

- Connect the Components: Connect the LED and resistor in series with the power source. Ensure the LED's anode (longer leg) is connected to the positive terminal and the cathode (shorter leg) to the resistor.
💡 Note: Always double-check the polarity of the LED. Connecting it backward can damage the LED.
Troubleshooting LED Symbol Circuits
Even with careful design, issues can arise in an Led Symbol Circuit. Common problems include the LED not lighting up or flickering. Here are some troubleshooting steps:
- Check the Power Source: Ensure the power source is providing the correct voltage.
- Inspect the Connections: Verify that all connections are secure and there are no loose wires.
- Test the LED: Use a multimeter to check if the LED is functioning. Replace it if necessary.
- Measure the Resistor: Ensure the resistor value is correct and it is not burnt out.
💡 Note: If the LED is flickering, it might be due to insufficient current. Check the resistor value and ensure it is within the recommended range.
Advanced LED Symbol Circuits
Beyond the basic circuit, there are more advanced Led Symbol Circuits that incorporate additional components and features. These include:
- Multiple LEDs: Circuits with multiple LEDs can create patterns or displays.
- Microcontrollers: Integrating microcontrollers like Arduino or Raspberry Pi allows for programmable control of LEDs.
- Dimmable LEDs: Using PWM (Pulse Width Modulation) to control the brightness of LEDs.
For example, a circuit with multiple LEDs can be designed to create a simple traffic light system. Each LED represents a different color (red, yellow, green), and a microcontroller can be programmed to control the sequence and timing of the lights.
Here is a basic outline of the components needed for a traffic light circuit:
- Three LEDs: Red, yellow, and green.
- Three Resistors: One for each LED.
- Microcontroller: Arduino or similar.
- Power Source: 5V or 12V depending on the microcontroller.
To create a dimmable LED circuit, you can use PWM to control the brightness. This involves connecting the LED to a microcontroller pin that supports PWM and writing a program to adjust the duty cycle of the PWM signal.
💡 Note: Ensure the microcontroller and power source are compatible with the LEDs and resistors used in the circuit.
Applications of LED Symbol Circuits
Led Symbol Circuits have a wide range of applications across various industries. Some common uses include:
- Indicators: LEDs are used as indicators in electronic devices, appliances, and control panels.
- Displays: LED displays are used in digital clocks, calculators, and large-scale advertising boards.
- Lighting: LEDs are increasingly used in lighting applications due to their energy efficiency and longevity.
- Automotive: LEDs are used in car headlights, taillights, and interior lighting.
In the automotive industry, LEDs are preferred for their durability and energy efficiency. They are used in headlights, taillights, and interior lighting, providing better visibility and reducing power consumption.
In lighting applications, LEDs are used in residential, commercial, and industrial settings. They offer long lifespans, reduced energy consumption, and minimal heat generation, making them an eco-friendly choice.
In summary, Led Symbol Circuits are versatile and essential in modern electronics. Understanding their components, design principles, and troubleshooting techniques is crucial for anyone working in electronics or circuit design.
By mastering the basics of LED circuits and exploring advanced applications, you can create innovative and efficient electronic devices. Whether you’re a hobbyist or a professional, the knowledge of Led Symbol Circuits will open up a world of possibilities in electronics.
