Led Resistance Calc

Understanding the concept of Led Resistance Calc is crucial for anyone working with electronics, especially when designing circuits that involve LEDs. LEDs, or Light Emitting Diodes, are widely used in various applications due to their efficiency and longevity. However, to ensure they function correctly and safely, it is essential to calculate the appropriate resistance for the circuit. This process, known as Led Resistance Calc, involves determining the correct resistor value to limit the current flowing through the LED, preventing it from burning out.

Table of Contents

Understanding LEDs and Resistance

Before diving into the Led Resistance Calc, it is important to understand the basics of LEDs and why resistance is necessary. LEDs are semiconductor devices that emit light when an electric current passes through them. Unlike traditional light bulbs, LEDs are polarity-sensitive, meaning they only conduct electricity in one direction. This characteristic is due to the p-n junction within the LED.

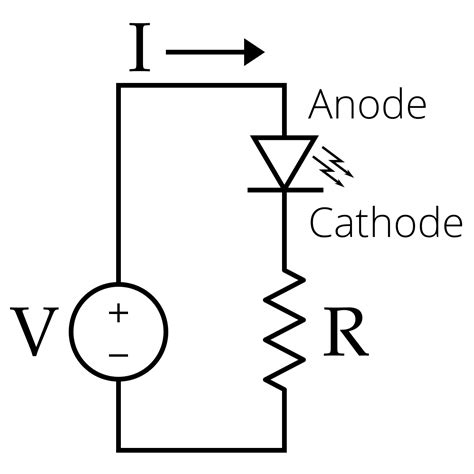

When an LED is connected to a power source, it allows current to flow through it. However, if the current is too high, the LED can overheat and be damaged. To control the current, a resistor is placed in series with the LED. The resistor limits the current to a safe level, ensuring the LED operates within its specified parameters.

Key Parameters for Led Resistance Calc

To perform an accurate Led Resistance Calc, you need to know several key parameters:

Forward Voltage (Vf): This is the voltage drop across the LED when it is conducting current. It varies depending on the color and type of LED.
Forward Current (If): This is the current that flows through the LED when it is operating. It is typically specified in the LED's datasheet.
Supply Voltage (Vs): This is the voltage provided by the power source.

These parameters are essential for calculating the resistor value needed to limit the current through the LED.

The Formula for Led Resistance Calc

The formula for Led Resistance Calc is derived from Ohm's Law, which states that the resistance (R) is equal to the voltage (V) divided by the current (I). In the context of an LED circuit, the formula is:

R = (Vs - Vf) / If

Where:

R is the resistance in ohms (Ω).
Vs is the supply voltage.
Vf is the forward voltage of the LED.
If is the forward current of the LED.

Let's break down the formula:

(Vs - Vf): This represents the voltage drop across the resistor. It is the difference between the supply voltage and the forward voltage of the LED.
/ If: This divides the voltage drop by the forward current to find the resistance value.

For example, if you have a supply voltage of 9V, an LED with a forward voltage of 2V, and a desired forward current of 20mA (0.02A), the calculation would be:

R = (9V - 2V) / 0.02A = 350Ω

Therefore, a 350Ω resistor would be suitable for this circuit.

Selecting the Right Resistor

Once you have calculated the resistor value using the Led Resistance Calc formula, the next step is to select an appropriate resistor. Resistors are available in various values and tolerances. It is essential to choose a resistor with a value close to the calculated value and a suitable power rating.

The power rating of a resistor indicates the maximum power it can dissipate without overheating. The power (P) dissipated by a resistor can be calculated using the formula:

P = I^2 * R

Where:

I is the current flowing through the resistor.
R is the resistance value.

For example, using the previous calculation with a 350Ω resistor and a current of 20mA (0.02A), the power dissipated would be:

P = (0.02A)^2 * 350Ω = 0.14W

Therefore, a resistor with a power rating of at least 0.14W (140mW) would be suitable. It is common to use resistors with higher power ratings to ensure safety and longevity.

Common Resistor Values and Tolerances

Resistors are available in standard values, often following the E-series standards. The most common series is the E12 series, which includes values like 100Ω, 120Ω, 150Ω, 180Ω, 220Ω, 270Ω, 330Ω, 390Ω, 470Ω, and 560Ω. These values are typically used in electronic circuits due to their availability and suitability for various applications.

Resistors also have tolerances, which indicate the acceptable variation from the nominal value. Common tolerances include:

5%: The resistor value can vary by ±5% from the nominal value.
10%: The resistor value can vary by ±10% from the nominal value.
1%: The resistor value can vary by ±1% from the nominal value (used in precision applications).

When selecting a resistor, it is essential to consider both the value and the tolerance to ensure the circuit operates correctly.

Practical Example of Led Resistance Calc

Let's go through a practical example to illustrate the Led Resistance Calc process. Suppose you have the following parameters:

Supply Voltage (Vs): 12V
Forward Voltage (Vf): 3.3V ( typical for a blue LED)
Forward Current (If): 25mA (0.025A)

Using the formula:

R = (Vs - Vf) / If

Substitute the values:

R = (12V - 3.3V) / 0.025A = 348Ω

Since standard resistor values are typically available in increments, you would choose a 330Ω resistor, which is close to the calculated value. This resistor would limit the current to approximately 25mA, ensuring the LED operates safely.

💡 Note: Always round up to the nearest standard resistor value to ensure the current is limited appropriately.

Using Online Calculators for Led Resistance Calc

While performing manual calculations is a valuable skill, online calculators can simplify the process. These tools allow you to input the supply voltage, forward voltage, and forward current, and they will provide the resistor value instantly. This can be particularly useful for quick calculations or when working with multiple LEDs in a circuit.

However, it is essential to understand the underlying principles of Led Resistance Calc to ensure accurate results and to troubleshoot any issues that may arise.

Troubleshooting Common Issues

Even with careful calculations, issues can occur in LED circuits. Here are some common problems and their solutions:

LED Not Lighting: If the LED does not light up, check the following:

Ensure the LED is connected correctly (polarity matters).
Verify the resistor value and ensure it is not open or shorted.
Check the power supply to ensure it is providing the correct voltage.

LED Too Bright or Dim: If the LED is too bright or dim, the resistor value may be incorrect. Recalculate the resistor value using the Led Resistance Calc formula and adjust accordingly.
LED Overheating: If the LED is overheating, it may be due to excessive current. Ensure the resistor value is correct and that the LED is operating within its specified parameters.

By following these troubleshooting steps, you can identify and resolve common issues in LED circuits.

💡 Note: Always double-check your calculations and connections to ensure the circuit operates safely and efficiently.

Advanced Considerations for Led Resistance Calc

For more complex circuits or specific applications, additional considerations may be necessary. These include:

Multiple LEDs in Series: When connecting multiple LEDs in series, the forward voltage (Vf) for each LED must be added together. The resistor value is then calculated based on the total forward voltage.
Multiple LEDs in Parallel: When connecting multiple LEDs in parallel, each LED requires its own resistor. The resistor value is calculated based on the individual forward voltage and current of each LED.
Pulse Width Modulation (PWM): PWM is a technique used to control the brightness of LEDs by rapidly switching the current on and off. When using PWM, the average current must be considered in the Led Resistance Calc to ensure the LED operates within its specified parameters.

These advanced considerations can help optimize LED circuits for specific applications and ensure they operate efficiently and safely.

In conclusion, understanding the concept of Led Resistance Calc is essential for anyone working with electronics. By knowing the key parameters, using the correct formula, and selecting the appropriate resistor, you can ensure your LED circuits operate safely and efficiently. Whether you are a hobbyist or a professional, mastering the Led Resistance Calc process will enhance your electronic design skills and enable you to create reliable and effective circuits.
