Understanding the fundamentals of electronics is crucial for anyone interested in the field, and one of the most basic yet essential components to grasp is the LED cathode and anode. LEDs, or Light Emitting Diodes, are semiconductor devices that emit light when an electric current passes through them. The cathode and anode are the two terminals of an LED, and understanding their roles is key to properly using and troubleshooting these components.

What is an LED?

An LED is a type of diode that emits light when activated. Unlike traditional incandescent bulbs, LEDs are more energy-efficient and have a longer lifespan. They are used in a wide range of applications, from indicator lights on electronic devices to large-scale lighting solutions. The basic structure of an LED includes a semiconductor material, typically made from compounds like gallium arsenide or gallium nitride, which emits light when electrons and holes recombine.

Understanding the LED Cathode and Anode

The LED cathode and anode are the two electrical terminals that allow current to flow through the diode. The anode is the positive terminal, and the cathode is the negative terminal. When a voltage is applied across these terminals, with the anode at a higher potential than the cathode, electrons flow from the cathode to the anode, causing the LED to emit light.

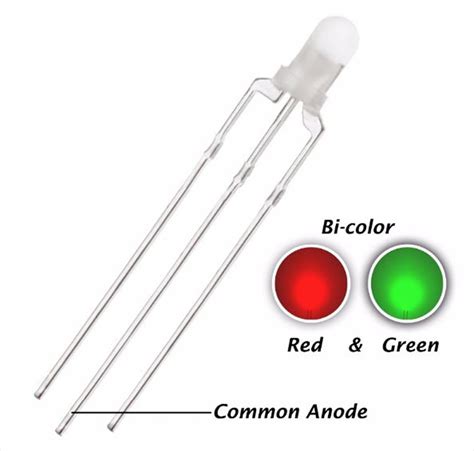

Identifying the Cathode and Anode

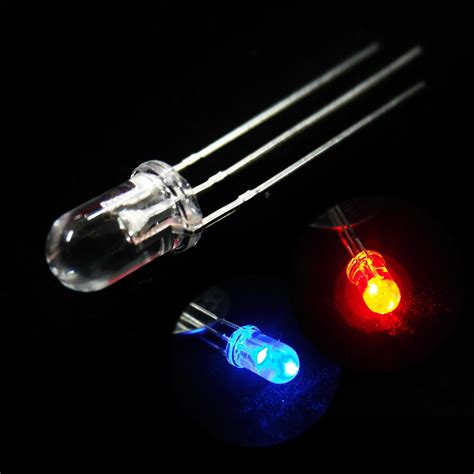

Identifying the LED cathode and anode is straightforward once you know what to look for. Most LEDs have a flat edge on one side, which indicates the cathode. Additionally, the longer leg of the LED is typically the anode. Here are some common methods to identify the terminals:

  • Flat Edge: The flat edge on the LED body is the cathode.
  • Leg Length: The longer leg is usually the anode.
  • Color Coding: Some LEDs have color-coded bands or markings to indicate the cathode and anode.

How LEDs Work

To understand how LEDs work, it’s important to know the basics of semiconductor physics. An LED consists of a p-n junction, where p-type and n-type semiconductor materials are joined. When a voltage is applied, electrons from the n-type material and holes from the p-type material recombine at the junction, releasing energy in the form of photons (light).

The color of the light emitted depends on the type of semiconductor material used. For example, gallium arsenide emits red light, while gallium nitride emits blue light. The efficiency of an LED is determined by how well the semiconductor material converts electrical energy into light.

Circuit Design with LEDs

Designing a circuit with LEDs involves understanding the LED cathode and anode and ensuring proper current flow. Here are the steps to design a basic LED circuit:

  • Select the LED: Choose an LED based on the desired color and brightness.
  • Determine the Voltage and Current: Check the datasheet for the forward voltage (Vf) and forward current (If) of the LED.
  • Calculate the Resistor Value: Use Ohm’s law to calculate the resistor value needed to limit the current through the LED. The formula is R = (Vs - Vf) / If, where Vs is the supply voltage.
  • Connect the Components: Connect the anode of the LED to the positive supply through the resistor, and the cathode to the negative supply (ground).

Here is an example of a simple LED circuit:

Component Value
LED Red LED (Vf = 2V, If = 20mA)
Resistor 150 ohms
Power Supply 5V

In this example, the resistor value is calculated as follows:

R = (5V - 2V) / 0.02A = 150 ohms

💡 Note: Always double-check the polarity of the LED before powering the circuit to avoid damaging the component.

Common LED Configurations

LEDs can be configured in various ways to achieve different lighting effects. Some common configurations include:

  • Single LED: A single LED connected to a power source with a current-limiting resistor.
  • Series Configuration: Multiple LEDs connected in series, sharing the same current. The total voltage drop across the LEDs must be considered.
  • Parallel Configuration: Multiple LEDs connected in parallel, each with its own current-limiting resistor. This configuration allows for independent control of each LED.
  • Matrix Configuration: LEDs arranged in a grid pattern, often used in displays and signage. Each LED can be individually addressed to create complex patterns and images.

Troubleshooting LED Circuits

When troubleshooting LED circuits, it’s essential to check the LED cathode and anode connections and ensure proper polarity. Here are some common issues and solutions:

  • LED Not Lighting: Check the polarity of the LED. Ensure the anode is connected to the positive supply and the cathode to the negative supply.
  • LED Too Dim: Verify the resistor value. A higher resistance will reduce the current flow, making the LED dimmer.
  • LED Too Bright: Check the resistor value. A lower resistance will increase the current flow, making the LED brighter. Ensure the current does not exceed the LED’s maximum rating.
  • LED Flickering: Inspect the power supply. Flickering can be caused by an unstable voltage source. Ensure the supply voltage is within the LED’s operating range.

💡 Note: Always use a multimeter to measure the voltage and current in the circuit to ensure accurate troubleshooting.

Applications of LEDs

LEDs have a wide range of applications due to their efficiency, durability, and versatility. Some common applications include:

  • Indicators: LEDs are used as indicator lights in electronic devices, such as power buttons, status indicators, and warning lights.
  • Lighting: LEDs are used in various lighting solutions, from residential and commercial lighting to automotive headlights and taillights.

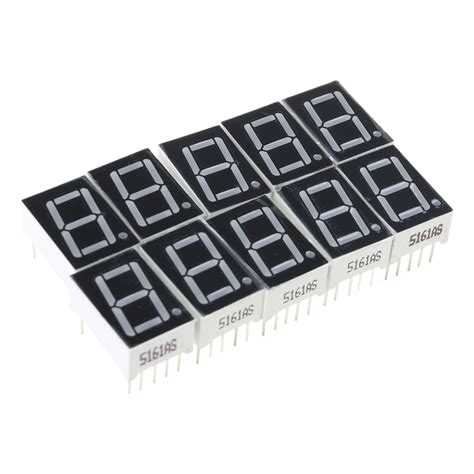

  • Displays: LEDs are used in displays, such as digital clocks, calculators, and large-scale video screens.
  • Signage: LEDs are used in signage for advertising, information displays, and decorative purposes.

The field of LED technology is continually evolving, with new advancements and innovations emerging regularly. Some future trends in LED technology include:

  • High-Efficiency LEDs: Research is focused on developing LEDs with higher efficiency, reducing energy consumption and costs.
  • Flexible LEDs: Flexible LED displays are being developed for use in wearable technology, curved screens, and other innovative applications.
  • Smart LEDs: LEDs integrated with smart technology, such as IoT (Internet of Things) capabilities, allowing for remote control and automation.
  • Organic LEDs (OLEDs): OLEDs use organic materials to emit light, offering advantages such as flexibility, thinness, and high contrast ratios.

As LED technology continues to advance, the possibilities for new applications and innovations are endless. Understanding the fundamentals of LED cathode and anode is the first step in exploring this exciting field.

In conclusion, LEDs are versatile and efficient components that play a crucial role in modern electronics. Understanding the LED cathode and anode is essential for designing and troubleshooting LED circuits. Whether you’re a hobbyist or a professional, mastering the basics of LEDs will open up a world of possibilities in electronics and lighting solutions. The future of LED technology is bright, with ongoing advancements promising even more efficient and innovative applications.
