Understanding the nuances of cardiac conduction abnormalities is crucial for healthcare professionals, particularly when it comes to differentiating between Left Bundle Branch Block (LBBB) and Right Bundle Branch Block (RBBB). These conditions, while both involving the heart's electrical conduction system, have distinct characteristics and implications for patient management. This post delves into the intricacies of LBBB vs RBBB, exploring their causes, diagnostic criteria, clinical significance, and management strategies.
Understanding Bundle Branch Blocks
Bundle branch blocks are disorders of the heart's electrical conduction system. The heart's electrical impulses travel through the atrioventricular (AV) node and then through the bundle of His, which splits into the left and right bundle branches. These branches further divide into smaller fibers that conduct the electrical impulses to the ventricles, causing them to contract and pump blood.
When there is a block in either the left or right bundle branch, the electrical impulses are delayed or blocked, leading to abnormal ventricular activation. This results in characteristic changes on an electrocardiogram (ECG), which are essential for diagnosing LBBB vs RBBB.
Left Bundle Branch Block (LBBB)
LBBB occurs when the electrical impulses are delayed or blocked in the left bundle branch. This condition can be further classified into complete LBBB and incomplete LBBB. Complete LBBB is characterized by a wide QRS complex (>120 ms) with a specific morphology, while incomplete LBBB shows a less pronounced widening of the QRS complex.
Causes of LBBB:
- Coronary artery disease
- Hypertension
- Cardiomyopathy
- Valvular heart disease
- Electrolyte imbalances
- Medications (e.g., antiarrhythmic drugs)

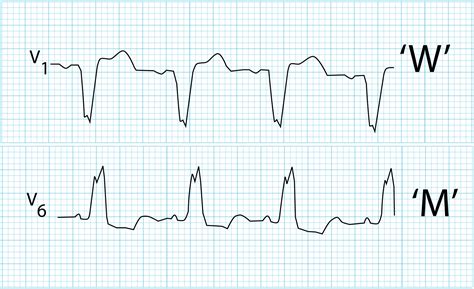

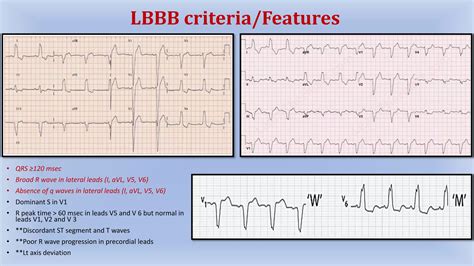

Diagnostic Criteria for LBBB:
- QRS duration >120 ms
- Absence of Q waves in leads I, aVL, V5, and V6
- R wave peak time >60 ms in leads V5 and V6
- ST-segment and T-wave changes that are discordant with the QRS complex
Clinical Significance of LBBB:
- LBBB can be a marker of underlying cardiac disease, particularly coronary artery disease.
- It is associated with an increased risk of heart failure and sudden cardiac death.
- LBBB can complicate the interpretation of ECG changes in the setting of acute coronary syndrome.
Right Bundle Branch Block (RBBB)
RBBB occurs when the electrical impulses are delayed or blocked in the right bundle branch. Similar to LBBB, RBBB can be complete or incomplete. Complete RBBB is characterized by a wide QRS complex (>120 ms) with a specific morphology, while incomplete RBBB shows a less pronounced widening of the QRS complex.
Causes of RBBB:
- Coronary artery disease
- Pulmonary hypertension
- Pulmonary embolism
- Right ventricular hypertrophy
- Electrolyte imbalances
- Medications (e.g., antiarrhythmic drugs)

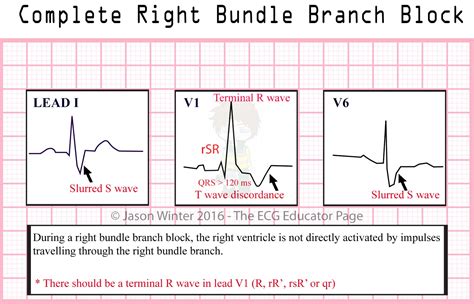

Diagnostic Criteria for RBBB:
- QRS duration >120 ms
- RSR' pattern in leads V1 and V2 (rsR')
- Wide S wave in leads I and V6
- ST-segment and T-wave changes that are discordant with the QRS complex
Clinical Significance of RBBB:
- RBBB can be a marker of underlying pulmonary or cardiac disease.
- It is often benign in otherwise healthy individuals but can be associated with increased mortality in patients with structural heart disease.
- RBBB can complicate the interpretation of ECG changes in the setting of acute pulmonary embolism.

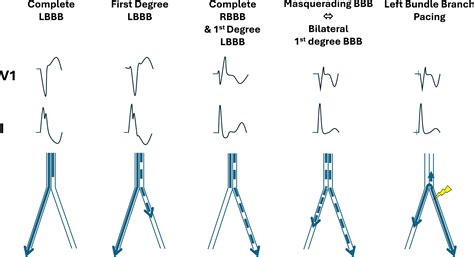

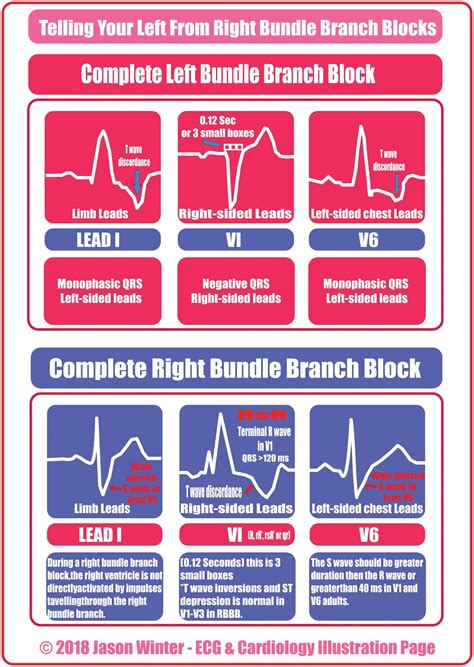

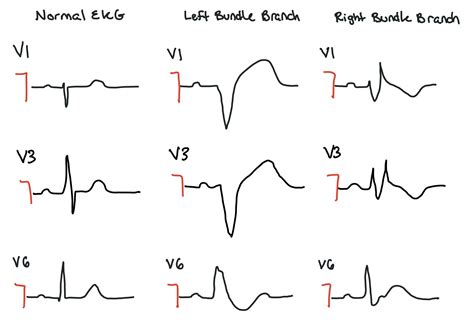

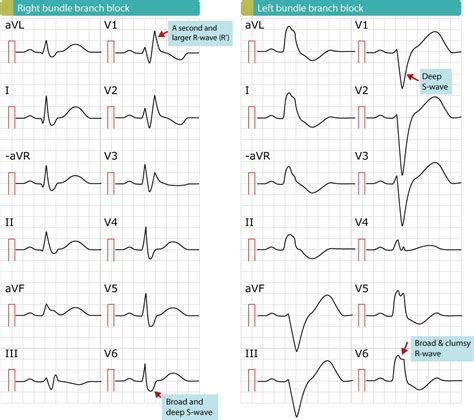

Differentiating LBBB vs RBBB
Differentiating between LBBB and RBBB is essential for accurate diagnosis and management. The key differences lie in the ECG morphology and the clinical context. Here is a comparison of the two conditions:
| Feature | LBBB | RBBB |
|---|---|---|
| QRS Duration | >120 ms | >120 ms |
| QRS Morphology | Wide, notched QRS complex with a specific morphology | RSR' pattern in leads V1 and V2 |
| ST-T Wave Changes | Discordant with the QRS complex | Discordant with the QRS complex |
| Common Causes | Coronary artery disease, hypertension, cardiomyopathy | Pulmonary hypertension, pulmonary embolism, right ventricular hypertrophy |
| Clinical Significance | Marker of underlying cardiac disease, increased risk of heart failure and sudden cardiac death | Marker of underlying pulmonary or cardiac disease, often benign but can be associated with increased mortality |
Important Notes on LBBB vs RBBB:
- LBBB is more commonly associated with structural heart disease, particularly coronary artery disease.
- RBBB is often seen in conditions affecting the right ventricle or pulmonary circulation.
- The presence of LBBB or RBBB can complicate the interpretation of ECG changes in acute settings, such as myocardial infarction or pulmonary embolism.
📝 Note: The diagnosis of LBBB vs RBBB should be made in the context of the patient's clinical presentation and other diagnostic tests, not solely based on ECG findings.
Management of Bundle Branch Blocks
The management of LBBB and RBBB depends on the underlying cause and the presence of symptoms. In many cases, no specific treatment is required for asymptomatic patients with bundle branch blocks. However, in symptomatic patients or those with underlying cardiac disease, management strategies may include:
- Treatment of the underlying cause (e.g., coronary artery disease, pulmonary hypertension)
- Medications to manage symptoms (e.g., diuretics for heart failure, antiarrhythmic drugs for arrhythmias)
- Device therapy (e.g., pacemakers, implantable cardioverter-defibrillators) in selected patients
- Lifestyle modifications (e.g., smoking cessation, exercise, diet)
Important Notes on Management:
- Asymptomatic patients with bundle branch blocks may not require specific treatment but should be monitored for the development of symptoms or underlying cardiac disease.
- Symptomatic patients or those with underlying cardiac disease may benefit from device therapy, such as pacemakers or implantable cardioverter-defibrillators.
- Lifestyle modifications, such as smoking cessation and regular exercise, can help manage underlying cardiac disease and improve overall cardiovascular health.
📝 Note: The management of LBBB and RBBB should be individualized based on the patient's clinical presentation, underlying cardiac disease, and symptoms.
Prognosis of Bundle Branch Blocks
The prognosis of LBBB and RBBB varies depending on the underlying cause and the presence of symptoms. In general, asymptomatic patients with bundle branch blocks have a good prognosis. However, patients with underlying cardiac disease or symptoms may have a poorer prognosis and require more aggressive management.
Prognostic Factors:
- Underlying cardiac disease (e.g., coronary artery disease, cardiomyopathy)
- Presence of symptoms (e.g., chest pain, shortness of breath, syncope)
- Response to treatment (e.g., medications, device therapy)
- Lifestyle factors (e.g., smoking, exercise, diet)
Important Notes on Prognosis:
- Asymptomatic patients with bundle branch blocks generally have a good prognosis.
- Patients with underlying cardiac disease or symptoms may have a poorer prognosis and require more aggressive management.
- Lifestyle modifications, such as smoking cessation and regular exercise, can improve overall cardiovascular health and prognosis.
📝 Note: The prognosis of LBBB and RBBB should be individualized based on the patient's clinical presentation, underlying cardiac disease, and response to treatment.
In summary, understanding the differences between LBBB and RBBB is crucial for accurate diagnosis and management. While both conditions involve abnormalities in the heart’s electrical conduction system, they have distinct causes, diagnostic criteria, and clinical significance. Proper management and monitoring can improve outcomes for patients with these conditions.
