In the ever-evolving landscape of network infrastructure, the Layer 3 Switch stands out as a pivotal component. These advanced networking devices combine the functionalities of traditional switches and routers, offering enhanced performance, scalability, and flexibility. This blog post delves into the intricacies of Layer 3 Switches, exploring their features, benefits, and practical applications in modern networks.
Understanding Layer 3 Switches

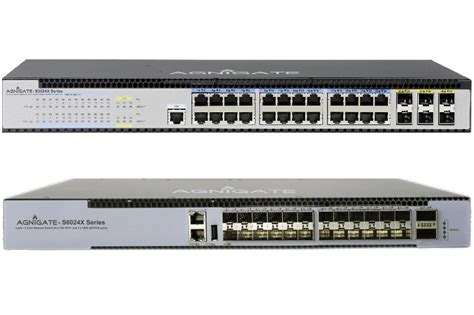

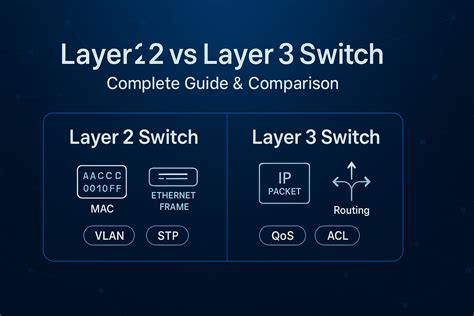

A Layer 3 Switch operates at both the data link layer (Layer 2) and the network layer (Layer 3) of the OSI model. Unlike traditional Layer 2 switches, which forward traffic based on MAC addresses, Layer 3 Switches use IP addresses to make forwarding decisions. This capability allows them to perform routing functions, making them ideal for large, complex networks.
Key Features of Layer 3 Switches
Layer 3 Switches come with a host of features that set them apart from traditional switches and routers. Some of the key features include:
- Routing Capabilities: Layer 3 Switches can perform routing functions, allowing them to forward packets based on IP addresses. This eliminates the need for separate routers in many network configurations.
- High Performance: These switches offer high-speed forwarding rates, making them suitable for high-bandwidth applications.
- Scalability: Layer 3 Switches can handle a large number of ports and support extensive VLAN configurations, making them scalable for growing networks.
- Quality of Service (QoS): They provide advanced QoS features to prioritize traffic and ensure optimal performance for critical applications.
- Security Features: Layer 3 Switches offer robust security features, including Access Control Lists (ACLs), VLAN segmentation, and port security.
Benefits of Using Layer 3 Switches
Implementing Layer 3 Switches in a network infrastructure offers numerous benefits:
- Cost Efficiency: By combining the functions of switches and routers, Layer 3 Switches reduce the need for separate devices, lowering overall costs.
- Improved Performance: The high-speed forwarding capabilities of Layer 3 Switches enhance network performance, reducing latency and improving data throughput.
- Enhanced Security: Advanced security features help protect the network from unauthorized access and potential threats.
- Simplified Management: Layer 3 Switches simplify network management by consolidating routing and switching functions into a single device.
- Scalability: These switches can easily scale to accommodate growing network demands, making them a future-proof investment.
Applications of Layer 3 Switches
Layer 3 Switches are used in a variety of network environments, including:
- Enterprise Networks: Large enterprises benefit from the scalability and performance of Layer 3 Switches, which can handle extensive VLAN configurations and high-bandwidth applications.
- Data Centers: Data centers require high-speed, low-latency networking solutions. Layer 3 Switches provide the necessary performance and scalability for data center environments.
- Service Provider Networks: Service providers use Layer 3 Switches to offer advanced networking services, such as VPNs and MPLS, to their customers.

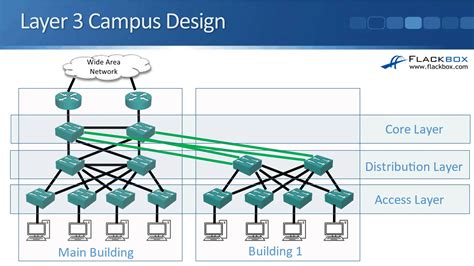

- Campus Networks: Educational institutions and corporate campuses use Layer 3 Switches to manage complex network topologies and ensure reliable connectivity across multiple buildings.
Configuring a Layer 3 Switch
Configuring a Layer 3 Switch involves several steps, including setting up VLANs, configuring IP routing, and implementing security features. Below is a basic guide to configuring a Layer 3 Switch:
Step 1: Access the Switch
Connect to the Layer 3 Switch using a console cable or SSH. Log in with the appropriate credentials.
Step 2: Configure VLANs
Create and configure VLANs to segment the network and improve security.
Switch# configure terminal
Switch(config)# vlan 10
Switch(config-vlan)# name Sales
Switch(config-vlan)# exit
Switch(config)# vlan 20
Switch(config-vlan)# name Marketing
Switch(config-vlan)# exit
Step 3: Assign Ports to VLANs
Assign physical ports to the created VLANs.
Switch(config)# interface FastEthernet0/1
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 10
Switch(config-if)# exit
Switch(config)# interface FastEthernet0/2
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 20
Switch(config-if)# exit
Step 4: Configure IP Routing
Enable IP routing and configure IP addresses on the VLAN interfaces.
Switch(config)# ip routing
Switch(config)# interface vlan 10
Switch(config-if)# ip address 192.168.10.1 255.255.255.0
Switch(config-if)# no shutdown
Switch(config-if)# exit
Switch(config)# interface vlan 20
Switch(config-if)# ip address 192.168.20.1 255.255.255.0
Switch(config-if)# no shutdown
Switch(config-if)# exit
Step 5: Implement Security Features
Configure security features such as ACLs and port security.
Switch(config)# access-list 100 permit ip any any
Switch(config)# interface FastEthernet0/1
Switch(config-if)# ip access-group 100 in
Switch(config-if)# exit
Switch(config)# interface FastEthernet0/1
Switch(config-if)# switchport port-security
Switch(config-if)# switchport port-security maximum 2
Switch(config-if)# switchport port-security mac-address sticky
Switch(config-if)# exit
đź”’ Note: Always ensure that your configuration aligns with your network's security policies and compliance requirements.
Comparing Layer 3 Switches with Routers
While Layer 3 Switches and routers share some similarities, they have distinct differences. Here's a comparison:
| Feature | Layer 3 Switch | Router |
|---|---|---|
| Primary Function | Combines switching and routing | Primarily routing |
| Forwarding Speed | High-speed forwarding | Slower forwarding compared to switches |
| Port Density | High port density | Lower port density |
| Cost | Generally more expensive | Generally less expensive |
| Use Cases | Large enterprise networks, data centers | Small to medium networks, WAN connections |
Future Trends in Layer 3 Switching
The technology behind Layer 3 Switches continues to evolve, driven by the increasing demands of modern networks. Some of the future trends include:
- Software-Defined Networking (SDN): SDN enables dynamic network configuration and management, enhancing the flexibility and efficiency of Layer 3 Switches.
- Network Automation: Automation tools and protocols, such as Ansible and NETCONF, are being integrated into Layer 3 Switches to streamline network management.
- AI and Machine Learning: AI and machine learning algorithms are being used to optimize network performance, detect anomalies, and enhance security.
- 5G and IoT Integration: As 5G and IoT technologies become more prevalent, Layer 3 Switches will play a crucial role in supporting the increased bandwidth and connectivity requirements.
Layer 3 Switches are poised to remain a cornerstone of modern network infrastructure, adapting to new technologies and evolving network demands.
In conclusion, Layer 3 Switches offer a powerful combination of switching and routing capabilities, making them an essential component in modern network architectures. Their ability to handle high-speed forwarding, support extensive VLAN configurations, and provide advanced security features makes them ideal for large enterprises, data centers, and service provider networks. As network technologies continue to evolve, Layer 3 Switches will remain at the forefront, driving innovation and efficiency in network infrastructure.
