Law Of Malus

Understanding the behavior of light as it interacts with various materials is a fundamental aspect of optics. One of the key principles that governs this interaction is the Law of Malus. This law describes how the intensity of polarized light changes when it passes through a polarizing filter. By delving into the Law of Malus, we can gain insights into the properties of light and its applications in various fields, from photography to medical imaging.

Table of Contents

Understanding Polarized Light

Before diving into the Law of Malus, it’s essential to understand what polarized light is. Light is an electromagnetic wave that oscillates in multiple planes perpendicular to its direction of travel. When light is polarized, its oscillations are confined to a single plane. This can occur naturally, such as when light reflects off a surface, or it can be achieved artificially using polarizing filters.

The Law of Malus Explained

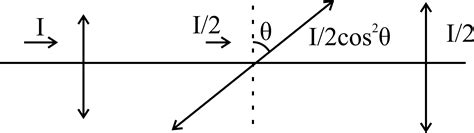

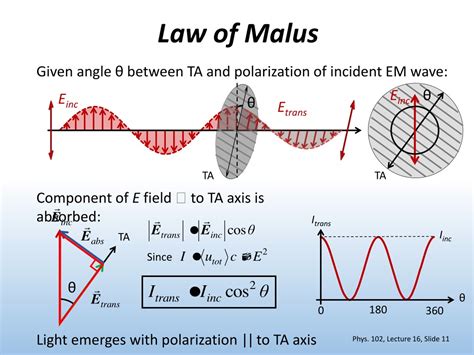

The Law of Malus states that when a beam of polarized light passes through a polarizing filter, the intensity of the transmitted light is proportional to the square of the cosine of the angle between the polarization direction of the incident light and the polarization axis of the filter. Mathematically, this can be expressed as:

I = I₀ cos²(θ)

Where:

I is the intensity of the transmitted light.
I₀ is the intensity of the incident light.
θ is the angle between the polarization direction of the incident light and the polarization axis of the filter.

This relationship shows that the intensity of the transmitted light varies with the angle θ. When θ is 0 degrees, the intensity is maximized, and when θ is 90 degrees, the intensity is minimized (zero).

Applications of the Law of Malus

The Law of Malus has numerous applications in various fields. Some of the most notable applications include:

Photography: Polarizing filters are commonly used in photography to reduce glare and enhance colors. By understanding the Law of Malus, photographers can adjust the polarization angle to achieve the desired effect.
Medical Imaging: Polarized light is used in medical imaging techniques such as optical coherence tomography (OCT) to visualize the internal structures of the eye and other tissues. The Law of Malus helps in interpreting the images obtained from these techniques.
Liquid Crystal Displays (LCDs): LCDs use polarized light to control the brightness and color of pixels. The Law of Malus is crucial in designing and optimizing the performance of LCDs.
Remote Sensing: Polarized light is used in remote sensing to study the properties of surfaces, such as the roughness of the ocean or the composition of clouds. The Law of Malus aids in analyzing the data obtained from these studies.

Experimental Verification of the Law of Malus

To verify the Law of Malus experimentally, you can set up a simple experiment using a polarized light source, a polarizing filter, and a light detector. Here are the steps to perform the experiment:

Set up a polarized light source, such as a laser or a polarized LED.
Place a polarizing filter in the path of the polarized light.
Rotate the polarizing filter to different angles and measure the intensity of the transmitted light using a light detector.
Record the intensity values for different angles and plot a graph of intensity versus the angle.

You should observe that the intensity of the transmitted light follows the cosine squared relationship predicted by the Law of Malus.

🔍 Note: Ensure that the polarizing filter and the light detector are properly aligned to avoid any errors in the measurements.

Practical Examples and Calculations

Let’s consider a practical example to illustrate the application of the Law of Malus. Suppose you have a polarized light source with an intensity of 100 units, and you want to determine the intensity of the light transmitted through a polarizing filter at an angle of 45 degrees.

Using the Law of Malus formula:

I = I₀ cos²(θ)

Substitute the given values:

I = 100 cos²(45°)

Since cos(45°) = 0.707, we have:

I = 100 * (0.707)²

I = 100 * 0.5

I = 50 units

Therefore, the intensity of the transmitted light is 50 units.

Advanced Topics in Polarization

Beyond the basic Law of Malus, there are advanced topics in polarization that delve deeper into the behavior of light. Some of these topics include:

Elliptical Polarization: This occurs when the electric field vector of the light wave traces out an ellipse as it propagates. Elliptical polarization can be described using the Stokes parameters, which provide a more comprehensive description of the polarization state.
Circular Polarization: In circular polarization, the electric field vector rotates around the direction of propagation, tracing out a circle. This type of polarization is used in various applications, such as in optical communication and in the study of chiral molecules.
Birefringence: This is a property of certain materials where the refractive index depends on the polarization and propagation direction of the light. Birefringent materials can split a beam of light into two polarized components, each traveling at a different speed.

Polarization in Nature

Polarization is not just a laboratory phenomenon; it also occurs naturally in various environments. Some examples include:

Sky Polarization: The sky appears polarized due to the scattering of sunlight by the Earth’s atmosphere. This polarization can be observed using polarizing filters and is used by some animals, such as bees, for navigation.
Reflection Polarization: When light reflects off a surface, such as water or glass, it becomes partially polarized. This is why polarizing filters are effective in reducing glare from reflective surfaces.
Birefringence in Crystals: Certain crystals, such as calcite, exhibit birefringence, where light is split into two polarized components. This property is used in optical devices like polarizing microscopes.

Polarization and Human Vision

Human eyes are not sensitive to the polarization of light, but some animals, such as bees and certain fish, can detect polarized light. This ability allows them to navigate and communicate more effectively. Understanding polarization and its effects can provide insights into the visual systems of these animals and inspire new technologies.

Polarization in Technology

Polarization plays a crucial role in various technologies, from displays to communication systems. Some key areas where polarization is applied include:

Liquid Crystal Displays (LCDs): LCDs use polarized light to control the brightness and color of pixels. The Law of Malus is essential in designing and optimizing the performance of LCDs.
Optical Communication: Polarization is used in optical communication systems to encode information. Polarization-division multiplexing (PDM) allows for the transmission of multiple signals over a single optical fiber, increasing the data capacity.
Medical Imaging: Polarized light is used in medical imaging techniques such as optical coherence tomography (OCT) to visualize the internal structures of the eye and other tissues. The Law of Malus helps in interpreting the images obtained from these techniques.

Polarization and Remote Sensing

Polarization is also used in remote sensing to study the properties of surfaces, such as the roughness of the ocean or the composition of clouds. By analyzing the polarization of reflected light, scientists can gain valuable information about the Earth’s environment. The Law of Malus aids in analyzing the data obtained from these studies.

Polarization and Astronomy

In astronomy, polarization is used to study the properties of celestial objects, such as stars and galaxies. By analyzing the polarization of starlight, astronomers can determine the magnetic fields and compositions of these objects. The Law of Malus is fundamental in understanding the polarization of light from distant stars and galaxies.

Polarization and Material Science

Polarization is also used in material science to study the properties of materials. By analyzing the polarization of light reflected or transmitted through a material, scientists can determine its optical properties, such as refractive index and birefringence. The Law of Malus is essential in interpreting the polarization data obtained from these studies.

Polarization and Art

Polarization has even found its way into the world of art. Artists use polarizing filters to create unique visual effects in their photographs and paintings. By manipulating the polarization of light, artists can enhance colors, reduce glare, and create striking contrasts. The Law of Malus provides the scientific basis for these artistic techniques.

Polarization and Education

Polarization is a fascinating topic that can be used to teach students about the properties of light and its interactions with matter. By conducting experiments and demonstrations, educators can help students understand the Law of Malus and its applications. This hands-on approach can make learning optics more engaging and meaningful.

Polarization and Future Research

Polarization is a rich field of study with many potential applications. Future research in polarization could lead to new technologies and discoveries in various fields, from medicine to astronomy. By continuing to explore the properties of polarized light and its interactions with matter, scientists can push the boundaries of our understanding of the natural world.

Polarized light and the Law of Malus are fundamental concepts in optics that have wide-ranging applications. From photography to medical imaging, polarization plays a crucial role in various technologies and scientific studies. By understanding the Law of Malus and its implications, we can gain insights into the behavior of light and its interactions with matter, paving the way for new discoveries and innovations.
