Laser Confocal Microscope

In the realm of scientific research and microscopy, the Laser Confocal Microscope stands out as a revolutionary tool that has significantly enhanced our ability to observe and analyze biological specimens. This advanced imaging technique has become indispensable in various fields, including cell biology, neuroscience, and materials science. By providing high-resolution, three-dimensional images, the Laser Confocal Microscope allows researchers to delve deeper into the intricate structures and functions of living cells and tissues.

Table of Contents

Understanding the Laser Confocal Microscope

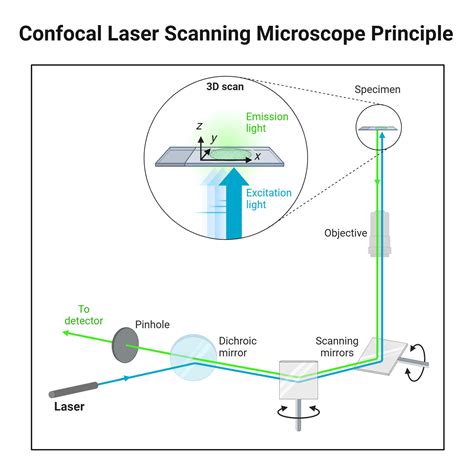

The Laser Confocal Microscope is a type of fluorescence microscope that uses laser light to illuminate a specimen. Unlike traditional microscopes, which capture images from the entire depth of the specimen, the Laser Confocal Microscope focuses on a single plane at a time. This selective illumination and detection process significantly reduces background noise and enhances image clarity.

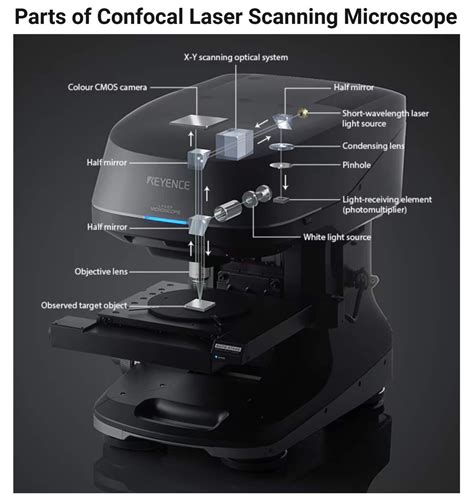

The key components of a Laser Confocal Microscope include:

Laser Light Source: Provides the illumination needed to excite fluorescent dyes within the specimen.
Pinhole Aperture: Allows only the light from the focal plane to pass through, blocking out-of-focus light.
Detectors: Capture the emitted fluorescence and convert it into digital images.
Scanning System: Moves the laser beam across the specimen to build up a detailed image.

Applications of the Laser Confocal Microscope

The versatility of the Laser Confocal Microscope makes it suitable for a wide range of applications. Some of the most notable uses include:

Cell Biology

In cell biology, the Laser Confocal Microscope is used to study the structure and function of cells. Researchers can visualize subcellular structures, such as organelles and cytoskeletal elements, with unprecedented clarity. This capability is crucial for understanding cellular processes like division, differentiation, and signaling.

Neuroscience

Neuroscience benefits greatly from the Laser Confocal Microscope's ability to image thick tissue sections. Scientists can map neural circuits, study synaptic connections, and observe the dynamics of neuronal activity. This detailed imaging helps in understanding brain function and the mechanisms underlying neurological disorders.

Materials Science

In materials science, the Laser Confocal Microscope is employed to analyze the microstructure of materials. Researchers can examine the distribution of phases, defects, and impurities within a material, providing insights into its mechanical and optical properties. This information is vital for developing new materials with enhanced performance characteristics.

Developmental Biology

Developmental biology researchers use the Laser Confocal Microscope to study the processes involved in embryonic development. By imaging live embryos, scientists can track cell movements, tissue formation, and gene expression patterns. This dynamic imaging helps in understanding the molecular and cellular mechanisms that govern development.

Advantages of the Laser Confocal Microscope

The Laser Confocal Microscope offers several advantages over traditional microscopy techniques:

High Resolution: Provides detailed images with high spatial resolution, allowing for the visualization of fine structures.
Optical Sectioning: Captures images from specific planes within the specimen, enabling three-dimensional reconstruction.
Reduced Background Noise: The pinhole aperture minimizes out-of-focus light, resulting in clearer images.
Live Cell Imaging: Allows for the observation of dynamic processes in living cells and tissues.
Multicolor Imaging: Can simultaneously detect multiple fluorescent labels, facilitating the study of complex biological systems.

Setting Up a Laser Confocal Microscope

Setting up a Laser Confocal Microscope involves several steps to ensure optimal performance. Here is a general guide to the setup process:

Preparation of the Specimen

Before imaging, the specimen must be prepared appropriately. This typically involves:

Fixation: Preserving the specimen's structure using chemical fixatives.
Staining: Labeling specific structures or molecules with fluorescent dyes.
Mounting: Placing the specimen on a microscope slide and covering it with a coverslip.

📝 Note: Proper specimen preparation is crucial for obtaining high-quality images. Ensure that the staining process is optimized for the specific structures or molecules of interest.

Calibration of the Microscope

Calibration involves adjusting the microscope's settings to achieve the best possible image quality. Key steps include:

Aligning the laser beam: Ensuring that the laser light is correctly focused on the specimen.
Adjusting the pinhole size: Optimizing the pinhole aperture to balance resolution and signal intensity.
Setting the detection parameters: Configuring the detectors to capture the emitted fluorescence efficiently.

📝 Note: Regular calibration is essential to maintain the microscope's performance. Follow the manufacturer's guidelines for calibration procedures.

Image Acquisition

Once the specimen is prepared and the microscope is calibrated, image acquisition can begin. This process involves:

Selecting the imaging mode: Choosing between single-plane imaging, z-stack acquisition, or time-lapse imaging.
Adjusting the scan speed: Balancing the speed of image acquisition with the desired resolution.
Collecting the data: Capturing the images and storing them for analysis.

📝 Note: The choice of imaging mode depends on the specific requirements of the experiment. For example, z-stack acquisition is useful for creating three-dimensional reconstructions, while time-lapse imaging is ideal for studying dynamic processes.

Data Analysis and Interpretation

After acquiring the images, the next step is data analysis and interpretation. This involves processing the raw data to extract meaningful information. Common techniques include:

Image Deconvolution: Enhancing image clarity by removing out-of-focus light.
3D Reconstruction: Creating three-dimensional models from a series of optical sections.
Quantitative Analysis: Measuring parameters such as fluorescence intensity, object size, and shape.
Colocalization Analysis: Determining the spatial relationship between different fluorescent labels.

Data analysis software plays a crucial role in this process. Popular tools include ImageJ, Fiji, and commercial software packages like Imaris and Bitplane. These programs offer a range of features for image processing, visualization, and quantitative analysis.

Challenges and Limitations

While the Laser Confocal Microscope offers numerous advantages, it also presents certain challenges and limitations:

Photobleaching: The intense laser light can cause fluorescent dyes to fade over time, limiting the duration of live cell imaging.
Phototoxicity: Prolonged exposure to laser light can damage living cells, affecting their viability and behavior.
Cost: Laser Confocal Microscopes are expensive to purchase and maintain, making them less accessible to some researchers.
Complexity: Operating and maintaining the microscope requires specialized training and expertise.

To mitigate these challenges, researchers often employ strategies such as using photostable dyes, optimizing imaging parameters, and sharing resources through core facilities.

Future Directions

The field of microscopy is continually evolving, and the Laser Confocal Microscope is no exception. Future advancements are likely to focus on improving resolution, speed, and sensitivity. Some emerging technologies and trends include:

Super-Resolution Microscopy: Techniques like STED (Stimulated Emission Depletion) and PALM (Photoactivated Localization Microscopy) offer even higher resolution than traditional confocal microscopy.
Multiphoton Microscopy: Uses longer-wavelength lasers to penetrate deeper into tissues, enabling imaging of thicker specimens.
Adaptive Optics: Corrects for aberrations in the optical path, improving image quality and resolution.
Artificial Intelligence: Machine learning algorithms are being developed to enhance image processing, analysis, and interpretation.

These advancements hold the promise of further revolutionizing the way we study biological systems, providing deeper insights into the complexities of life.

In conclusion, the Laser Confocal Microscope has become an indispensable tool in modern scientific research. Its ability to provide high-resolution, three-dimensional images has opened new avenues for exploring the intricacies of biological and materials systems. By understanding its applications, advantages, and limitations, researchers can harness the full potential of this powerful technology to drive innovation and discovery. The future of microscopy is bright, with ongoing developments poised to push the boundaries of what is possible in imaging and analysis.
