Understanding the difference between Kva and Kw is crucial for anyone involved in electrical engineering, power systems, or energy management. These two units, Kva and Kw, are fundamental in describing electrical power and energy, but they serve different purposes and have distinct applications. This post will delve into the definitions, differences, and practical applications of Kva and Kw, providing a comprehensive guide for professionals and enthusiasts alike.
What is Kva?
Kva, or kilovolt-amperes, is a unit used to measure apparent power in an electrical system. Apparent power is the product of the voltage and current in a circuit, regardless of the phase difference between them. It is a crucial metric in alternating current (AC) systems, where the power factor plays a significant role.
Apparent power is essential because it helps in sizing electrical equipment, such as transformers and cables, which need to handle the total current flow, not just the real power. The formula for calculating Kva is:
Kva = (Voltage * Current) / 1000
For example, if you have a system with a voltage of 230 volts and a current of 10 amperes, the apparent power would be:
Kva = (230 * 10) / 1000 = 2.3 Kva
What is Kw?

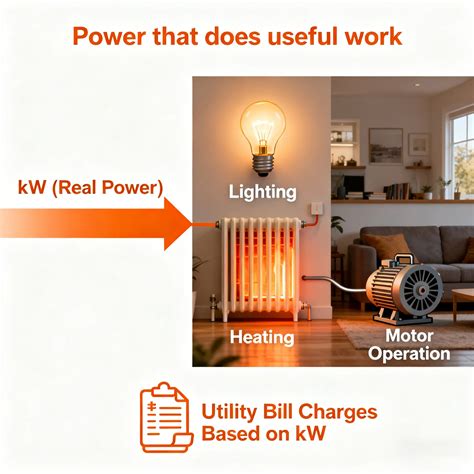

Kw, or kilowatts, is a unit used to measure real power or active power in an electrical system. Real power is the actual power that performs work, such as running a motor or lighting a bulb. It is the power that is converted into other forms of energy, such as heat, light, or mechanical energy.
Real power is calculated by multiplying the voltage, current, and power factor (cos φ) of the system. The formula for calculating Kw is:
Kw = (Voltage * Current * Power Factor) / 1000
For example, if you have a system with a voltage of 230 volts, a current of 10 amperes, and a power factor of 0.8, the real power would be:
Kw = (230 * 10 * 0.8) / 1000 = 1.84 Kw

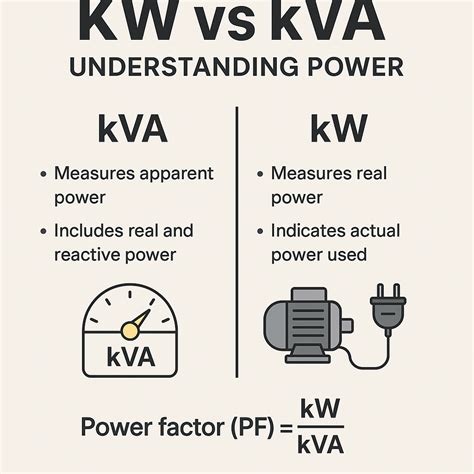

Key Differences Between Kva and Kw
Understanding the differences between Kva and Kw is essential for accurate power system analysis and design. Here are the key differences:
- Definition: Kva measures apparent power, while Kw measures real power.
- Calculation: Kva is calculated using voltage and current, while Kw includes the power factor.
- Application: Kva is used for sizing electrical equipment, while Kw is used for determining the actual power consumption.
- Power Factor: Kva does not account for the power factor, while Kw does.
Practical Applications of Kva and Kw
Both Kva and Kw have practical applications in various fields. Here are some examples:
Kva Applications
- Transformer Sizing: Kva is used to size transformers based on the total current flow, ensuring they can handle the apparent power.
- Cable Sizing: Kva helps in determining the appropriate cable size to handle the current flow without overheating.
- Generator Selection: Kva is used to select generators that can handle the apparent power requirements of a system.
Kw Applications
- Energy Consumption: Kw is used to measure the actual energy consumption of devices and systems, helping in energy management and cost calculation.
- Motor Sizing: Kw is used to size motors based on the real power required to perform a specific task.
- Battery Sizing: Kw is used to determine the battery size needed to provide a specific amount of real power over a given period.
Power Factor and Its Impact on Kva and Kw
The power factor is a critical concept in understanding the relationship between Kva and Kw. It is the ratio of real power (Kw) to apparent power (Kva) and is expressed as a percentage or a decimal value. The power factor can significantly impact the efficiency and cost of an electrical system.
For example, if a system has a power factor of 0.8, it means that only 80% of the apparent power is being used to perform useful work, while the remaining 20% is reactive power, which does not perform any work but still contributes to the apparent power.
Improving the power factor can lead to several benefits, including:
- Reduced energy costs
- Improved system efficiency
- Lower equipment sizing requirements
- Reduced carbon footprint
Power factor correction techniques, such as using capacitors or synchronous condensers, can help improve the power factor and optimize the use of Kva and Kw in a system.
Calculating Kva and Kw with Examples
To better understand the concepts of Kva and Kw, let's go through some examples of calculating these values in different scenarios.
Example 1: Calculating Kva and Kw for a Resistive Load
Consider a resistive load with a voltage of 230 volts and a current of 10 amperes. Since the power factor for a resistive load is 1 (unity), the calculations are as follows:
Kva = (230 * 10) / 1000 = 2.3 Kva
Kw = (230 * 10 * 1) / 1000 = 2.3 Kw
In this case, the apparent power (Kva) and real power (Kw) are the same because the power factor is 1.
Example 2: Calculating Kva and Kw for an Inductive Load
Consider an inductive load with a voltage of 230 volts, a current of 10 amperes, and a power factor of 0.8. The calculations are as follows:
Kva = (230 * 10) / 1000 = 2.3 Kva
Kw = (230 * 10 * 0.8) / 1000 = 1.84 Kw
In this case, the apparent power (Kva) is higher than the real power (Kw) due to the lower power factor.
Example 3: Calculating Kva and Kw for a Capacitive Load
Consider a capacitive load with a voltage of 230 volts, a current of 10 amperes, and a power factor of 0.6. The calculations are as follows:
Kva = (230 * 10) / 1000 = 2.3 Kva
Kw = (230 * 10 * 0.6) / 1000 = 1.38 Kw
In this case, the apparent power (Kva) is significantly higher than the real power (Kw) due to the low power factor.

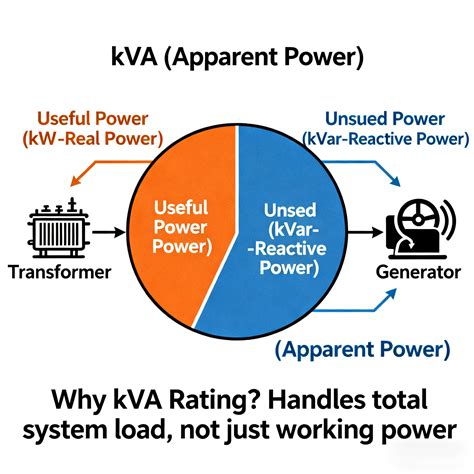

Understanding Reactive Power and Its Role in Kva and Kw
Reactive power, measured in kilovolt-amperes reactive (Kvar), is the power that oscillates between the source and the load without performing any useful work. It is a crucial component of apparent power and plays a significant role in the relationship between Kva and Kw.
Reactive power is caused by inductive and capacitive loads, such as motors, transformers, and capacitors. It can lead to increased current flow, higher losses, and reduced system efficiency if not managed properly.
The relationship between Kva, Kw, and Kvar can be expressed using the power triangle, as shown below:
| Kva | Kw | Kvar |
|---|---|---|
| Apparent Power | Real Power | Reactive Power |
| Kva = √(Kw² + Kvar²) | Kw = Kva * Power Factor | Kvar = √(Kva² - Kw²) |
Understanding the power triangle and the role of reactive power is essential for optimizing the use of Kva and Kw in an electrical system.
💡 Note: The power triangle is a graphical representation of the relationship between apparent power, real power, and reactive power. It helps in visualizing the power factor and the impact of reactive power on the system.
Importance of Kva and Kw in Power System Design
Kva and Kw play a crucial role in power system design, ensuring that the system can handle the required loads and operate efficiently. Here are some key considerations:
- Equipment Sizing: Kva is used to size electrical equipment, such as transformers, cables, and generators, based on the apparent power requirements.
- Power Factor Correction: Improving the power factor can reduce the apparent power (Kva) requirements, leading to lower equipment sizing and energy costs.
- Energy Management: Monitoring and managing Kw helps in optimizing energy consumption, reducing costs, and improving system efficiency.
- Load Balancing: Balancing the loads in a system can help optimize the use of Kva and Kw, ensuring that the system operates within its design limits.
By understanding and applying the concepts of Kva and Kw, engineers and designers can create more efficient, reliable, and cost-effective power systems.
In conclusion, Kva and Kw are fundamental units in electrical engineering and power systems. Understanding their definitions, differences, and practical applications is essential for accurate power system analysis, design, and optimization. By considering the power factor, reactive power, and the relationship between Kva and Kw, professionals can create more efficient and reliable electrical systems. Whether you are sizing equipment, managing energy consumption, or designing power systems, a solid understanding of Kva and Kw is crucial for success.
