Krebs Cycle Diagram

The Krebs cycle, also known as the citric acid cycle or TCA cycle, is a fundamental metabolic pathway that plays a crucial role in cellular respiration. Understanding the Krebs cycle diagram is essential for grasping how cells generate energy from the breakdown of nutrients. This cycle occurs in the mitochondria of eukaryotic cells and involves a series of chemical reactions that convert acetyl-CoA into carbon dioxide and water, while also producing energy-rich molecules like ATP and NADH.

Table of Contents

The Importance of the Krebs Cycle

The Krebs cycle is pivotal in the process of cellular respiration, which is the mechanism by which cells convert nutrients into usable energy. This cycle is central to both aerobic and anaerobic respiration, making it a cornerstone of metabolic processes. By understanding the Krebs cycle diagram, one can appreciate the intricate balance of chemical reactions that sustain life at the cellular level.

Key Components of the Krebs Cycle

The Krebs cycle involves several key components and intermediates. These include:

Acetyl-CoA: The entry point for the cycle, derived from the breakdown of carbohydrates, fats, and proteins.
Citrate: The first intermediate formed when acetyl-CoA combines with oxaloacetate.
Isocitrate: Formed from citrate through the action of aconitase.
α-Ketoglutarate: Produced from isocitrate and further converted to succinyl-CoA.
Succinyl-CoA: Converts to succinate, releasing a molecule of GTP (which can be converted to ATP).
Succinate: Oxidized to fumarate, producing FADH2.
Fumarate: Hydrated to malate.
Malate: Oxidized to oxaloacetate, producing NADH.
Oxaloacetate: Regenerated to combine with another acetyl-CoA, continuing the cycle.

Understanding the Krebs Cycle Diagram

The Krebs cycle diagram visually represents the sequence of reactions that occur within the mitochondria. Each step in the cycle is catalyzed by specific enzymes, ensuring the efficient conversion of substrates to products. The diagram typically includes:

The entry of acetyl-CoA into the cycle.
The formation of citrate from acetyl-CoA and oxaloacetate.
The series of reactions that convert citrate back to oxaloacetate.
The production of energy-rich molecules like ATP, NADH, and FADH2.
The release of carbon dioxide as a byproduct.

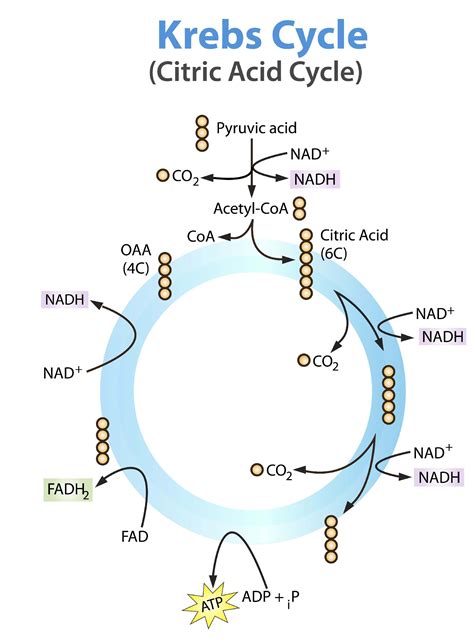

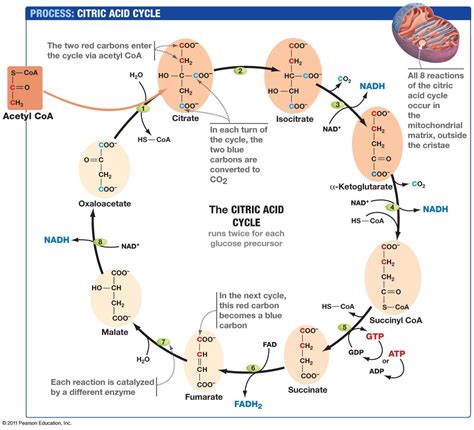

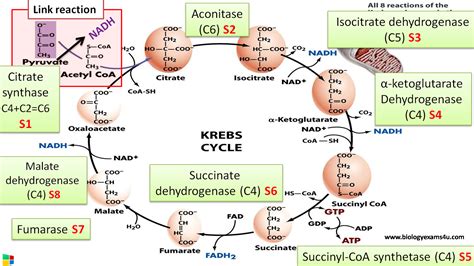

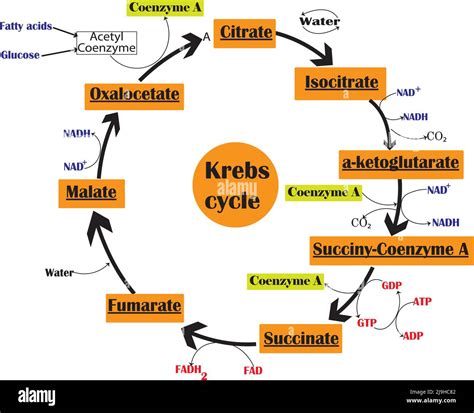

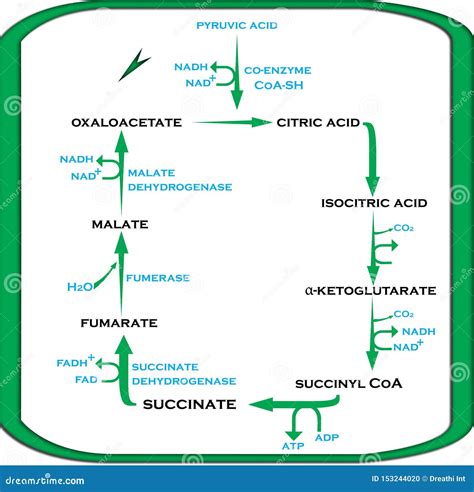

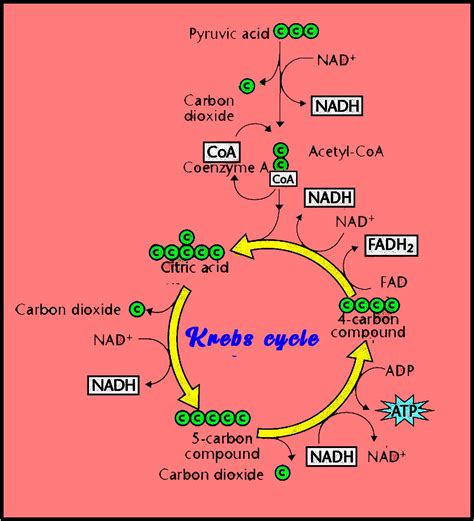

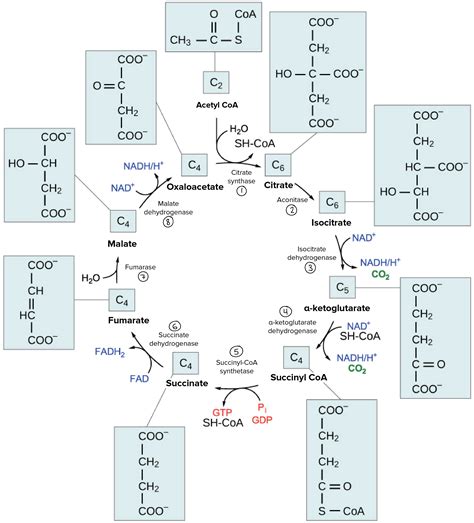

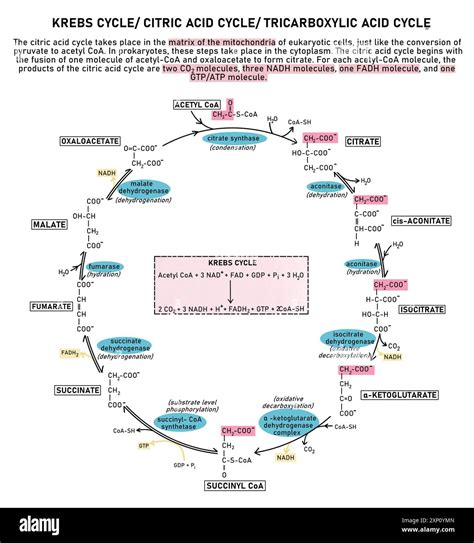

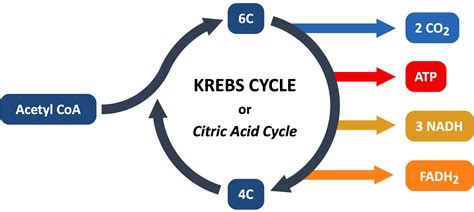

Here is a simplified Krebs cycle diagram:

Step-by-Step Breakdown of the Krebs Cycle

The Krebs cycle can be broken down into a series of steps, each involving specific enzymes and intermediates. Here is a detailed breakdown:

Step 1: Formation of Citrate

The cycle begins with the condensation of acetyl-CoA with oxaloacetate to form citrate. This reaction is catalyzed by the enzyme citrate synthase.

Step 2: Isomerization of Citrate to Isocitrate

Citrate is isomerized to isocitrate through the action of aconitase. This step involves the formation of an intermediate called cis-aconitate.

Step 3: Oxidative Decarboxylation of Isocitrate

Isocitrate is oxidized and decarboxylated to form α-ketoglutarate. This reaction is catalyzed by isocitrate dehydrogenase and produces NADH and carbon dioxide.

Step 4: Oxidative Decarboxylation of α-Ketoglutarate

α-Ketoglutarate is further oxidized and decarboxylated to form succinyl-CoA. This step is catalyzed by α-ketoglutarate dehydrogenase and produces NADH and carbon dioxide.

Step 5: Conversion of Succinyl-CoA to Succinate

Succinyl-CoA is converted to succinate, releasing a molecule of GTP (which can be converted to ATP). This reaction is catalyzed by succinyl-CoA synthetase.

Step 6: Oxidation of Succinate to Fumarate

Succinate is oxidized to fumarate, producing FADH2. This reaction is catalyzed by succinate dehydrogenase.

Step 7: Hydration of Fumarate to Malate

Fumarate is hydrated to form malate. This reaction is catalyzed by fumarase.

Step 8: Oxidation of Malate to Oxaloacetate

Malate is oxidized to oxaloacetate, producing NADH. This reaction is catalyzed by malate dehydrogenase.

🔍 Note: The Krebs cycle is tightly regulated to ensure that the cell maintains a balance between energy production and consumption. Enzymes involved in the cycle are subject to feedback inhibition, ensuring that the cycle does not produce excess intermediates.

Energy Production in the Krebs Cycle

The Krebs cycle is a major source of energy for the cell. Through a series of redox reactions, the cycle produces several energy-rich molecules:

ATP: Directly produced from GTP in the conversion of succinyl-CoA to succinate.
NADH: Produced in several steps, including the oxidation of isocitrate, α-ketoglutarate, and malate.
FADH2: Produced in the oxidation of succinate to fumarate.

These energy-rich molecules are then used in the electron transport chain to produce additional ATP, making the Krebs cycle a critical component of cellular respiration.

Regulation of the Krebs Cycle

The Krebs cycle is tightly regulated to ensure that the cell can respond to changing energy demands. Key regulatory points include:

Citrate Synthase: The enzyme that catalyzes the entry of acetyl-CoA into the cycle. It is inhibited by high levels of ATP and NADH.
Isocitrate Dehydrogenase: Regulated by the availability of ADP and NAD+.
α-Ketoglutarate Dehydrogenase: Inhibited by high levels of NADH and succinyl-CoA.

These regulatory mechanisms ensure that the cycle operates efficiently and responds to the cell's energy needs.

The Role of the Krebs Cycle in Metabolism

The Krebs cycle plays a central role in metabolism, linking various metabolic pathways. It is involved in:

Carbohydrate Metabolism: Glucose is broken down to pyruvate, which is converted to acetyl-CoA and enters the Krebs cycle.
Fat Metabolism: Fatty acids are broken down to acetyl-CoA, which enters the Krebs cycle.
Protein Metabolism: Amino acids can be converted to intermediates of the Krebs cycle, such as α-ketoglutarate and oxaloacetate.

This interconnectedness allows the cell to efficiently utilize different nutrients for energy production.

Clinical Significance of the Krebs Cycle

Understanding the Krebs cycle has significant clinical implications. Disorders affecting the cycle can lead to various metabolic diseases. For example:

Mitochondrial Diseases: Defects in the enzymes of the Krebs cycle can lead to mitochondrial diseases, which affect energy production in cells.
Cancer: Cancer cells often have altered metabolism, including changes in the Krebs cycle, to support rapid growth and proliferation.
Neurological Disorders: Dysfunction in the Krebs cycle has been linked to neurological disorders, such as Alzheimer’s disease and Parkinson’s disease.

Research into the Krebs cycle continues to provide insights into these and other diseases, paving the way for new therapeutic strategies.

Future Directions in Krebs Cycle Research

The study of the Krebs cycle is an active area of research, with ongoing efforts to understand its regulation and role in health and disease. Future directions include:

Enzyme Regulation: Investigating the mechanisms that regulate the enzymes of the Krebs cycle to identify potential targets for therapeutic intervention.
Metabolic Pathways: Exploring the interconnectedness of the Krebs cycle with other metabolic pathways to understand how cells adapt to different nutritional states.
Disease Models: Developing animal and cellular models to study the role of the Krebs cycle in various diseases, including cancer and neurodegenerative disorders.

These research efforts aim to deepen our understanding of the Krebs cycle and its implications for human health.

In summary, the Krebs cycle is a fundamental metabolic pathway that plays a crucial role in cellular respiration. By understanding the Krebs cycle diagram and the series of reactions it involves, we can appreciate the intricate balance of chemical processes that sustain life at the cellular level. The cycle’s importance in energy production, regulation, and its role in various metabolic pathways make it a cornerstone of cellular biology. Ongoing research continues to uncover new insights into the Krebs cycle, paving the way for advancements in our understanding of health and disease.
