Jump starting a car can be a lifesaver when you find yourself with a dead battery. Whether you're a seasoned mechanic or a novice, understanding the proper Jumper Cable Setup is crucial for safely and effectively jump-starting your vehicle. This guide will walk you through the steps to ensure you can handle this common situation with confidence.
Understanding Jumper Cables

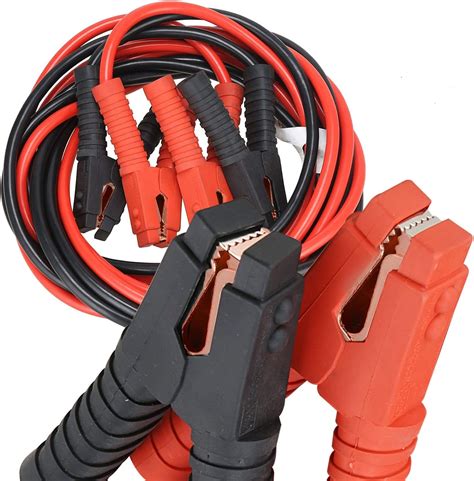

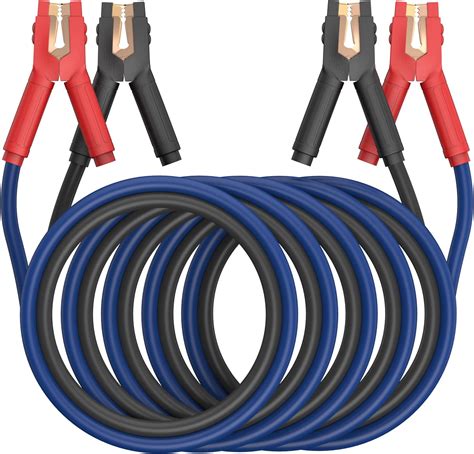

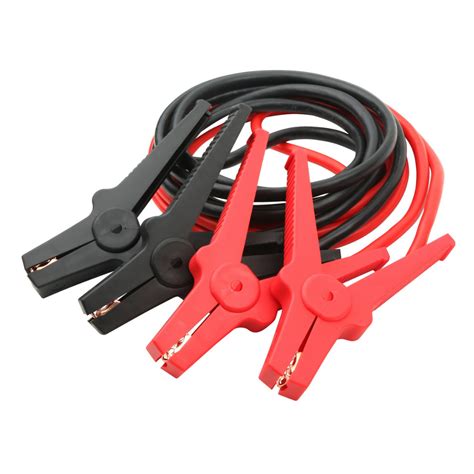

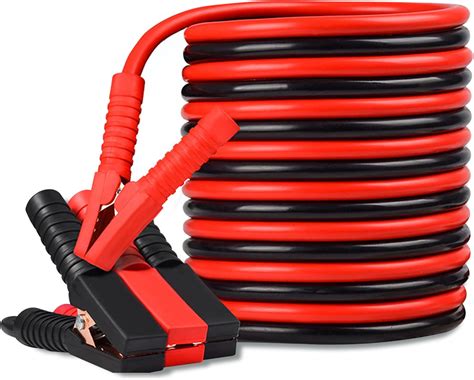

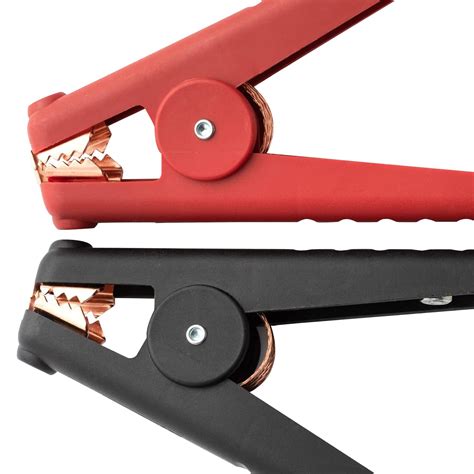

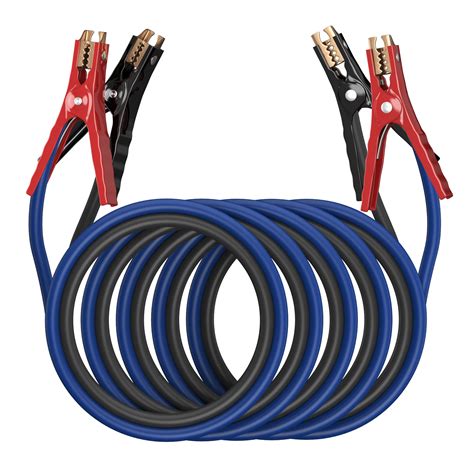

Before diving into the Jumper Cable Setup, it's essential to understand what jumper cables are and how they work. Jumper cables are thick, insulated wires with clamps on each end. They are used to connect the dead battery of one vehicle to the live battery of another, allowing the live battery to provide the necessary power to start the dead vehicle.

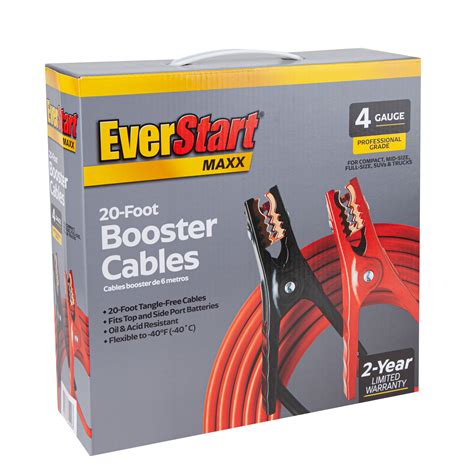

There are different types of jumper cables, including standard, heavy-duty, and booster cables. Standard cables are typically sufficient for most vehicles, but heavy-duty cables are recommended for larger vehicles or those with high-power demands. Booster cables are designed for use with portable jump starters.
Safety Precautions
Safety should always be your top priority when performing a Jumper Cable Setup. Here are some key safety precautions to keep in mind:
- Ensure both vehicles are turned off and in park or neutral with the parking brakes engaged.
- Wear safety glasses to protect your eyes from any potential sparks.
- Avoid touching the metal clamps together while the cables are connected to the batteries.
- Do not lean over the battery while jump-starting the vehicle.
- Ensure the jumper cables are in good condition, with no frayed wires or damaged insulation.
Jumper Cable Setup: Step-by-Step Guide
Follow these detailed steps for a safe and effective Jumper Cable Setup:
Step 1: Position the Vehicles
Park the vehicle with the good battery close to the vehicle with the dead battery. Ensure the vehicles are not touching and that there is enough space to work safely.
Step 2: Locate the Batteries
Open the hoods of both vehicles and locate the batteries. The battery is usually found under the hood, but in some vehicles, it may be located in the trunk or under the rear seat.
Step 3: Identify the Battery Terminals
Each battery has two terminals: the positive (+) terminal and the negative (-) terminal. The positive terminal is usually marked with a plus sign (+) and is often red. The negative terminal is marked with a minus sign (-) and is often black.
Step 4: Connect the Jumper Cables
Follow these steps to connect the jumper cables correctly:
- Connect one end of the red (positive) cable to the positive terminal of the dead battery.
- Connect the other end of the red (positive) cable to the positive terminal of the good battery.
- Connect one end of the black (negative) cable to the negative terminal of the good battery.
- Connect the other end of the black (negative) cable to a clean, unpainted metal surface on the engine block of the vehicle with the dead battery. This helps to ground the connection and prevent sparks near the battery.
Step 5: Start the Vehicles
Once the Jumper Cable Setup is complete, follow these steps:
- Start the vehicle with the good battery and let it run for a few minutes to allow the dead battery to charge.
- Attempt to start the vehicle with the dead battery. If it starts, let it run for a few minutes to ensure the battery is charging.
Step 6: Disconnect the Jumper Cables
After the vehicle with the dead battery has started, follow these steps to disconnect the jumper cables:
- Remove the black (negative) cable from the engine block of the vehicle that was jump-started.
- Remove the black (negative) cable from the negative terminal of the good battery.
- Remove the red (positive) cable from the positive terminal of the good battery.
- Remove the red (positive) cable from the positive terminal of the vehicle that was jump-started.
🔧 Note: Always disconnect the cables in the reverse order of how you connected them to avoid sparks.
Troubleshooting Common Issues
Even with a proper Jumper Cable Setup, you may encounter some issues. Here are some common problems and their solutions:
Vehicle Still Won't Start
If the vehicle with the dead battery still won't start, there may be other issues at play. Check the following:
- Ensure the jumper cables are securely connected to the battery terminals.
- Check for any visible damage to the battery or cables.
- Inspect the vehicle's starter and alternator for any signs of failure.
Sparks or Smoke
If you see sparks or smoke during the Jumper Cable Setup, immediately disconnect the cables and reassess the situation. Sparks can indicate a short circuit or improper connection. Smoke may indicate a damaged battery or cable.
⚠️ Note: If you encounter sparks or smoke, do not attempt to restart the process until the issue is resolved. Seek professional assistance if necessary.
Maintaining Your Battery
Regular maintenance can help prevent battery issues and the need for a Jumper Cable Setup. Here are some tips for maintaining your vehicle's battery:
- Keep your battery clean and free of corrosion. Use a mixture of baking soda and water to clean the terminals if necessary.
- Ensure the battery is securely fastened in its tray to prevent vibration and damage.
- Check the battery's water level regularly and top it off with distilled water if needed.
- Avoid leaving your vehicle unused for extended periods. If you must store your vehicle, consider using a battery tender to keep the battery charged.
When to Replace Your Battery
Even with proper maintenance, batteries have a limited lifespan. Here are some signs that it's time to replace your battery:
- The battery is more than three years old.
- The vehicle is slow to start, especially in cold weather.
- The battery warning light on the dashboard is illuminated.
- The battery case is swollen or leaking.
If you notice any of these signs, it's a good idea to have your battery tested by a professional and replaced if necessary.
Batteries typically last between three to five years, depending on usage and maintenance. Regularly checking your battery's condition can help you avoid unexpected failures and the need for a Jumper Cable Setup.
Alternative Jump-Starting Methods
In addition to traditional jumper cables, there are alternative methods for jump-starting a vehicle. These methods can be useful if you don't have access to another vehicle or jumper cables.
Portable Jump Starters
Portable jump starters are compact, battery-powered devices that can jump-start your vehicle without the need for another car. These devices are convenient and easy to use, making them a popular choice for emergency situations.
To use a portable jump starter, follow these steps:
- Connect the red (positive) clamp to the positive terminal of the dead battery.
- Connect the black (negative) clamp to a clean, unpainted metal surface on the engine block.
- Turn on the jump starter and attempt to start the vehicle.
- Once the vehicle starts, let it run for a few minutes to charge the battery.
- Disconnect the clamps in the reverse order of how you connected them.
Push-Starting
Push-starting, also known as "bump-starting," is a method used to start a manual transmission vehicle without a working battery. This method involves pushing the vehicle to gain momentum and then engaging the clutch to start the engine.
To push-start a vehicle, follow these steps:
- Ensure the vehicle is in neutral and the parking brake is disengaged.
- Have someone push the vehicle to gain momentum.
- Once the vehicle is moving at a sufficient speed, engage the clutch and shift into a low gear.
- Release the clutch quickly to start the engine.
Push-starting is not recommended for automatic transmission vehicles, as it can cause damage to the transmission.
While push-starting can be a useful method in a pinch, it's important to address the underlying battery issue as soon as possible to avoid future problems.
Understanding the proper Jumper Cable Setup and alternative jump-starting methods can save you time and hassle in emergency situations. By following the steps outlined in this guide, you can safely and effectively jump-start your vehicle and get back on the road.
Regular battery maintenance and knowing when to replace your battery can help prevent unexpected failures and the need for a Jumper Cable Setup. Whether you’re using traditional jumper cables, a portable jump starter, or push-starting your vehicle, being prepared can make all the difference in a stressful situation.
