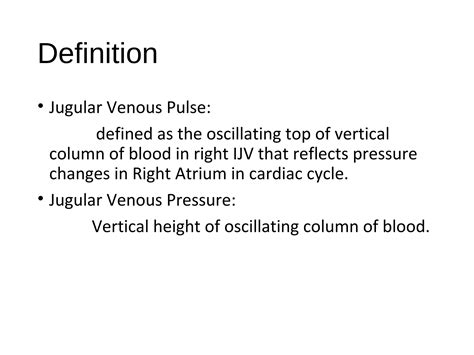

Understanding the Jugular Venous Pulse (JVP) is crucial for healthcare professionals, as it provides valuable insights into a patient's cardiovascular health. The JVP is a visible pulsation in the neck that corresponds to the pressure changes in the right atrium of the heart. By examining the JVP, clinicians can assess various cardiac and hemodynamic conditions, making it an essential component of a comprehensive physical examination.
Anatomy and Physiology of the Jugular Venous Pulse
The Jugular Venous Pulse is observed in the internal jugular vein, which is located deep within the neck, and the external jugular vein, which is more superficial. The pulsations in these veins are a reflection of the pressure changes in the right atrium of the heart. The right atrium receives deoxygenated blood from the body through the superior and inferior vena cavae and pumps it into the right ventricle. The pressure changes in the right atrium are transmitted to the jugular veins, resulting in the visible pulsations.

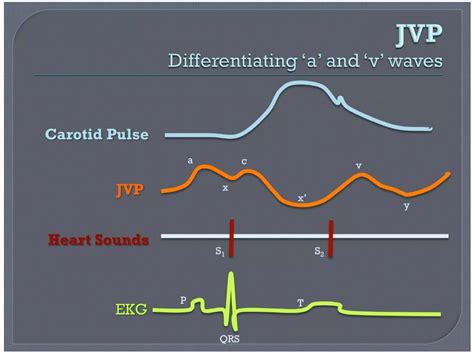

The JVP waveform consists of several components, each corresponding to different phases of the cardiac cycle:
- a wave: Occurs during atrial contraction and is normally not visible.
- c wave: Results from the bulging of the tricuspid valve into the right atrium during ventricular contraction.
- x descent: Represents the relaxation of the atrium and the downward movement of the tricuspid valve.
- v wave: Occurs during ventricular filling and is normally not visible.

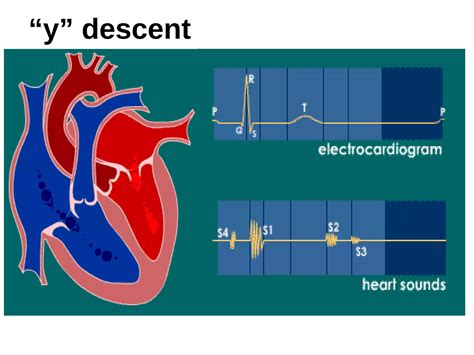

- y descent: Represents the rapid emptying of the right atrium into the right ventricle.
Assessing the Jugular Venous Pulse
To assess the Jugular Venous Pulse, the patient should be positioned at a 45-degree angle to make the pulsations more visible. The examiner should inspect the neck for visible pulsations and measure the vertical height of the pulsations above the sternal angle. The normal JVP is typically less than 3-4 cm above the sternal angle.
Several key observations can be made during the assessment of the JVP:
- Height of the JVP: An elevated JVP can indicate right-sided heart failure, tricuspid regurgitation, or other conditions that increase venous pressure.
- Waveform characteristics: Abnormal waveforms can provide clues to specific cardiac conditions. For example, a prominent a wave may indicate tricuspid stenosis, while a prominent v wave may suggest tricuspid regurgitation.
- Respiratory variation: The JVP should normally decrease with inspiration due to increased venous return to the right atrium. Abnormal respiratory variation can indicate conditions such as constrictive pericarditis or tamponade.
Clinical Significance of the Jugular Venous Pulse
The Jugular Venous Pulse is a valuable tool in the diagnosis and management of various cardiovascular conditions. Some of the key clinical implications include:
Right-sided heart failure: An elevated JVP with a prominent y descent is often seen in right-sided heart failure. This condition occurs when the right ventricle is unable to pump blood effectively, leading to increased venous pressure and congestion.
Tricuspid regurgitation: In tricuspid regurgitation, the tricuspid valve does not close properly, allowing blood to leak back into the right atrium. This results in a prominent v wave and a rapid y descent in the JVP waveform.
Tricuspid stenosis: Tricuspid stenosis is characterized by a narrowed tricuspid valve, which impedes blood flow from the right atrium to the right ventricle. This condition results in a prominent a wave and a slow y descent in the JVP waveform.
Constrictive pericarditis: In constrictive pericarditis, the pericardium becomes thickened and rigid, impairing the heart's ability to fill properly. This condition results in a prominent x and y descent in the JVP waveform, with a rapid early diastolic filling followed by a plateau.
Cardiac tamponade: Cardiac tamponade occurs when fluid accumulates in the pericardial space, compressing the heart and impairing its ability to fill. This condition results in a prominent x and y descent in the JVP waveform, with a rapid early diastolic filling followed by a plateau.

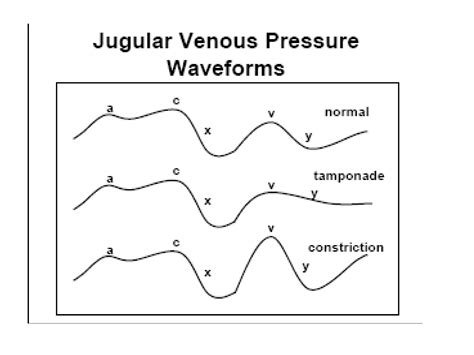

Interpreting Abnormal Jugular Venous Pulse Waveforms
Interpreting abnormal JVP waveforms requires a thorough understanding of the normal waveform components and their corresponding cardiac events. Some common abnormal waveforms and their clinical significance include:
| Waveform | Clinical Significance |
|---|---|
| Prominent a wave | Tricuspid stenosis, atrial fibrillation with rapid ventricular response, pulmonary hypertension |
| Prominent c wave | Tricuspid regurgitation, right ventricular hypertrophy |
| Prominent v wave | Tricuspid regurgitation, atrial fibrillation with rapid ventricular response |
| Absent a wave | Atrial fibrillation, junctional rhythm |
| Absent x descent | Tricuspid regurgitation, constrictive pericarditis |
| Absent y descent | Tricuspid stenosis, right atrial myxoma |
📝 Note: The interpretation of JVP waveforms should be correlated with other clinical findings and diagnostic tests to ensure an accurate diagnosis.
Challenges in Assessing the Jugular Venous Pulse
Assessing the Jugular Venous Pulse can be challenging due to several factors. Some of the common challenges include:
- Obese patients: Excess adipose tissue in the neck can make it difficult to visualize the JVP.
- Short neck: A short neck can make it challenging to measure the vertical height of the JVP accurately.
- Patient positioning: Incorrect positioning of the patient can affect the visibility and measurement of the JVP.
- Respiratory variation: Abnormal respiratory variation can make it difficult to interpret the JVP waveform.
To overcome these challenges, clinicians should ensure proper patient positioning, use appropriate lighting, and correlate the JVP findings with other clinical and diagnostic information.
📝 Note: In cases where the JVP is difficult to assess, alternative methods such as echocardiography or invasive hemodynamic monitoring may be necessary.
Conclusion
The Jugular Venous Pulse is a crucial component of the cardiovascular examination, providing valuable insights into a patient’s hemodynamic status. By understanding the anatomy, physiology, and clinical significance of the JVP, healthcare professionals can accurately assess and manage various cardiovascular conditions. Proper assessment of the JVP requires careful observation, measurement, and interpretation of the waveform components. Challenges in assessing the JVP can be overcome with appropriate techniques and correlation with other clinical findings. The Jugular Venous Pulse remains an essential tool in the diagnosis and management of cardiovascular diseases, contributing to improved patient outcomes.
