Embarking on the journey of modifying or repairing an Xbox 360 can be an exciting adventure for tech enthusiasts. One of the most powerful tools in this endeavor is the Jtag Xbox 360 method. This technique allows users to gain extensive control over their console, enabling modifications that range from simple tweaks to full-fledged customizations. Whether you're looking to enhance performance, install custom firmware, or simply explore the inner workings of your Xbox 360, understanding Jtag Xbox 360 is essential.
Understanding Jtag Xbox 360
The term Jtag Xbox 360 refers to a method of modifying the Xbox 360 console by exploiting a hardware interface known as the Joint Test Action Group (JTAG) port. This port is typically used for debugging and testing purposes during the manufacturing process. By connecting to this port, users can gain low-level access to the console's hardware, allowing for a wide range of modifications.
Jtag Xbox 360 modifications can include:
- Installing custom firmware to bypass region locks and other restrictions.
- Enabling the ability to run homebrew applications and games.
- Improving performance and stability through custom configurations.
- Accessing advanced debugging tools for troubleshooting and development.
Preparing for Jtag Xbox 360 Modification
Before diving into the Jtag Xbox 360 process, it's crucial to gather the necessary tools and understand the risks involved. Here’s a step-by-step guide to help you prepare:
Gathering the Necessary Tools
To perform a Jtag Xbox 360 modification, you will need the following:
- A compatible Xbox 360 console (typically the older models with the JTAG port exposed).
- A JTAG adapter or a compatible USB-to-serial adapter.
- A soldering iron and soldering skills.
- A computer with a serial port or a USB-to-serial converter.
- Custom firmware and necessary software tools.
Understanding the Risks
Modifying your Xbox 360 using the Jtag Xbox 360 method comes with several risks:
- Voiding the Warranty: Any modification to the console will void the manufacturer's warranty.
- Bricking the Console: Incorrect modifications can render your console unusable, a condition known as "bricking."
- Legal Implications: Modifying your console may violate terms of service and could potentially lead to legal issues, especially if used for piracy.
It's essential to weigh these risks carefully before proceeding with the Jtag Xbox 360 modification.
Step-by-Step Guide to Jtag Xbox 360 Modification
Once you have gathered the necessary tools and understood the risks, you can proceed with the Jtag Xbox 360 modification. Here’s a detailed guide to help you through the process:
Step 1: Opening the Xbox 360
Begin by carefully opening your Xbox 360 console. This involves removing the outer casing to access the internal components. Be cautious to avoid damaging any parts during this process.
Step 2: Locating the JTAG Port

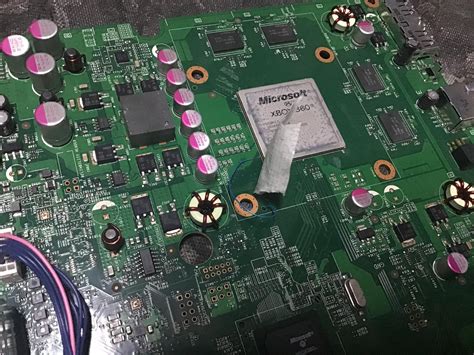

Identify the JTAG port on the motherboard. This port is usually located near the CPU and is marked with a specific label. The exact location may vary depending on the model of your Xbox 360.
Step 3: Soldering the JTAG Adapter
Connect the JTAG adapter to the JTAG port by soldering the appropriate pins. Ensure that the connections are secure and that there are no short circuits. This step requires precision and patience.
🛠️ Note: If you are not experienced with soldering, consider seeking help from someone who is, as improper soldering can damage your console.
Step 4: Connecting to the Computer
Connect the JTAG adapter to your computer using a USB-to-serial converter or a direct serial connection. Ensure that the connection is stable and that your computer recognizes the device.
Step 5: Installing Custom Firmware
Download the custom firmware and necessary software tools from a reliable source. Follow the instructions provided with the firmware to flash it onto your Xbox 360. This process typically involves using a terminal or command-line interface to send commands to the console.
Step 6: Testing the Modification
After flashing the custom firmware, power on your Xbox 360 and test the modifications. Ensure that the console boots up correctly and that the custom firmware is functioning as expected. You may need to perform additional configurations or tweaks to achieve the desired results.
Common Issues and Troubleshooting
Even with careful preparation, you may encounter issues during the Jtag Xbox 360 modification process. Here are some common problems and their potential solutions:
Console Not Booting
If your Xbox 360 does not boot after the modification, it may be due to a faulty soldering job or incorrect firmware flashing. Double-check your connections and ensure that the firmware was flashed correctly. You may need to re-flash the firmware or seek assistance from a more experienced modder.
Error Messages
Error messages during the modification process can provide clues about what went wrong. Common error messages include:
| Error Message | Possible Cause | Solution |
|---|---|---|
| Failed to Connect | Incorrect serial port settings or faulty connection | Check your serial port settings and ensure the connection is secure |
| Firmware Flashing Failed | Incorrect firmware file or corrupted download | Download the firmware file again and verify its integrity |
| Console Bricked | Incorrect modification or hardware failure | Seek professional assistance or consider replacing the affected components |
Advanced Jtag Xbox 360 Modifications
Once you have successfully performed the basic Jtag Xbox 360 modification, you can explore more advanced customizations. These modifications can enhance the functionality and performance of your console even further.
Installing Homebrew Applications
With the custom firmware installed, you can run homebrew applications on your Xbox 360. These applications can include emulators, media players, and other useful tools. To install homebrew applications, follow these steps:
- Download the desired homebrew application from a reliable source.
- Transfer the application to a USB drive or SD card.
- Insert the USB drive or SD card into your Xbox 360 and navigate to the file using the custom firmware interface.
- Run the application and follow any on-screen instructions.
Enabling Network Features
Custom firmware can also enable advanced network features on your Xbox 360. This includes the ability to connect to custom servers, access online multiplayer without an Xbox Live subscription, and more. To enable network features, you may need to configure the custom firmware settings and install additional software tools.
Overclocking the Console
For those looking to push their Xbox 360 to its limits, overclocking is an option. Overclocking involves increasing the clock speed of the console's CPU and GPU to improve performance. However, this modification comes with risks, including increased heat output and potential hardware failure. Proceed with caution and ensure that your console is properly cooled.
⚠️ Note: Overclocking can void your warranty and potentially damage your console. Ensure you understand the risks before proceeding.
Advanced Jtag Xbox 360 modifications can significantly enhance the capabilities of your console, but they also require a deeper understanding of the hardware and software involved. Take your time and carefully follow the instructions to avoid any issues.
In conclusion, the Jtag Xbox 360 method offers a powerful way to modify and customize your Xbox 360 console. From installing custom firmware to running homebrew applications, the possibilities are vast. However, it’s crucial to understand the risks and prepare thoroughly before attempting any modifications. With the right tools and knowledge, you can unlock the full potential of your Xbox 360 and enjoy a truly personalized gaming experience.
