Woodworking is an art that combines creativity with precision, and one of the most fundamental techniques in this craft is the joint and tenon joinery method. This technique has been used for centuries to create strong and durable connections between pieces of wood. Whether you're a seasoned woodworker or just starting out, understanding the joint and tenon method can significantly enhance your projects.
Understanding the Joint and Tenon Technique

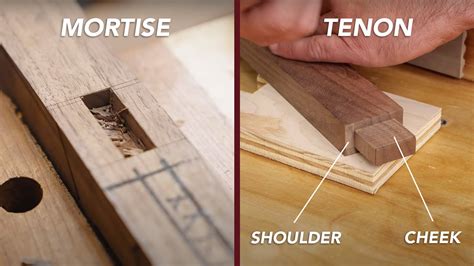

The joint and tenon is a classic woodworking joint that involves two main components: the tenon and the mortise. The tenon is a protruding piece of wood that fits into a corresponding hole, known as the mortise, in another piece of wood. This interlocking mechanism creates a strong and stable connection.

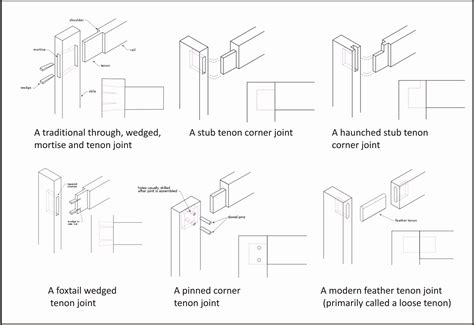

There are several types of joint and tenon joints, each suited for different applications:

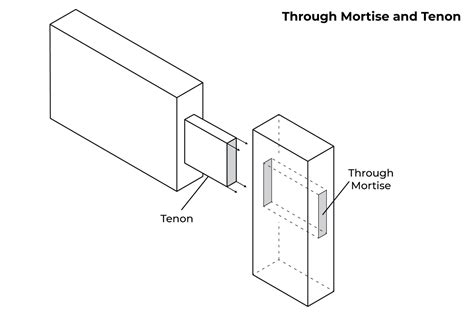

- Through Tenon: The tenon extends all the way through the mortise, creating a visible joint on both sides.
- Blind Tenon: The tenon does not extend all the way through the mortise, making it less visible from one side.
- Haunched Tenon: This type has a shoulder that adds extra strength and stability to the joint.

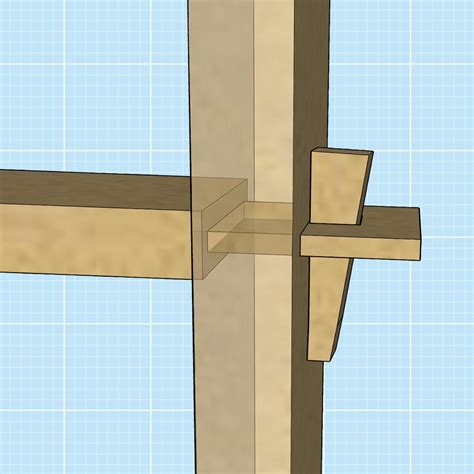

- Tusk Tenon: Similar to a through tenon but with a tapered end, making it easier to insert and providing a stronger hold.
Tools Required for Joint and Tenon Joinery
To create a joint and tenon, you will need a set of essential woodworking tools. Here are some of the key tools you should have:
- Chisels: For cutting the mortise and shaping the tenon.
- Mallet: To drive the chisel into the wood.
- Saw: A handsaw or a bandsaw for cutting the tenon.
- Router: For creating precise mortises, especially for larger projects.
- Clamps: To hold the pieces together while the glue dries.
- Marking Gauge: To accurately mark the depth of the mortise and the length of the tenon.
Step-by-Step Guide to Creating a Joint and Tenon
Creating a joint and tenon involves several steps, each requiring precision and attention to detail. Here’s a step-by-step guide to help you through the process:
Step 1: Marking the Wood
Begin by marking the wood where you want to create the mortise and tenon. Use a marking gauge to ensure accurate measurements. The mortise should be slightly wider than the tenon to allow for a snug fit.
Step 2: Cutting the Mortise
Using a chisel and mallet, carefully cut out the mortise. Start by making a series of shallow cuts around the marked area, then gradually deepen them until you reach the desired depth. Ensure the sides of the mortise are straight and perpendicular to the surface.
🛠️ Note: Take your time when cutting the mortise to avoid splitting the wood.
Step 3: Cutting the Tenon
Next, cut the tenon on the corresponding piece of wood. Use a saw to make the initial cuts, then refine the shape with a chisel. The tenon should be slightly narrower than the mortise to allow for a tight fit. Ensure the tenon is the correct length to fit snugly into the mortise.
🛠️ Note: Double-check your measurements before making any cuts to avoid mistakes.

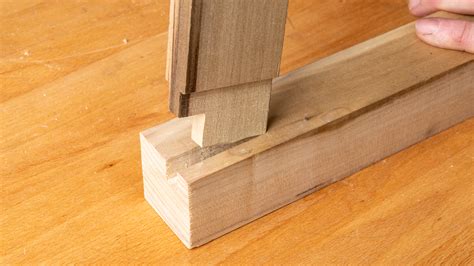

Step 4: Fitting the Joint
Test the fit of the tenon in the mortise. If it’s too tight, use a chisel to slightly widen the mortise or narrow the tenon. If it’s too loose, you may need to adjust the dimensions accordingly. The goal is to achieve a snug fit that requires a gentle tap with a mallet to fully seat the tenon.
Step 5: Gluing and Clamping
Apply wood glue to the tenon and insert it into the mortise. Use clamps to hold the pieces together firmly while the glue dries. Wipe away any excess glue with a damp cloth. Allow the glue to dry according to the manufacturer’s instructions, usually 24 hours.
🛠️ Note: Ensure the joint is aligned properly before clamping to avoid misalignment.
Common Applications of Joint and Tenon Joinery
The joint and tenon technique is versatile and can be used in a variety of woodworking projects. Some common applications include:

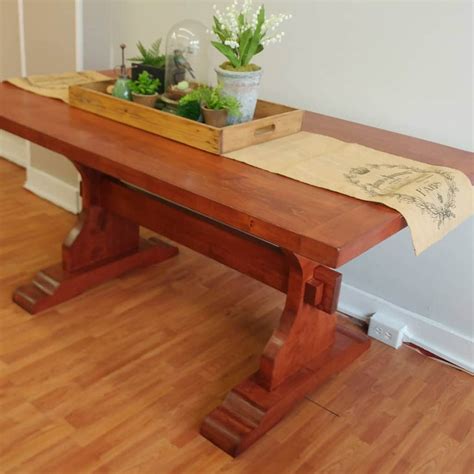

- Furniture Making: Chairs, tables, and cabinets often use joint and tenon joints for their strength and durability.
- Door and Window Frames: These joints are ideal for creating sturdy frames that can withstand daily use.
- Cabinets and Shelves: The joint and tenon method ensures that shelves and cabinets are stable and can support heavy loads.

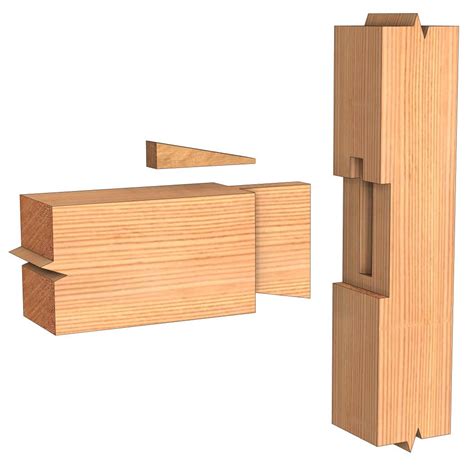

- Framing and Construction: In larger projects, such as building frames for houses or sheds, joint and tenon joints provide the necessary strength and stability.
Tips for Mastering Joint and Tenon Joinery
Mastering the joint and tenon technique requires practice and patience. Here are some tips to help you improve your skills:
- Practice on Scrap Wood: Before working on your main project, practice on scrap wood to get a feel for the technique.
- Use Sharp Tools: Sharp chisels and saws make the cutting process easier and more precise.
- Take Your Time: Rushing through the process can lead to mistakes. Take your time to ensure each cut is accurate.
- Check for Square: Use a square to ensure that your cuts are straight and perpendicular.
- Test the Fit: Regularly test the fit of the tenon in the mortise to make adjustments as needed.
Advanced Techniques for Joint and Tenon Joinery
Once you’ve mastered the basics, you can explore advanced techniques to enhance the strength and aesthetics of your joint and tenon joints. Some advanced techniques include:
- Dovetail Joints: Combining dovetail joints with joint and tenon can add extra strength and stability.

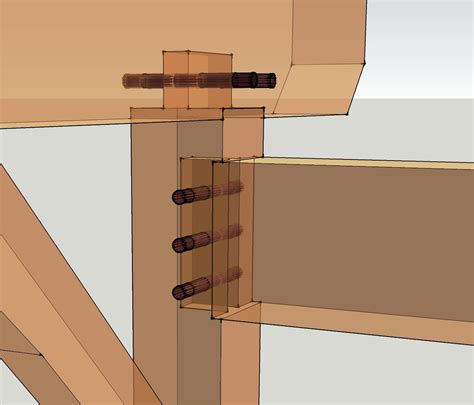

- Pegged Joints: Adding wooden pegs to secure the joint can prevent it from loosening over time.
- Haunched Tenons: These tenons have a shoulder that adds extra strength and stability to the joint.
- Tusk Tenons: These tenons have a tapered end, making them easier to insert and providing a stronger hold.
These advanced techniques can be more challenging but offer significant benefits in terms of strength and durability.
Troubleshooting Common Issues
Even with careful planning and execution, issues can arise when creating joint and tenon joints. Here are some common problems and solutions:
| Issue | Solution |
|---|---|
| Tenon too tight | Use a chisel to slightly widen the mortise or narrow the tenon. |
| Tenon too loose | Adjust the dimensions of the tenon or mortise to achieve a snug fit. |
| Mortise not deep enough | Carefully deepen the mortise using a chisel and mallet. |
| Mortise too deep | Fill the excess space with wood glue and a small piece of wood. |
| Joint misaligned | Ensure proper alignment before clamping and use clamps to hold the pieces in place. |
By addressing these issues promptly, you can ensure that your joint and tenon joints are strong and durable.
In conclusion, the joint and tenon technique is a fundamental skill in woodworking that offers numerous benefits in terms of strength and durability. By understanding the basics, practicing regularly, and exploring advanced techniques, you can master this essential joinery method and create stunning, long-lasting woodworking projects. Whether you’re building furniture, frames, or larger structures, the joint and tenon technique will serve you well in your woodworking journey.
