Ion Selective Electrode

In the realm of analytical chemistry, the Ion Selective Electrode (ISE) stands as a pivotal tool for measuring the concentration of specific ions in a solution. These electrodes are designed to be selective to a particular ion, allowing for precise and accurate measurements in various applications, from environmental monitoring to clinical diagnostics. This blog post delves into the fundamentals of Ion Selective Electrodes, their types, working principles, applications, and best practices for their use.

Table of Contents

Understanding Ion Selective Electrodes

An Ion Selective Electrode is a transducer that converts the activity of a specific ion dissolved in a solution into an electrical potential, which can be measured. The potential is then correlated to the ion concentration using the Nernst equation. The selectivity of the electrode is crucial, as it ensures that the measurement is not interfered with by other ions present in the solution.

Types of Ion Selective Electrodes

Ion Selective Electrodes can be categorized into several types based on their construction and the ions they measure. The most common types include:

Glass Electrodes: These are typically used for measuring pH and are made of a special glass membrane that is selective to hydrogen ions.

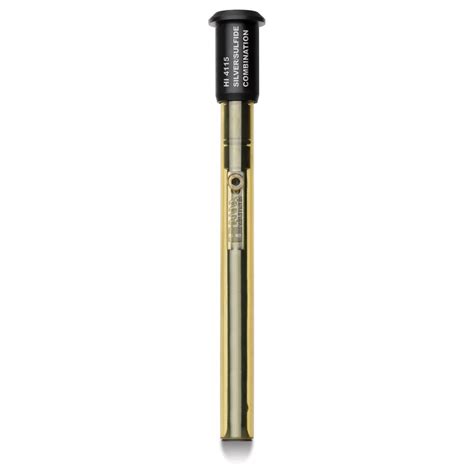

Solid-State Electrodes: These electrodes use a solid membrane, often made of a crystalline material, that is selective to specific ions such as fluoride, chloride, or silver.
Liquid Membrane Electrodes: These electrodes use a liquid ion exchanger contained within a porous membrane, which is selective to ions like calcium, potassium, or sodium.
Gas-Sensing Electrodes: These electrodes measure the concentration of gases that can dissolve in a solution, such as carbon dioxide or ammonia, by detecting the ions produced by the dissolved gas.

Working Principle of Ion Selective Electrodes

The working principle of an Ion Selective Electrode is based on the generation of an electrical potential at the interface between the electrode and the solution. This potential is proportional to the logarithm of the ion activity in the solution, as described by the Nernst equation:

📝 Note: The Nernst equation is given by E = E0 + (RT/nF) ln(a_i/a_0), where E is the measured potential, E0 is the standard electrode potential, R is the universal gas constant, T is the temperature in Kelvin, n is the number of electrons involved in the reaction, F is the Faraday constant, a_i is the activity of the ion of interest, and a_0 is the activity of the ion in the reference solution.

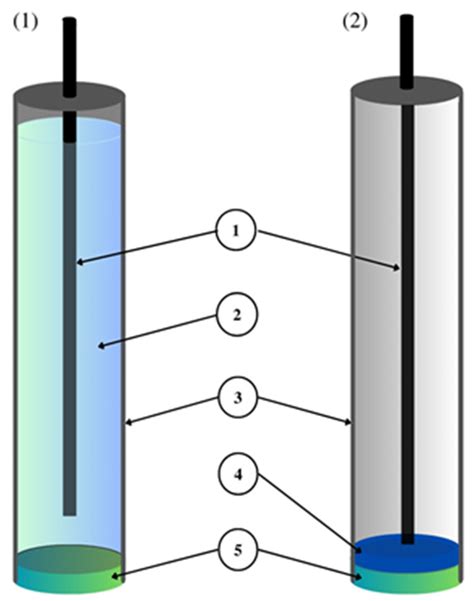

The electrode consists of an ion-selective membrane that allows only the target ion to pass through, generating a potential difference that is measured against a reference electrode. The reference electrode provides a stable potential against which the potential of the Ion Selective Electrode can be compared.

Applications of Ion Selective Electrodes

Ion Selective Electrodes find applications in a wide range of fields due to their selectivity, sensitivity, and ease of use. Some of the key applications include:

Environmental Monitoring: Ion Selective Electrodes are used to monitor the concentration of pollutants in water, such as fluoride, nitrate, and heavy metals. This helps in ensuring compliance with environmental regulations and maintaining water quality.
Clinical Diagnostics: In medical laboratories, Ion Selective Electrodes are used to measure the concentration of ions in blood and other bodily fluids. This is crucial for diagnosing and monitoring conditions such as electrolyte imbalances, kidney function, and acid-base disorders.
Industrial Processes: In industries such as food and beverage, pharmaceuticals, and chemical manufacturing, Ion Selective Electrodes are used to monitor and control the concentration of specific ions in process streams. This ensures product quality and process efficiency.
Agriculture: In agriculture, Ion Selective Electrodes are used to measure the concentration of nutrients in soil and water, helping farmers to optimize fertilizer use and improve crop yields.

Best Practices for Using Ion Selective Electrodes

To ensure accurate and reliable measurements with Ion Selective Electrodes, it is essential to follow best practices. These include:

Calibration: Regular calibration of the electrode using standard solutions of known ion concentration is crucial. This ensures that the electrode is responding accurately to the ion of interest.
Maintenance: Proper maintenance of the electrode, including cleaning and storage, is essential to prolong its lifespan and maintain its performance. The electrode should be stored in a suitable solution when not in use.
Temperature Control: The temperature of the solution being measured should be controlled and recorded, as the potential generated by the electrode is temperature-dependent.
Interference Management: Interference from other ions in the solution should be minimized by using appropriate buffers or by selecting an electrode with high selectivity for the target ion.

Calibration of Ion Selective Electrodes

Calibration is a critical step in ensuring the accuracy of measurements with Ion Selective Electrodes. The calibration process involves measuring the potential generated by the electrode in solutions of known ion concentration and constructing a calibration curve. The calibration curve is then used to determine the concentration of the ion in unknown samples.

The calibration process typically involves the following steps:

Prepare a series of standard solutions with known concentrations of the ion of interest.
Measure the potential generated by the Ion Selective Electrode in each standard solution.
Plot the measured potentials against the logarithm of the ion concentrations to construct a calibration curve.
Use the calibration curve to determine the concentration of the ion in unknown samples by measuring the potential generated by the electrode in the sample and comparing it to the calibration curve.

📝 Note: It is important to calibrate the electrode regularly, as the response of the electrode can drift over time due to factors such as contamination, membrane degradation, or changes in temperature.

Common Interferences in Ion Selective Electrode Measurements

Interferences can significantly affect the accuracy of measurements with Ion Selective Electrodes. Common interferences include:

Ionic Interferences: Other ions in the solution can interfere with the measurement by competing with the target ion for binding sites on the electrode membrane. This can lead to inaccurate readings.
Chemical Interferences: Certain chemicals in the solution can react with the electrode membrane or the ion of interest, altering the measured potential.
Physical Interferences: Factors such as temperature, pressure, and flow rate can also affect the performance of the electrode. It is important to control these factors to ensure accurate measurements.

To minimize interferences, it is essential to select an electrode with high selectivity for the target ion and to use appropriate buffers or masking agents to suppress the interference from other ions.

Troubleshooting Ion Selective Electrode Measurements

Despite following best practices, issues can still arise with Ion Selective Electrode measurements. Common problems and their solutions include:

Problem	Possible Causes	Solutions
Slow Response Time	Contamination of the electrode membrane, low temperature, or high viscosity of the solution	Clean the electrode, increase the temperature, or dilute the solution
Drift in Calibration Curve	Degradation of the electrode membrane, changes in temperature, or interference from other ions	Recalibrate the electrode, control the temperature, or use a masking agent
High Noise Levels	Electrical interference, poor grounding, or mechanical vibrations	Shield the electrode, improve grounding, or isolate the measurement setup from vibrations
Low Sensitivity	Contamination of the electrode membrane, low ion concentration, or interference from other ions	Clean the electrode, increase the ion concentration, or use a masking agent

Regular maintenance and calibration, along with careful control of measurement conditions, can help prevent these issues and ensure accurate and reliable measurements.

📝 Note: If problems persist, it may be necessary to replace the electrode or consult with the manufacturer for further troubleshooting.

Future Trends in Ion Selective Electrode Technology

The field of Ion Selective Electrode technology is continually evolving, driven by advancements in materials science, nanotechnology, and sensor design. Some of the emerging trends include:

Nanomaterials: The use of nanomaterials, such as carbon nanotubes and graphene, in the construction of Ion Selective Electrodes can enhance their sensitivity, selectivity, and response time.
Microfabrication: Microfabrication techniques allow for the creation of miniaturized Ion Selective Electrodes, which can be integrated into microfluidic devices for point-of-care testing and environmental monitoring.
Wireless Sensors: The development of wireless Ion Selective Electrodes enables real-time monitoring of ion concentrations in remote or hard-to-reach locations, such as underground water sources or industrial process streams.
Artificial Intelligence: The integration of artificial intelligence and machine learning algorithms can improve the accuracy and reliability of Ion Selective Electrode measurements by predicting and correcting for interferences and drift.

These advancements hold promise for expanding the applications of Ion Selective Electrodes and improving their performance in various fields.

In conclusion, Ion Selective Electrodes are indispensable tools in analytical chemistry, offering precise and selective measurement of ion concentrations in diverse applications. Understanding their working principles, types, and best practices for use is essential for achieving accurate and reliable results. As technology continues to advance, the future of Ion Selective Electrodes looks promising, with innovations in materials, design, and integration paving the way for new and exciting applications.
