Installing recessed lighting can transform the ambiance of any room, providing a sleek, modern look while enhancing functionality. Whether you're a DIY enthusiast or a professional electrician, understanding the process of installing recessed lighting is essential for a successful project. This guide will walk you through the steps, from planning to completion, ensuring you have all the information needed to achieve a well-lit and stylish space.
Planning Your Recessed Lighting Project
Before diving into the installation process, careful planning is crucial. This includes determining the number of fixtures, their placement, and the type of lighting you need. Here are some key considerations:
- Room Size and Layout: Measure the dimensions of the room to decide how many recessed lights are needed. A common rule of thumb is to place lights about 4 feet apart in a grid pattern.
- Ceiling Type: Consider whether your ceiling is drywall, plaster, or another material. This will affect the type of housing and trim you need.
- Lighting Needs: Determine the purpose of the lighting. For general illumination, you might need brighter lights, while task lighting requires more focused beams.
Gathering the Necessary Tools and Materials
Having the right tools and materials is essential for a smooth installation process. Here’s a list of what you’ll need:
- Recessed lighting fixtures (including housings and trims)
- Wire strippers
- Screwdriver
- Drill
- Stud finder
- Tape measure
- Pencil
- Safety glasses
- Ladder
- Electrical tape
- Wire nuts
Safety Precautions
Safety should always be your top priority when working with electricity. Follow these guidelines:
- Turn off the power at the circuit breaker before starting any work.
- Use a non-contact voltage tester to ensure the power is off.
- Wear safety glasses to protect your eyes from debris.
- Follow all manufacturer instructions for the specific recessed lighting fixtures you are installing.
Installing Recessed Lighting: Step-by-Step Guide
Now that you have planned your project and gathered your tools, it’s time to start the installation process. Follow these detailed steps:
Step 1: Mark the Locations
Using a tape measure and pencil, mark the locations where you will install the recessed lighting fixtures. Ensure they are evenly spaced and aligned with your planned layout.
Step 2: Cut the Holes
Using a drywall saw or a hole saw, carefully cut out the marked areas. The size of the hole should match the diameter of the recessed lighting housing.
🛠️ Note: Be cautious when cutting to avoid damaging any wires or pipes behind the wall.
Step 3: Install the Housing
Insert the housing into the cut hole from above the ceiling. Secure it in place using the provided screws or clips. Ensure the housing is flush with the ceiling surface.

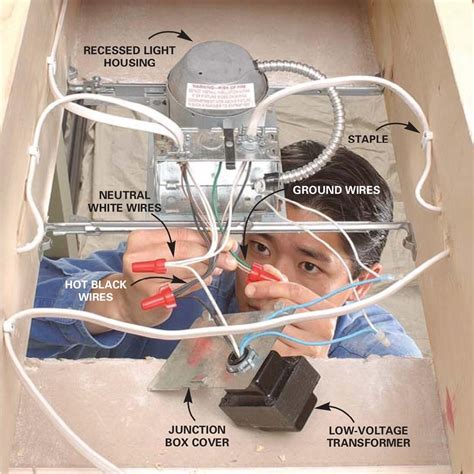

Step 4: Connect the Wiring
Connect the wiring from the housing to the existing electrical wires in the ceiling. Strip about ½ inch of insulation from the ends of the wires and twist them together using wire nuts. Secure the connections with electrical tape.
🛠️ Note: Ensure that the black wire (hot) is connected to the black wire, the white wire (neutral) to the white wire, and the ground wire (usually bare or green) to the ground wire.
Step 5: Attach the Trim
Once the wiring is secure, attach the trim to the housing. The trim should snap into place, covering the edges of the housing and providing a finished look.
Step 6: Test the Lights
Turn the power back on at the circuit breaker and test the recessed lights to ensure they are working properly. If any issues arise, double-check the wiring connections and ensure all components are securely fastened.
Choosing the Right Recessed Lighting Fixtures
Selecting the right recessed lighting fixtures is crucial for achieving the desired ambiance and functionality. Here are some factors to consider:
- Housing Type: Choose between IC-rated (insulation contact) and non-IC-rated housings. IC-rated housings can be covered with insulation, while non-IC-rated housings cannot.
- Trim Style: Select from various trim styles, such as baffle, reflector, or eyeball, to achieve the desired lighting effect.
- Light Bulb Type: Opt for energy-efficient LED bulbs, which offer long lifespan and lower energy consumption compared to traditional incandescent bulbs.
Common Mistakes to Avoid
To ensure a successful installation, avoid these common mistakes:
- Incorrect Placement: Poorly placed lights can result in uneven illumination. Plan the layout carefully to avoid dark spots.
- Improper Wiring: Incorrect wiring can lead to electrical hazards. Always follow the manufacturer’s instructions and use proper wire nuts and electrical tape.
- Ignoring Safety Precautions: Never work on live electrical circuits. Always turn off the power and use a non-contact voltage tester.
Installing recessed lighting can significantly enhance the aesthetics and functionality of your space. By following these steps and considering the key factors, you can achieve a professional-looking installation that meets your lighting needs. Whether you're upgrading a single room or an entire home, recessed lighting offers a versatile and stylish solution.
With careful planning, the right tools, and attention to detail, you can successfully complete your recessed lighting project. Enjoy the improved ambiance and functionality that recessed lighting brings to your space.
