Install Electric Water Heater

Installing an electric water heater can be a rewarding DIY project that saves you money on professional installation costs. Whether you're replacing an old unit or installing a new one, understanding the process is crucial for a successful installation. This guide will walk you through the steps to install an electric water heater safely and efficiently.

Table of Contents

Preparation Before Installing an Electric Water Heater

Before you begin, gather all the necessary tools and materials. You will need:

Electric water heater
Screwdriver
Adjustable wrench
Pipe cutter or hacksaw
Teflon tape
Soldering equipment (if needed)
Wire stripper
Voltage tester
Safety glasses
Work gloves

Ensure you have a clear workspace and that the power to the water heater is turned off at the circuit breaker. Safety is paramount, so always double-check that the power is off before starting any electrical work.

Choosing the Right Location for Your Electric Water Heater

Selecting the right location for your electric water heater is essential for efficient operation and easy maintenance. Consider the following factors:

Proximity to the main water supply and drain lines
Access to a dedicated electrical circuit
Ventilation and clearance requirements
Ease of access for future maintenance

Most electric water heaters require a dedicated 240-volt circuit, so ensure your electrical panel has the necessary capacity. The heater should also be placed in a dry, well-ventilated area to prevent moisture buildup and corrosion.

Removing the Old Water Heater

If you are replacing an old water heater, follow these steps to remove it safely:

Turn off the power to the water heater at the circuit breaker.
Turn off the water supply valve.
Connect a garden hose to the drain valve and place the other end in a suitable drain or bucket.
Open the drain valve to empty the tank.
Disconnect the water supply lines using an adjustable wrench.
Disconnect the electrical wires from the heater.
Remove the old water heater from its mounting brackets or stand.

Once the old water heater is removed, dispose of it according to local regulations. Some areas have specific guidelines for disposing of large appliances, so check with your local waste management department.

Installing the New Electric Water Heater

Now that the old water heater is removed, you can proceed with installing the new one. Follow these steps for a successful installation:

Positioning the New Water Heater

Place the new electric water heater in the desired location, ensuring it is level and stable. Use a level to check the alignment and adjust the feet or shims as needed. The heater should be securely positioned to prevent tipping or movement.

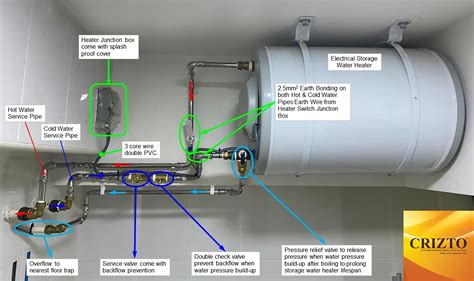

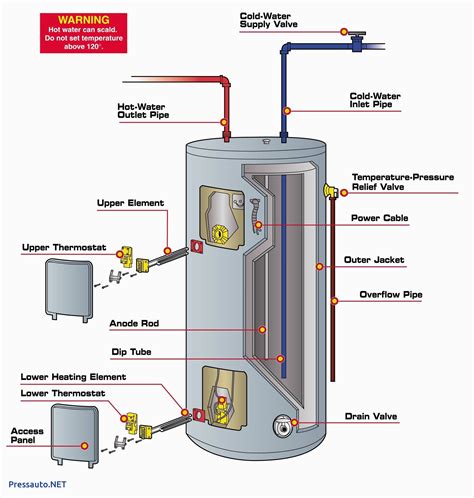

Connecting the Water Supply

Connect the cold water supply line to the inlet valve on the water heater. Use Teflon tape on the threads to ensure a watertight seal. Tighten the connection with an adjustable wrench, but be careful not to overtighten and damage the threads.

Next, connect the hot water outlet line to the outlet valve on the water heater. Again, use Teflon tape and tighten the connection securely.

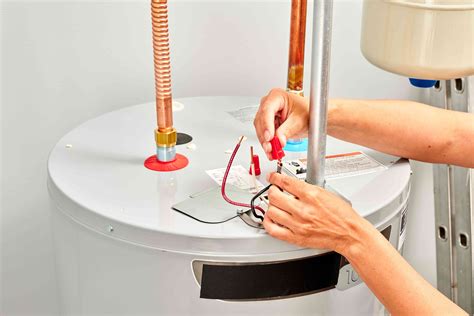

Electrical Connections

Before making any electrical connections, ensure the power is still off at the circuit breaker. Strip the ends of the electrical wires and connect them to the corresponding terminals on the water heater. Typically, there will be two hot wires (one black and one red) and one ground wire (green or bare).

Secure the wires with the appropriate screws and ensure all connections are tight. Once the wires are connected, turn the power back on at the circuit breaker and test the water heater to ensure it is functioning correctly.

Filling the Tank

Open the cold water supply valve to fill the tank. Allow the water to flow until it reaches the top of the tank. This process may take several minutes, depending on the size of the tank and the water pressure.

Once the tank is full, check for any leaks around the water supply connections. If you notice any leaks, tighten the connections or apply more Teflon tape as needed.

Testing the Water Heater

Turn on a hot water faucet in your home to release any air trapped in the lines. Allow the water to run until it reaches the desired temperature. This process may take some time, as the water heater needs to heat the water to the set temperature.

Check the temperature and pressure relief valve to ensure it is functioning correctly. Lift the lever on the valve and allow a small amount of water to flow out. If the valve is working properly, it should release water and then stop flowing when you release the lever.

🔧 Note: Always follow the manufacturer's instructions for specific details on installation and maintenance.

Maintaining Your Electric Water Heater

Regular maintenance is essential to keep your electric water heater running efficiently and extend its lifespan. Here are some tips for maintaining your water heater:

Flush the tank annually to remove sediment buildup. This process involves draining the tank and refilling it with fresh water.
Check the anode rod every few years and replace it if it is heavily corroded. The anode rod helps protect the tank from corrosion.
Inspect the temperature and pressure relief valve regularly to ensure it is functioning correctly.
Monitor the water temperature and adjust the thermostat as needed to maintain optimal performance.
Insulate the water heater and hot water pipes to reduce heat loss and improve energy efficiency.

By following these maintenance tips, you can ensure your electric water heater operates efficiently and lasts for many years.

Troubleshooting Common Issues

Even with proper installation and maintenance, you may encounter issues with your electric water heater. Here are some common problems and their solutions:

No Hot Water

If your water heater is not producing hot water, check the following:

Ensure the power is on and the circuit breaker has not tripped.
Check the thermostat settings and adjust if necessary.
Inspect the heating elements for any signs of damage or corrosion.
Verify that the water supply valve is fully open.

Insufficient Hot Water

If you are not getting enough hot water, consider the following:

Increase the thermostat setting to raise the water temperature.
Check for sediment buildup in the tank and flush if necessary.
Inspect the heating elements for any signs of wear or damage.
Ensure the water heater is the correct size for your household's needs.

Leaking Water Heater

If you notice water leaking from your water heater, take the following steps:

Check the water supply connections for any signs of leaks.
Inspect the temperature and pressure relief valve for proper functioning.
Look for cracks or damage to the tank itself.
If the leak is severe, turn off the water supply and power to the heater immediately.

If you are unable to identify or fix the issue, it is best to contact a professional plumber for assistance.

🛠️ Note: Always prioritize safety when working with electrical components and water. If you are unsure about any aspect of the installation or maintenance process, consult a professional.

Installing an electric water heater can be a straightforward process if you follow the steps outlined in this guide. By preparing properly, choosing the right location, and following the installation instructions carefully, you can ensure a successful installation and enjoy hot water in your home. Regular maintenance and troubleshooting common issues will help extend the lifespan of your water heater and keep it running efficiently.
