Electrical engineering is a field rich with fundamental concepts that underpin the design and operation of modern electrical systems. Among these concepts, inductance and mutual inductance are crucial for understanding how electrical circuits behave, especially in the presence of time-varying currents. This post delves into the intricacies of inductance and mutual inductance, exploring their definitions, applications, and the mathematical frameworks that govern them.

Understanding Inductance

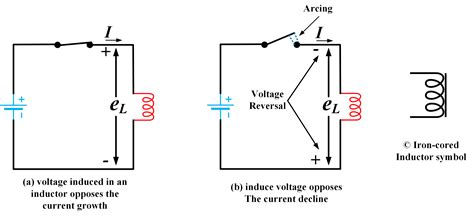

Inductance is a property of an electrical circuit that opposes a change in current through the generation of a voltage. This phenomenon is a result of the magnetic field produced by the current flowing through a conductor. The unit of inductance is the henry (H), named after the American scientist Joseph Henry.

Mathematically, inductance (L) is defined by the equation:

V = L * (dI/dt)

where V is the induced voltage, I is the current, and t is time. This equation shows that the induced voltage is proportional to the rate of change of the current.

Types of Inductors

Inductors come in various forms, each with its own characteristics and applications. The most common types include:

  • Air-core inductors: These inductors have a core made of air, which makes them suitable for high-frequency applications due to their low losses.
  • Iron-core inductors: These inductors use an iron core to increase the inductance value. They are commonly used in power supplies and filters.
  • Ferrite-core inductors: These inductors use a ferrite core, which is a ceramic material with magnetic properties. They are often used in high-frequency applications.

Applications of Inductance

Inductance plays a vital role in various electrical and electronic systems. Some of the key applications include:

  • Filters: Inductors are used in filters to block or pass specific frequency ranges. For example, low-pass filters allow low-frequency signals to pass while blocking high-frequency signals.
  • Transformers: Transformers use the principle of inductance to step up or step down voltage levels in electrical circuits.
  • Oscillators: Inductors are essential components in oscillators, which generate sinusoidal waveforms. They are used in radio frequency (RF) circuits and communication systems.

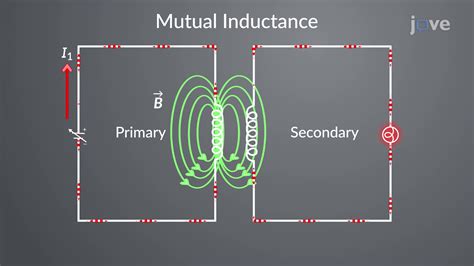

Mutual Inductance

Mutual inductance occurs when the magnetic field of one inductor induces a voltage in another nearby inductor. This phenomenon is crucial in the design of transformers and other coupled circuits. The mutual inductance (M) between two inductors is given by the equation:

V2 = M * (dI1/dt)

where V2 is the induced voltage in the second inductor, I1 is the current in the first inductor, and t is time. The mutual inductance depends on the geometry and orientation of the two inductors.

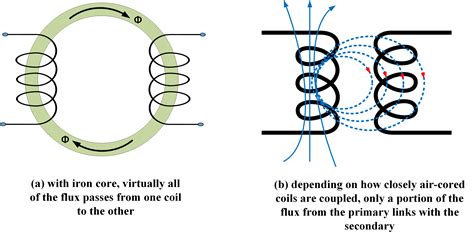

Coupling Coefficient

The coupling coefficient (k) is a measure of the degree of magnetic coupling between two inductors. It ranges from 0 to 1, where 0 indicates no coupling and 1 indicates perfect coupling. The coupling coefficient is defined by the equation:

k = M / √(L1 * L2)

where L1 and L2 are the inductances of the two inductors. The coupling coefficient is an important parameter in the design of transformers and other coupled circuits.

Applications of Mutual Inductance

Mutual inductance has numerous applications in electrical and electronic systems. Some of the key applications include:

  • Transformers: Transformers use mutual inductance to transfer electrical energy between circuits. They are essential in power distribution systems and electronic devices.
  • Inductive sensors: Inductive sensors use mutual inductance to detect the presence of metallic objects. They are commonly used in industrial automation and security systems.
  • Coupled oscillators: Mutual inductance is used in coupled oscillators to synchronize the frequency of two or more oscillators. This is important in communication systems and radar applications.

Calculating Inductance and Mutual Inductance

Calculating the inductance and mutual inductance of a circuit involves understanding the geometry and material properties of the inductors. Here are some common formulas and methods for calculating inductance and mutual inductance:

Inductance of a Solenoid

The inductance of a solenoid can be calculated using the formula:

L = (μ0 * N^2 * A) / l

where μ0 is the permeability of free space, N is the number of turns, A is the cross-sectional area, and l is the length of the solenoid.

Mutual Inductance of Two Coaxial Solenoids

The mutual inductance of two coaxial solenoids can be calculated using the formula:

M = (μ0 * N1 * N2 * A) / l

where N1 and N2 are the number of turns in the two solenoids, A is the cross-sectional area, and l is the length of the solenoids.

Mutual Inductance of Two Parallel Wires

The mutual inductance of two parallel wires can be calculated using the formula:

M = (μ0 * l) / (2π) * ln(d/r)

where l is the length of the wires, d is the distance between the wires, and r is the radius of the wires.

💡 Note: These formulas assume ideal conditions and may not account for all real-world factors such as core material properties and geometric imperfections.

Inductance and Mutual Inductance in Circuit Analysis

In circuit analysis, inductance and mutual inductance are often represented using equivalent circuits. These circuits help in understanding the behavior of inductors and coupled circuits under different conditions. Some common equivalent circuits include:

Series and Parallel Inductors

When inductors are connected in series or parallel, their equivalent inductance can be calculated using the following formulas:

Series inductors: L_eq = L1 + L2 + ... + Ln

Parallel inductors: 1/L_eq = 1/L1 + 1/L2 + ... + 1/Ln

Coupled Inductors

When two inductors are coupled, their equivalent circuit can be represented using the following equations:

V1 = L1 * (dI1/dt) + M * (dI2/dt)

V2 = L2 * (dI2/dt) + M * (dI1/dt)

where V1 and V2 are the voltages across the two inductors, I1 and I2 are the currents through the two inductors, and M is the mutual inductance.

Practical Considerations

When working with inductance and mutual inductance in practical applications, several factors need to be considered to ensure accurate and reliable performance. These factors include:

  • Core material: The choice of core material affects the inductance value and losses. Common core materials include air, iron, and ferrite.
  • Frequency: The frequency of the current affects the inductance value and losses. High-frequency applications require careful selection of core materials and geometries.
  • Temperature: Temperature can affect the magnetic properties of the core material, leading to changes in inductance and losses.
  • Geometric factors: The geometry of the inductor, including the number of turns, cross-sectional area, and length, affects the inductance value.

Understanding these factors is crucial for designing inductors and coupled circuits that meet the required specifications and performance criteria.

In practical applications, inductance and mutual inductance are often measured using specialized equipment such as LCR meters and impedance analyzers. These instruments provide accurate measurements of inductance, resistance, and capacitance, which are essential for circuit design and troubleshooting.

Additionally, simulation tools such as SPICE (Simulation Program with Integrated Circuit Emphasis) can be used to model and analyze circuits containing inductors and coupled inductors. These tools allow engineers to simulate the behavior of circuits under various conditions and optimize their design for specific applications.

In summary, inductance and mutual inductance are fundamental concepts in electrical engineering that play a crucial role in the design and operation of electrical circuits. Understanding these concepts and their applications is essential for engineers working in fields such as power electronics, communication systems, and industrial automation.

By mastering the principles of inductance and mutual inductance, engineers can design more efficient and reliable electrical systems that meet the demands of modern technology.
