Inclined Plane Examples

Inclined planes are simple machines that have been used for centuries to make work easier. They are sloping surfaces that reduce the force required to lift or move an object. Inclined plane examples can be found in various aspects of daily life, from ramps used to load trucks to staircases that help us reach different floors. Understanding the principles behind inclined planes can provide insights into how these simple machines work and their applications in modern engineering and design.

Table of Contents

Understanding Inclined Planes

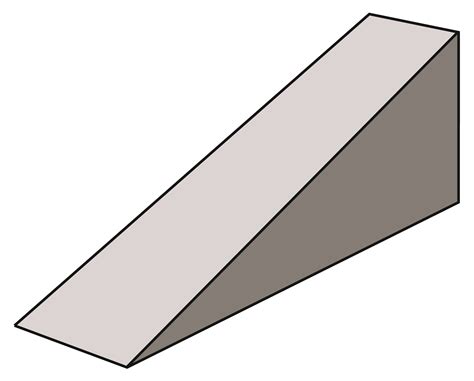

An inclined plane is a flat surface that is at an angle to the horizontal. The primary function of an inclined plane is to reduce the amount of force needed to move an object vertically. By increasing the distance over which the force is applied, the inclined plane allows for easier lifting or moving of heavy objects. The mechanical advantage of an inclined plane is determined by the ratio of the length of the incline to its height.

Inclined planes are one of the six simple machines, along with the lever, wheel and axle, pulley, wedge, and screw. Each of these machines serves to amplify force, change the direction of force, or both. Inclined planes are particularly useful in situations where vertical movement is required but direct lifting is impractical or impossible.

Inclined Plane Examples in Everyday Life

Inclined planes are ubiquitous in our daily lives, often going unnoticed due to their simplicity and widespread use. Here are some common examples:

Ramps: Ramps are perhaps the most obvious example of inclined planes. They are used to load and unload vehicles, provide wheelchair access to buildings, and facilitate the movement of heavy equipment.
Staircases: Staircases are essentially a series of inclined planes that allow us to move between different levels of a building. Each step represents a small incline that makes it easier to ascend or descend compared to climbing a vertical wall.
Slides: Playground slides are another fun example of inclined planes. They allow children to slide down from a higher level to a lower level with minimal effort.
Escalators: Escalators in shopping malls and subway stations use a moving inclined plane to transport people between floors efficiently.
Loading Docks: Loading docks in warehouses and factories often feature inclined planes to facilitate the movement of goods onto and off trucks.

Inclined Plane Examples in Engineering and Design

Inclined planes are not only found in everyday objects but also play a crucial role in engineering and design. Here are some examples:

Roads and Highways: The design of roads and highways often incorporates inclined planes to navigate changes in elevation. Gradual slopes make it easier for vehicles to ascend hills and descend into valleys.
Airplane Runways: Airplane runways are designed with a slight incline to allow for takeoff and landing. This incline helps aircraft gain speed and lift off the ground more efficiently.
Railroad Tracks: Railroad tracks often feature inclined planes to navigate through mountainous terrain. These inclines allow trains to ascend and descend hills with less energy consumption.
Construction Equipment: Construction equipment such as bulldozers and excavators use inclined planes to move earth and debris. The blades and buckets of these machines act as inclined planes, making it easier to lift and transport materials.

The Science Behind Inclined Planes

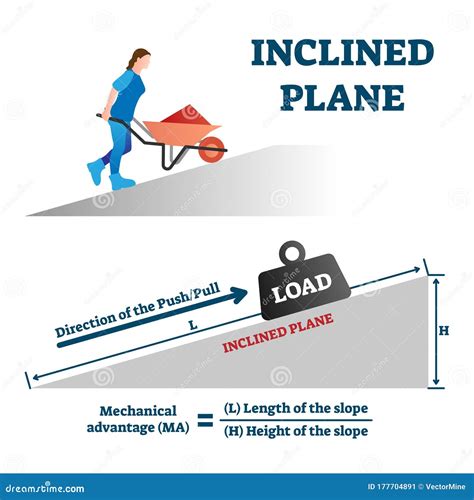

The mechanical advantage of an inclined plane can be calculated using the formula:

Mechanical Advantage (MA) = Length of Incline / Height of Incline

This formula shows that the longer the incline, the greater the mechanical advantage. However, a longer incline also means that the object must be moved over a greater distance, which can be a trade-off in terms of time and effort.

Inclined planes work by distributing the force required to move an object over a longer distance. This reduces the amount of force needed at any given point, making it easier to lift or move heavy objects. The principle of work done remains constant, but the force required is reduced by increasing the distance over which it is applied.

For example, consider a ramp that is 10 meters long and 2 meters high. The mechanical advantage of this ramp is 10/2 = 5. This means that the force required to move an object up the ramp is one-fifth of the force required to lift the object vertically.

However, it is important to note that the efficiency of an inclined plane is not 100%. Some energy is lost due to friction between the object and the incline. The actual mechanical advantage may be less than the theoretical value due to this friction.

💡 Note: The efficiency of an inclined plane can be improved by using materials with low friction coefficients or by lubricating the surface.

Inclined Plane Examples in Nature

Inclined planes are not only man-made but also occur naturally in various forms. Here are some examples of inclined planes found in nature:

Mountains and Hills: The slopes of mountains and hills are natural inclined planes. They allow for the gradual ascent and descent of animals and humans, making it easier to traverse different elevations.
River Banks: The banks of rivers often have gentle slopes that act as inclined planes. These slopes help in the gradual flow of water and prevent erosion.
Beach Shores: The shorelines of beaches are inclined planes that allow water to flow back into the sea after reaching the shore. This gradual slope helps in the deposition of sediments and the formation of sand dunes.

Inclined Plane Examples in Sports and Recreation

Inclined planes are also utilized in various sports and recreational activities. Here are some examples:

Ski Slopes: Ski slopes are designed with different inclines to provide varying levels of difficulty for skiers. The steeper the slope, the greater the challenge and thrill.
Bowling Alleys: Bowling alleys feature a slight incline that helps the ball roll smoothly towards the pins. This incline ensures that the ball maintains its momentum and speed.
Water Slides: Water slides in amusement parks use inclined planes to provide a thrilling ride. The incline allows riders to slide down quickly and safely.

Inclined Plane Examples in Industrial Applications

Inclined planes are widely used in industrial settings to facilitate the movement of materials and equipment. Here are some examples:

Conveyor Belts: Conveyor belts often feature inclined planes to transport materials to different levels within a factory or warehouse. These inclines help in the efficient movement of goods.
Grain Elevators: Grain elevators use inclined planes to lift grain from the ground level to storage silos. The incline allows for the gradual and controlled movement of grain.
Mining Operations: In mining, inclined planes are used to transport ore and other materials from the mine shaft to the surface. These inclines help in the efficient extraction and transportation of minerals.

Inclined Plane Examples in Architecture

Inclined planes are an essential element in architectural design, providing both functional and aesthetic benefits. Here are some examples:

Roofs: The roofs of buildings often feature inclined planes to allow for water drainage and prevent the accumulation of snow. The incline ensures that water flows off the roof efficiently.
Staircases: As mentioned earlier, staircases are a series of inclined planes that allow for vertical movement within a building. The design of staircases can vary widely, from simple straight flights to complex spiral designs.
Ramps for Accessibility: Ramps are used to provide wheelchair access to buildings. These ramps are designed with a gentle incline to ensure easy access for individuals with mobility challenges.

Inclined planes are also used in the design of bridges, providing a smooth transition between different elevations. The incline of a bridge helps in the efficient flow of traffic and ensures the structural stability of the bridge.

Inclined Plane Examples in Transportation

Inclined planes play a crucial role in various modes of transportation, making it easier to navigate changes in elevation. Here are some examples:

Railroad Tracks: As mentioned earlier, railroad tracks often feature inclined planes to navigate through mountainous terrain. These inclines allow trains to ascend and descend hills with less energy consumption.
Airplane Runways: Airplane runways are designed with a slight incline to allow for takeoff and landing. This incline helps aircraft gain speed and lift off the ground more efficiently.
Highways and Roads: The design of highways and roads often incorporates inclined planes to navigate changes in elevation. Gradual slopes make it easier for vehicles to ascend hills and descend into valleys.

Inclined planes are also used in the design of tunnels, providing a smooth transition between different elevations. The incline of a tunnel helps in the efficient flow of traffic and ensures the structural stability of the tunnel.

Inclined Plane Examples in Everyday Objects

Inclined planes are found in many everyday objects, often going unnoticed due to their simplicity and widespread use. Here are some examples:

Wheelchair Ramps: Wheelchair ramps are designed with a gentle incline to provide easy access for individuals with mobility challenges. These ramps ensure that wheelchair users can navigate different levels of a building with ease.
Loading Ramps: Loading ramps are used to facilitate the movement of goods onto and off trucks. These ramps are designed with an incline that makes it easier to load and unload heavy objects.
Garage Ramps: Garage ramps are used to provide easy access to vehicles. These ramps are designed with an incline that allows vehicles to be driven into the garage with minimal effort.

Inclined planes are also used in the design of furniture, providing both functional and aesthetic benefits. For example, the legs of a table or chair can be designed with an incline to provide stability and support.

Inclined Plane Examples in Education

Inclined planes are often used in educational settings to teach students about simple machines and their applications. Here are some examples:

Science Experiments: Inclined planes are used in science experiments to demonstrate the principles of work, force, and mechanical advantage. Students can build their own inclined planes using materials like cardboard, wood, or plastic.
Physics Lessons: Inclined planes are used in physics lessons to teach students about the laws of motion and energy conservation. Students can conduct experiments to measure the force required to move an object up an incline and compare it to the force required to lift the object vertically.
Engineering Projects: Inclined planes are used in engineering projects to teach students about the design and construction of simple machines. Students can build models of ramps, staircases, and other inclined plane examples to understand their applications in real-world scenarios.

Inclined planes are also used in art and design projects to teach students about the principles of form, function, and aesthetics. Students can create sculptures, installations, and other artworks that incorporate inclined planes to explore their creative potential.

Inclined Plane Examples in History

Inclined planes have been used throughout history to facilitate the movement of heavy objects and people. Here are some historical examples:

Ancient Egypt: The ancient Egyptians used inclined planes to build the pyramids. They constructed ramps to move large stone blocks to the top of the pyramids, demonstrating their understanding of simple machines.
Roman Aqueducts: The Romans used inclined planes in the construction of aqueducts to transport water over long distances. These aqueducts featured gentle slopes that allowed water to flow smoothly from one end to the other.
Medieval Castles: Medieval castles often featured inclined planes in the form of ramps and staircases. These ramps allowed for the movement of goods and people within the castle, providing both functional and defensive benefits.

Inclined planes have also been used in the construction of bridges, roads, and other infrastructure throughout history. These examples demonstrate the enduring relevance of inclined planes in engineering and design.

Inclined planes are a fundamental concept in physics and engineering, with applications ranging from simple everyday objects to complex industrial machinery. Understanding the principles behind inclined planes can provide insights into how these simple machines work and their importance in modern engineering and design.
