Building or renovating a home involves numerous decisions, and one of the critical aspects is choosing the right structural components. Among these, joists play a pivotal role in supporting the floor and ensuring the stability of the structure. Understanding the I Joist Span Chart is essential for anyone involved in construction or home improvement projects. This chart provides valuable information on the maximum span lengths for different sizes and types of I-joists, helping to ensure that your floor system is safe and compliant with building codes.
Understanding I-Joists

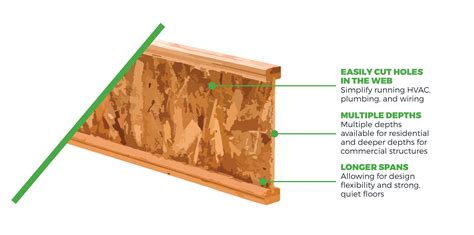

I-joists are engineered wood products designed to provide superior strength and stability compared to traditional solid wood joists. They consist of two flanges (top and bottom) made of laminated veneer lumber (LVL) or other engineered wood, connected by a web made of oriented strand board (OSB) or plywood. This design allows I-joists to span longer distances without deflection, making them ideal for open floor plans and large rooms.
Why Use an I Joist Span Chart?
The I Joist Span Chart is a crucial tool for builders, architects, and DIY enthusiasts. It helps determine the appropriate size and spacing of I-joists based on the load they need to support and the span length. Using this chart ensures that your floor system meets structural requirements and building codes, preventing issues like sagging, cracking, or even structural failure.
Key Factors to Consider
When consulting an I Joist Span Chart, several factors must be considered to ensure accurate and safe design:
- Load Requirements: The chart provides span lengths based on different load requirements, typically expressed in pounds per square foot (psf). Common load categories include live loads (moving loads like furniture) and dead loads (permanent loads like the weight of the floor itself).
- Joist Spacing: The spacing of joists affects their load-bearing capacity. Common spacings are 12”, 16”, and 24” on center. The chart will list span lengths for each spacing.
- Joist Size: I-joists come in various depths and widths. The chart will specify the maximum span for each size based on the load and spacing.
- Deflection Limits: Deflection refers to the amount of bend or sag in a joist under load. The chart will often list span lengths for different deflection limits, such as L/360 or L/480, where L is the span length.
Reading the I Joist Span Chart
To effectively use the I Joist Span Chart, follow these steps:
- Determine the Load: Calculate the total load the joists need to support, including live and dead loads. This information is often provided in building plans or can be estimated based on the intended use of the space.
- Choose the Joist Spacing: Decide on the spacing of the joists based on your design and structural requirements.
- Select the Joist Size: Based on the load, spacing, and deflection limits, choose the appropriate joist size from the chart.
- Check the Span Length: Verify that the span length of your joists does not exceed the maximum allowed by the chart for the chosen load, spacing, and size.
🔍 Note: Always round down to the nearest whole number when determining the maximum span length from the chart. For example, if the chart lists a maximum span of 19.5 feet, you should use a span of 19 feet.
Example of an I Joist Span Chart
Below is an example of what an I Joist Span Chart might look like. This chart is for illustrative purposes only and should not be used for actual construction projects.
| Joist Size | Load (psf) | Spacing (inches) | Maximum Span (feet) |
|---|---|---|---|
| 10" x 30 | 30 | 12 | 18.5 |
| 10" x 30 | 30 | 16 | 16.5 |
| 12" x 36 | 40 | 12 | 22.0 |
| 12" x 36 | 40 | 16 | 20.0 |
| 14" x 48 | 50 | 12 | 26.5 |
| 14" x 48 | 50 | 16 | 24.0 |
Common Mistakes to Avoid
When using an I Joist Span Chart, it’s essential to avoid common mistakes that could compromise the structural integrity of your floor system:
- Incorrect Load Calculation: Ensure that you accurately calculate the total load the joists need to support. Underestimating the load can lead to insufficient support and potential failure.
- Improper Joist Spacing: Always follow the recommended spacing for your joists. Incorrect spacing can affect the load-bearing capacity and deflection of the joists.
- Exceeding Maximum Span: Never exceed the maximum span length listed in the chart. Doing so can result in excessive deflection, sagging, or even structural failure.
- Ignoring Deflection Limits: Deflection limits are crucial for ensuring the comfort and safety of the occupants. Exceeding these limits can cause the floor to feel spongy or unstable.
🛠️ Note: Always consult with a structural engineer or building professional if you are unsure about any aspect of your floor system design. They can provide expert guidance and ensure that your project meets all necessary codes and standards.
Additional Considerations
In addition to using the I Joist Span Chart, there are other factors to consider when designing a floor system with I-joists:
- Bearing Walls and Supports: Ensure that I-joists are properly supported at both ends and at intermediate points if necessary. Bearing walls, beams, or other supports should be designed to handle the loads transferred from the joists.
- Notching and Boring: Be cautious when notching or boring holes in I-joists, as this can weaken their structural integrity. Follow manufacturer guidelines and building codes for any modifications.
- Sistering Joists: In some cases, it may be necessary to sister joists (attach additional joists to existing ones) to increase their load-bearing capacity. Consult the I Joist Span Chart and a structural engineer for guidance on sistering.
- Vibration and Noise: I-joists can sometimes transmit vibration and noise more readily than solid wood joists. Consider using vibration-damping materials or soundproofing techniques if noise reduction is a concern.
Using an I Joist Span Chart is a critical step in designing a safe and efficient floor system. By understanding the key factors, reading the chart accurately, and avoiding common mistakes, you can ensure that your I-joists provide the necessary support and stability for your project. Always consult with professionals when in doubt, and follow building codes and manufacturer guidelines to achieve the best results.
In summary, the I Joist Span Chart is an invaluable tool for anyone working with I-joists. It provides essential information on span lengths, load requirements, and deflection limits, helping to ensure that your floor system is safe, stable, and compliant with building codes. By carefully considering the factors outlined in this post and consulting with professionals when necessary, you can successfully design and build a floor system that meets your project’s needs and provides long-lasting performance.
