Understanding the concept of Hydrophilic Lipophilic Balance (HLB) is crucial for anyone working with emulsions, surfactants, and other related chemical systems. This balance is a measure of the degree to which a surfactant is hydrophilic or lipophilic, determining its solubility in water or oil. By grasping the fundamentals of HLB, one can optimize the performance of surfactants in various applications, from cosmetics to industrial cleaning products.
What is Hydrophilic Lipophilic Balance (HLB)?

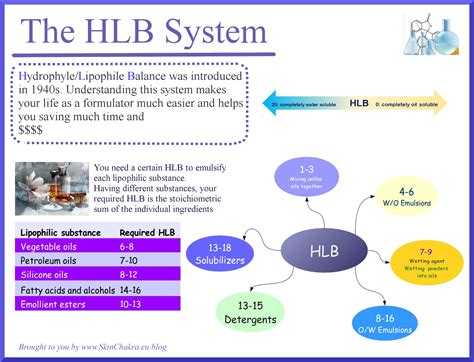

The Hydrophilic Lipophilic Balance (HLB) system is a scale that ranges from 0 to 20, where 0 represents a completely lipophilic (oil-loving) molecule and 20 represents a completely hydrophilic (water-loving) molecule. Surfactants with an HLB value between 0 and 10 are generally more lipophilic, while those between 10 and 20 are more hydrophilic. This scale helps in selecting the right surfactant for a specific application, ensuring optimal performance and stability of the emulsion.
Importance of HLB in Emulsions
Emulsions are mixtures of two immiscible liquids, typically oil and water, stabilized by surfactants. The HLB value of a surfactant plays a critical role in determining the type and stability of the emulsion formed. For example:
- Oil-in-Water (O/W) Emulsions: These emulsions require surfactants with higher HLB values, typically between 8 and 18. The surfactant helps to disperse oil droplets in a continuous water phase.
- Water-in-Oil (W/O) Emulsions: These emulsions require surfactants with lower HLB values, typically between 3 and 6. The surfactant helps to disperse water droplets in a continuous oil phase.
Choosing the right surfactant with the appropriate HLB value ensures that the emulsion is stable and does not separate over time.
Determining the HLB Value
There are several methods to determine the HLB value of a surfactant. One of the most common methods is the Griffin method, which uses the following formula:
HLB = 20 * (1 - S/A)
Where:
- S is the saponification number of the ester.
- A is the acid number of the ester.
Another method is the Davies method, which is more complex but provides a more accurate HLB value. This method takes into account the molecular structure of the surfactant and assigns specific values to different groups within the molecule.
Applications of HLB in Various Industries
The concept of Hydrophilic Lipophilic Balance is widely applied in various industries, including cosmetics, pharmaceuticals, food, and industrial cleaning. Here are some key applications:
Cosmetics and Personal Care
In the cosmetics industry, surfactants with specific HLB values are used to create stable emulsions in creams, lotions, and shampoos. For example:
- Cream and Lotions: These products often require surfactants with HLB values between 10 and 15 to create a stable oil-in-water emulsion.
- Shampoos: Surfactants with HLB values between 12 and 18 are commonly used to ensure effective cleaning and foaming.
Pharmaceuticals
In pharmaceuticals, HLB is crucial for the formulation of emulsions that deliver drugs effectively. For instance:
- Oral Emulsions: These require surfactants with specific HLB values to ensure the drug is properly dispersed and absorbed in the body.
- Topical Creams: Surfactants with appropriate HLB values help in creating stable emulsions that deliver the drug to the skin effectively.
Food Industry
In the food industry, emulsifiers with specific HLB values are used to create stable emulsions in products like mayonnaise, salad dressings, and ice cream. For example:
- Mayonnaise: This product requires surfactants with HLB values between 3 and 6 to create a stable water-in-oil emulsion.
- Salad Dressings: These often require surfactants with HLB values between 8 and 12 to create a stable oil-in-water emulsion.
Industrial Cleaning
In industrial cleaning, surfactants with specific HLB values are used to remove oil and grease from surfaces. For instance:
- Degreasers: These products require surfactants with HLB values between 10 and 15 to effectively remove oil and grease.
- Detergents: Surfactants with HLB values between 12 and 18 are commonly used to ensure effective cleaning and foaming.
Factors Affecting HLB
Several factors can affect the Hydrophilic Lipophilic Balance of a surfactant, including:
- Molecular Structure: The chemical structure of the surfactant, including the type and number of hydrophilic and lipophilic groups, significantly affects its HLB value.
- Temperature: Changes in temperature can alter the solubility of the surfactant in water or oil, affecting its HLB value.
- pH: The pH of the solution can also affect the HLB value, as it can change the ionization state of the surfactant.
- Concentration: The concentration of the surfactant in the solution can influence its HLB value, as higher concentrations can lead to micelle formation, which affects solubility.
Optimizing HLB for Specific Applications
To optimize the performance of surfactants in specific applications, it is essential to select the right surfactant with the appropriate HLB value. Here are some steps to achieve this:
- Identify the Type of Emulsion: Determine whether an oil-in-water or water-in-oil emulsion is required for the application.
- Select the Surfactant: Choose a surfactant with an HLB value that matches the required type of emulsion.
- Test the Emulsion: Conduct stability tests to ensure the emulsion remains stable over time.
- Adjust the HLB Value: If necessary, adjust the HLB value by blending surfactants with different HLB values to achieve the desired stability.
đź’ˇ Note: Blending surfactants with different HLB values can help achieve the desired emulsion stability, but it requires careful selection and testing to ensure compatibility.
Common Surfactants and Their HLB Values
Here is a table of some common surfactants and their HLB values:
| Surfactant | HLB Value |
|---|---|
| Sorbitan Monolaurate | 8.6 |
| Sorbitan Monostearate | 4.7 |
| Polyoxyethylene (20) Sorbitan Monolaurate | 16.7 |
| Polyoxyethylene (20) Sorbitan Monostearate | 14.9 |
| Sodium Lauryl Sulfate | 40 |
| Cetyl Alcohol | 15.5 |
Challenges and Considerations
While the Hydrophilic Lipophilic Balance system is a valuable tool for selecting surfactants, there are several challenges and considerations to keep in mind:
- Compatibility: Ensuring that the selected surfactant is compatible with other ingredients in the formulation is crucial for stability and performance.
- Environmental Impact: Some surfactants may have environmental concerns, such as biodegradability and toxicity, which need to be considered.
- Cost: The cost of surfactants can vary significantly, and selecting a cost-effective option without compromising performance is essential.
- Regulatory Compliance: Surfactants used in food, pharmaceuticals, and cosmetics must comply with regulatory standards, which can affect the selection process.
By carefully considering these factors, one can optimize the use of surfactants in various applications, ensuring both performance and compliance.
In conclusion, understanding the Hydrophilic Lipophilic Balance is essential for anyone working with emulsions and surfactants. By selecting the right surfactant with the appropriate HLB value, one can create stable and effective emulsions for a wide range of applications. Whether in cosmetics, pharmaceuticals, food, or industrial cleaning, the concept of HLB plays a crucial role in optimizing performance and ensuring stability. By considering the factors that affect HLB and carefully selecting surfactants, one can achieve the desired results in various industries.
