Understanding the Hydrogen Sulfide Lewis Structure is fundamental for anyone studying chemistry, particularly those delving into the properties and behaviors of molecules. Hydrogen sulfide (H₂S) is a colorless, flammable gas with a characteristic rotten egg smell. It is a crucial compound in various industrial processes and environmental studies. This blog post will guide you through the process of drawing the Lewis structure of hydrogen sulfide, explaining the steps involved, and highlighting the importance of this structure in chemical analysis.
Understanding Lewis Structures
Lewis structures, also known as Lewis dot diagrams, are graphical representations of the valence electrons in a molecule. They help visualize the bonding between atoms and the distribution of electrons. Each dot represents a valence electron, and lines between atoms represent covalent bonds. Understanding Lewis structures is essential for predicting molecular geometry, polarity, and reactivity.
The Basics of Hydrogen Sulfide
Hydrogen sulfide is composed of two hydrogen atoms and one sulfur atom. The molecular formula for hydrogen sulfide is H₂S. To draw the Lewis structure, we need to consider the valence electrons of each atom:
- Hydrogen has 1 valence electron.
- Sulfur has 6 valence electrons.
Therefore, the total number of valence electrons in a hydrogen sulfide molecule is:
2 (from hydrogen) + 6 (from sulfur) = 8 valence electrons.
Drawing the Hydrogen Sulfide Lewis Structure
To draw the Lewis structure of hydrogen sulfide, follow these steps:
- Identify the central atom: In H₂S, sulfur (S) is the central atom because it is the least electronegative and can form more bonds.
- Arrange the atoms: Place the sulfur atom in the center and the two hydrogen atoms on either side.
- Count the valence electrons: As calculated earlier, there are 8 valence electrons in total.
- Form bonds: Each hydrogen atom needs 2 electrons to complete its valence shell. Place 2 electrons between each hydrogen atom and the sulfur atom to form single covalent bonds. This uses 4 of the 8 valence electrons.
- Distribute remaining electrons: The remaining 4 electrons are placed around the sulfur atom to complete its octet. These electrons are represented as lone pairs.

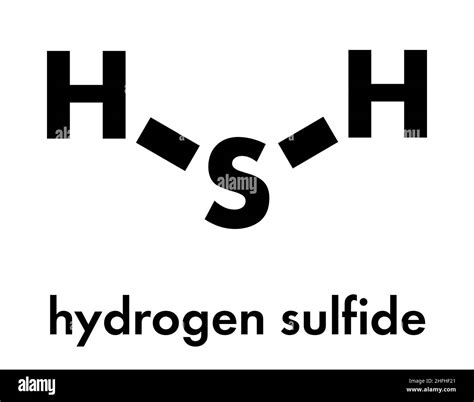

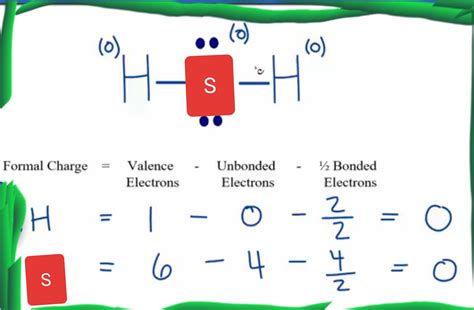

Here is the completed Lewis structure of hydrogen sulfide:
Importance of the Hydrogen Sulfide Lewis Structure
The Lewis structure of hydrogen sulfide provides valuable insights into its chemical properties and behavior. Some key points include:
- Bonding and Geometry: The Lewis structure shows that hydrogen sulfide has two single bonds and two lone pairs on the sulfur atom. This configuration leads to a bent molecular geometry, which is crucial for understanding its reactivity and physical properties.
- Polarity: The presence of lone pairs on the sulfur atom and the difference in electronegativity between sulfur and hydrogen make hydrogen sulfide a polar molecule. This polarity affects its solubility and reactivity in various chemical reactions.
- Acid-Base Properties: Hydrogen sulfide can act as a weak acid in water, dissociating to form hydrogen ions (H⁺) and sulfide ions (S²⁻). Understanding its Lewis structure helps in predicting its behavior in acid-base reactions.
Comparing Hydrogen Sulfide with Water
Comparing the Lewis structures of hydrogen sulfide and water (H₂O) can provide further insights into their properties. Both molecules have similar structures but differ in their central atoms and the number of lone pairs.
| Molecule | Central Atom | Number of Lone Pairs | Molecular Geometry |
|---|---|---|---|
| Hydrogen Sulfide (H₂S) | Sulfur (S) | 2 | Bent |
| Water (H₂O) | Oxygen (O) | 2 | Bent |
Despite having the same number of lone pairs, the difference in electronegativity between sulfur and oxygen affects the polarity and reactivity of these molecules. Oxygen is more electronegative than sulfur, making water a stronger hydrogen bond donor and acceptor compared to hydrogen sulfide.
💡 Note: The polarity of hydrogen sulfide is lower than that of water due to the lower electronegativity of sulfur compared to oxygen. This difference affects their solubility and reactivity in various chemical environments.
Applications of Hydrogen Sulfide
Hydrogen sulfide has several important applications in various industries:
- Chemical Industry: It is used in the production of sulfuric acid, which is a key component in many industrial processes.
- Pharmaceuticals: Hydrogen sulfide is involved in the synthesis of certain drugs and pharmaceutical compounds.
- Environmental Studies: It is a significant component in the study of environmental pollution and the sulfur cycle.
- Geology: Hydrogen sulfide is found in natural gas deposits and is used as an indicator of geological processes.
Understanding the Hydrogen Sulfide Lewis Structure is crucial for appreciating its role in these applications and for predicting its behavior in chemical reactions.
In summary, the Lewis structure of hydrogen sulfide provides a clear visual representation of its bonding and electron distribution. This structure is essential for understanding its molecular geometry, polarity, and reactivity. By comparing it with other molecules like water, we gain deeper insights into the properties and behaviors of hydrogen sulfide. Its applications in various industries highlight the importance of studying its chemical structure and properties.
