Hydrogen Fluoride Lewis Structure

Understanding the Hydrogen Fluoride Lewis Structure is fundamental for anyone studying chemistry, as it provides insights into the bonding and properties of this simple yet important compound. Hydrogen fluoride (HF) is a diatomic molecule consisting of one hydrogen atom and one fluorine atom. Its Lewis structure helps us visualize how electrons are arranged around the atoms, which in turn explains its chemical behavior.

What is a Lewis Structure?

A Lewis structure, also known as a Lewis dot diagram, is a diagrammatic representation of the valence electrons in a molecule. It shows how atoms are bonded together and how electrons are distributed around them. The structure helps in understanding the molecular geometry, polarity, and reactivity of compounds.

Understanding Hydrogen Fluoride

Hydrogen fluoride is a colorless gas at room temperature and pressure, but it can be liquefied under specific conditions. It is highly reactive and is used in various industrial applications, including the production of refrigerants and the etching of glass. The molecule is polar due to the electronegativity difference between hydrogen and fluorine.

Drawing the Hydrogen Fluoride Lewis Structure

To draw the Hydrogen Fluoride Lewis Structure, follow these steps:

• Identify the total number of valence electrons for both atoms. Hydrogen has 1 valence electron, and fluorine has 7 valence electrons.
• Determine the total number of valence electrons in the molecule. For HF, this is 1 (from hydrogen) + 7 (from fluorine) = 8 valence electrons.
• Place the atoms next to each other. Hydrogen is typically written on the left, and fluorine on the right.
• Draw a single bond between the hydrogen and fluorine atoms. This bond represents 2 shared electrons.
• Distribute the remaining valence electrons around the fluorine atom to complete its octet. Fluorine needs 8 electrons to achieve a stable configuration.

Here is the step-by-step process visually represented:

Electronegativity and Bond Polarity

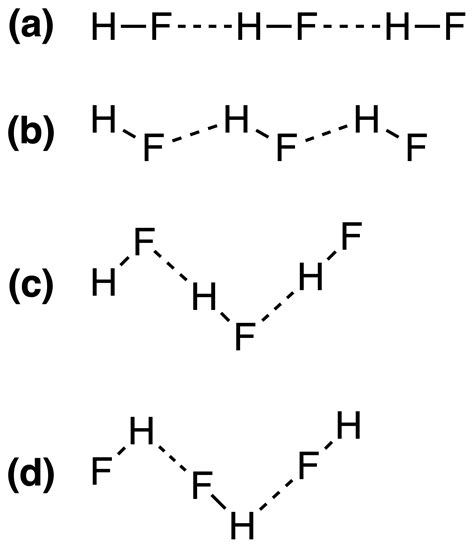

Fluorine is the most electronegative element on the periodic table, meaning it has a strong tendency to attract electrons towards itself. In the HF molecule, the shared electron pair is pulled more towards the fluorine atom, creating a polar covalent bond. This polarity is crucial for understanding the properties of hydrogen fluoride, such as its high boiling point and solubility in water.

Molecular Geometry

The molecular geometry of HF is linear, with the hydrogen and fluorine atoms aligned in a straight line. This geometry is a result of the single bond between the atoms and the lone pairs on the fluorine atom. The linear geometry contributes to the molecule’s polarity, as the dipole moment is aligned along the bond axis.

Properties of Hydrogen Fluoride

Hydrogen fluoride exhibits several unique properties due to its polar nature and strong hydrogen bonding:

• High Boiling Point: Despite being a small molecule, HF has a relatively high boiling point (19.5°C) compared to other hydrogen halides. This is due to the strong intermolecular hydrogen bonding.
• Solubility: HF is highly soluble in water, forming hydrofluoric acid, which is a strong acid. This solubility is a result of the polar nature of the HF molecule and its ability to form hydrogen bonds with water molecules.
• Corrosive Nature: Hydrofluoric acid is extremely corrosive and can dissolve glass and many metals. This property makes it useful in industrial applications but also dangerous to handle.

Applications of Hydrogen Fluoride

Hydrogen fluoride has various industrial applications due to its chemical properties:

• Etching Glass: HF is used to etch glass and silicon wafers in the semiconductor industry. Its ability to dissolve silica makes it an effective etching agent.
• Production of Refrigerants: HF is a key component in the production of refrigerants, such as chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs).
• Fluorination Reactions: HF is used in fluorination reactions to introduce fluorine atoms into organic compounds. This is important in the synthesis of pharmaceuticals and other chemicals.

Safety Considerations

Handling hydrogen fluoride requires strict safety precautions due to its corrosive and toxic nature. Some key safety considerations include:

• Personal Protective Equipment (PPE): Always use appropriate PPE, including gloves, goggles, and lab coats, when handling HF.
• Ventilation: Work in a well-ventilated area or under a fume hood to prevent inhalation of HF vapors.
• Emergency Procedures: Have emergency procedures in place, including access to a safety shower and eye wash station, in case of accidental exposure.

🛑 Note: In case of accidental exposure to HF, seek immediate medical attention. HF can cause severe burns and tissue damage, and prompt treatment is crucial.

Comparing Hydrogen Fluoride with Other Hydrogen Halides

Hydrogen fluoride differs from other hydrogen halides (HCl, HBr, HI) in several ways due to the unique properties of fluorine:

The high boiling point and solubility of HF are due to the strong hydrogen bonding between molecules, which is not as pronounced in the other hydrogen halides. This makes HF unique among the hydrogen halides and highlights the importance of understanding its Hydrogen Fluoride Lewis Structure.

In summary, the Hydrogen Fluoride Lewis Structure provides a clear understanding of the bonding and properties of this important compound. By visualizing the electron distribution and molecular geometry, we can explain the unique characteristics of HF, such as its polarity, high boiling point, and corrosive nature. This knowledge is essential for anyone studying chemistry or working with HF in industrial applications. Understanding the Lewis structure of HF also helps in comparing it with other hydrogen halides and appreciating the role of fluorine’s high electronegativity in determining the compound’s properties.
