Hydraulic systems are the backbone of many industrial and mechanical applications, providing the power and precision needed to perform a wide range of tasks. At the heart of these systems lies the Hydraulic Power Unit (HPU), a critical component that generates and controls the flow of hydraulic fluid. Understanding the intricacies of HPUs is essential for anyone involved in the design, maintenance, or operation of hydraulic systems.
What is a Hydraulic Power Unit?

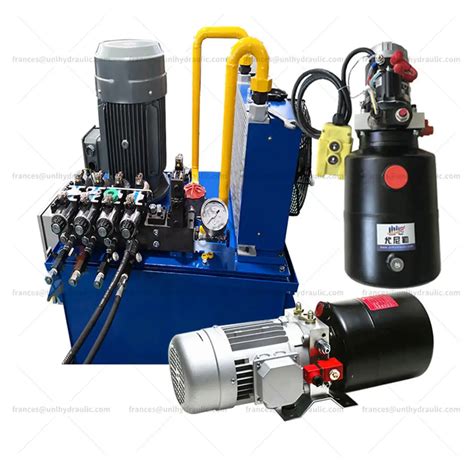

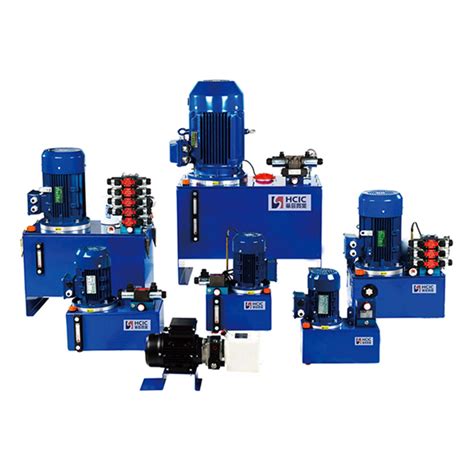

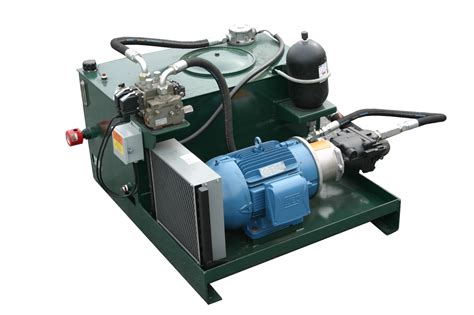

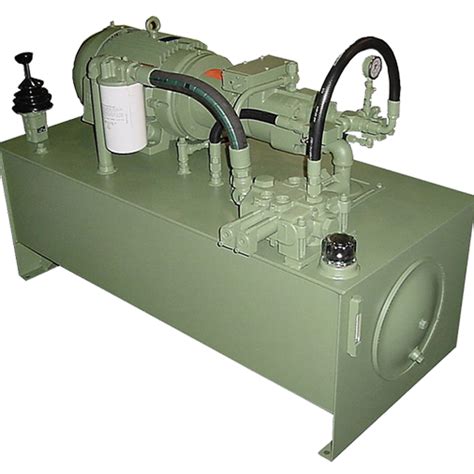

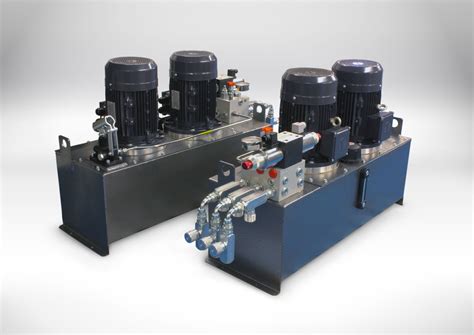

A Hydraulic Power Unit (HPU) is a self-contained system that generates hydraulic power. It typically consists of a motor, a hydraulic pump, a reservoir for hydraulic fluid, and various control valves. The HPU converts mechanical energy from the motor into hydraulic energy, which is then used to power hydraulic actuators, cylinders, and other components. The efficiency and reliability of an HPU are crucial for the overall performance of the hydraulic system.
Components of a Hydraulic Power Unit
The key components of a Hydraulic Power Unit include:
- Motor: Provides the mechanical energy to drive the hydraulic pump. Common types include electric motors, diesel engines, and gasoline engines.
- Hydraulic Pump: Converts mechanical energy into hydraulic energy by pumping fluid through the system. Types include gear pumps, vane pumps, and piston pumps.
- Reservoir: Stores the hydraulic fluid and ensures a steady supply to the pump. It also helps dissipate heat generated by the system.
- Control Valves: Regulate the flow and pressure of the hydraulic fluid, directing it to the appropriate actuators or cylinders.
- Filters: Remove contaminants from the hydraulic fluid to maintain system cleanliness and prevent damage to components.
- Cooling System: Dissipates heat generated by the hydraulic fluid and components, ensuring optimal performance and longevity.
Types of Hydraulic Power Units
Hydraulic Power Units come in various configurations to suit different applications. The main types include:

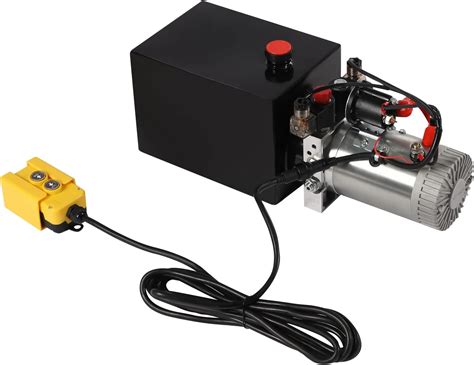

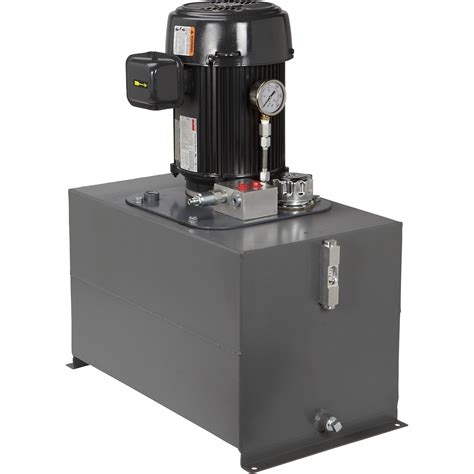

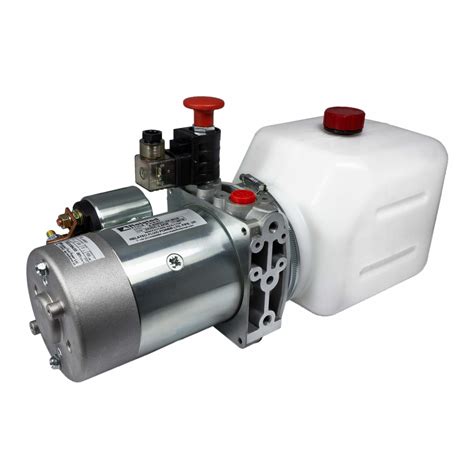

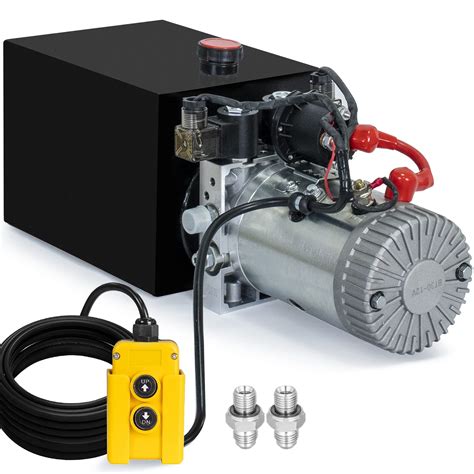

- Electric Hydraulic Power Units: Use electric motors to drive the hydraulic pump. These are commonly used in industrial machinery, construction equipment, and mobile applications.
- Diesel Hydraulic Power Units: Powered by diesel engines, these units are often used in heavy-duty applications such as mining, agriculture, and construction.
- Gasoline Hydraulic Power Units: Utilize gasoline engines and are typically used in smaller, portable applications.
- Pneumatic Hydraulic Power Units: Use compressed air to drive the hydraulic pump, often found in applications where electrical power is not available or safe.
Applications of Hydraulic Power Units
Hydraulic Power Units are used in a wide range of industries and applications, including:
- Industrial Machinery: Used in manufacturing processes, assembly lines, and material handling equipment.
- Construction Equipment: Power hydraulic systems in excavators, cranes, and bulldozers.
- Agriculture: Drive hydraulic systems in tractors, harvesters, and other farming equipment.
- Aerospace: Used in aircraft landing gear, braking systems, and flight control surfaces.
- Automotive: Power hydraulic systems in vehicles, including power steering and braking systems.
- Marine: Used in ship steering systems, anchor handling, and cargo handling equipment.
Design Considerations for Hydraulic Power Units
Designing an effective Hydraulic Power Unit involves several key considerations:
- Power Requirements: Determine the power needed to drive the hydraulic system based on the application's requirements.
- Flow Rate: Calculate the required flow rate of hydraulic fluid to ensure adequate performance.
- Pressure Requirements: Specify the pressure needed to operate the hydraulic actuators and cylinders.
- Efficiency: Optimize the design for energy efficiency to reduce operating costs and environmental impact.
- Reliability: Ensure the HPU is designed for long-term reliability and minimal downtime.
- Safety: Incorporate safety features such as pressure relief valves, emergency stop switches, and leak detection systems.
Additionally, the selection of materials and components is crucial. High-quality materials and components can enhance the durability and performance of the HPU. Regular maintenance and inspections are also essential to ensure the HPU operates efficiently and safely.
Maintenance of Hydraulic Power Units
Maintaining a Hydraulic Power Unit involves several key steps to ensure optimal performance and longevity:
- Regular Inspections: Conduct routine inspections of all components, including the motor, pump, valves, and filters.
- Fluid Changes: Regularly change the hydraulic fluid to remove contaminants and maintain system cleanliness.
- Filter Replacement: Replace filters as recommended by the manufacturer to prevent clogging and ensure proper fluid flow.
- Cooling System Maintenance: Clean and maintain the cooling system to dissipate heat effectively.
- Lubrication: Ensure all moving parts are properly lubricated to reduce wear and tear.
- Pressure Checks: Regularly check the system pressure to ensure it operates within the specified range.
🔧 Note: Always follow the manufacturer's guidelines for maintenance and use only recommended fluids and components.
Troubleshooting Common Issues
Despite regular maintenance, issues can still arise with Hydraulic Power Units. Common problems and their potential solutions include:
| Issue | Potential Cause | Solution |
|---|---|---|
| Low Pressure | Worn pump, clogged filters, or air in the system | Replace worn components, clean or replace filters, and bleed the system |
| High Pressure | Blocked lines, faulty relief valves, or incorrect fluid viscosity | Check for blockages, replace faulty valves, and use the correct fluid |
| Leaks | Worn seals, damaged hoses, or loose fittings | Replace seals, repair or replace hoses, and tighten fittings |
| Overheating | Insufficient cooling, high fluid viscosity, or excessive load | Improve cooling, use the correct fluid, and reduce load if possible |
| Noise | Air in the system, worn components, or cavitation | Bleed the system, replace worn components, and address cavitation issues |
Regular monitoring and prompt troubleshooting can prevent minor issues from becoming major problems, ensuring the HPU operates smoothly and efficiently.
Future Trends in Hydraulic Power Units
The field of hydraulic power is continually evolving, driven by advancements in technology and increasing demands for efficiency and sustainability. Some of the future trends in Hydraulic Power Units include:
- Energy Efficiency: Development of more energy-efficient pumps and motors to reduce power consumption and operating costs.
- Smart Technology: Integration of IoT and smart sensors for real-time monitoring, predictive maintenance, and remote diagnostics.
- Sustainable Materials: Use of eco-friendly materials and fluids to reduce environmental impact.
- Compact Designs: Innovations in design to create more compact and lightweight HPUs for space-constrained applications.
- Advanced Controls: Implementation of advanced control systems for precise and responsive operation.
These trends are shaping the future of hydraulic power, making systems more efficient, reliable, and environmentally friendly.
In conclusion, the Hydraulic Power Unit is a vital component in many industrial and mechanical applications, providing the power and precision needed for a wide range of tasks. Understanding the components, types, applications, design considerations, maintenance, and troubleshooting of HPUs is essential for ensuring optimal performance and longevity. As technology advances, the future of hydraulic power looks promising, with innovations in energy efficiency, smart technology, and sustainable materials driving the industry forward. By staying informed and adopting best practices, professionals can maximize the benefits of hydraulic power in their operations.
