Understanding the Hydraulic Grade Line (HGL) is crucial for anyone involved in fluid mechanics, civil engineering, or hydrology. The HGL is a fundamental concept that helps engineers and scientists analyze and design systems involving the flow of liquids, particularly water. This post will delve into the intricacies of the Hydraulic Grade Line, its significance, how to calculate it, and its applications in various fields.
What is the Hydraulic Grade Line?

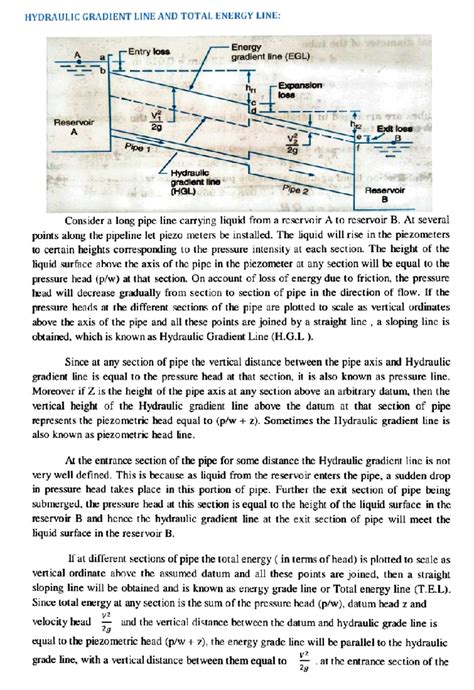

The Hydraulic Grade Line is an imaginary line that represents the total head of a fluid at various points in a system. It is essentially the elevation to which water would rise in a piezometer (a small tube inserted into the flow) at any given point. The HGL is a critical tool for understanding the energy and pressure distribution within a fluid system.
Importance of the Hydraulic Grade Line
The HGL is important for several reasons:
- Pressure Distribution: It helps in determining the pressure at different points in a pipeline or channel.
- Energy Analysis: It aids in analyzing the energy losses and gains in a fluid system.
- Design and Optimization: It is essential for designing and optimizing pipelines, channels, and other fluid conveyance systems.
- Troubleshooting: It assists in identifying and troubleshooting issues such as leaks, blockages, and inefficiencies in fluid systems.
Calculating the Hydraulic Grade Line
Calculating the HGL involves understanding the total head of the fluid, which includes the elevation head, pressure head, and velocity head. The total head (H) at any point in a system can be expressed as:
H = z + P/γ + v²/2g
- z is the elevation head (height above a reference datum).
- P/γ is the pressure head (pressure divided by the specific weight of the fluid).
- v²/2g is the velocity head (kinetic energy per unit weight of the fluid).
To calculate the HGL, you need to determine the total head at various points along the flow path and plot these values against the distance or elevation. The resulting line is the Hydraulic Grade Line.
Factors Affecting the Hydraulic Grade Line
Several factors can influence the HGL, including:
- Elevation Changes: Changes in the elevation of the pipeline or channel will affect the HGL.
- Pressure Variations: Variations in pressure due to pumps, valves, or other devices will alter the HGL.
- Flow Rate: The velocity of the fluid, which is directly related to the flow rate, impacts the velocity head and thus the HGL.
- Friction Losses: Energy losses due to friction in the pipeline or channel will cause the HGL to drop.
- Minor Losses: Losses due to bends, fittings, and other obstructions will also affect the HGL.
Applications of the Hydraulic Grade Line
The HGL has wide-ranging applications in various fields:
- Water Supply Systems: Engineers use the HGL to design and analyze water distribution networks, ensuring adequate pressure and flow at all points.
- Sewer Systems: In sewer design, the HGL helps in maintaining proper flow and preventing backups.
- Irrigation Systems: The HGL is used to design efficient irrigation channels and pipelines, ensuring uniform water distribution.
- Hydropower Plants: In hydropower systems, the HGL is crucial for determining the available head and optimizing turbine performance.
- Industrial Processes: In industries involving fluid transport, the HGL aids in designing and optimizing pipelines and process systems.
Example Calculation of the Hydraulic Grade Line
Let’s consider a simple example to illustrate the calculation of the HGL. Suppose we have a pipeline with the following characteristics:
| Point | Elevation (z) (m) | Pressure (P) (Pa) | Velocity (v) (m/s) |
|---|---|---|---|
| A | 10 | 200,000 | 2 |
| B | 15 | 150,000 | 2.5 |
| C | 20 | 100,000 | 3 |
Assuming the specific weight of water (γ) is 9,810 N/m³ and the acceleration due to gravity (g) is 9.81 m/s², we can calculate the total head at each point:
H_A = 10 + (200,000 / 9,810) + (2² / (2 * 9.81)) = 10 + 20.39 + 0.20 = 30.59 m
H_B = 15 + (150,000 / 9,810) + (2.5² / (2 * 9.81)) = 15 + 15.29 + 0.32 = 30.61 m
H_C = 20 + (100,000 / 9,810) + (3² / (2 * 9.81)) = 20 + 10.19 + 0.46 = 30.65 m
Plotting these values against the distance or elevation will give us the HGL for this pipeline.
💡 Note: In real-world applications, the HGL may need to account for additional factors such as friction losses, minor losses, and changes in flow rate.
Interpreting the Hydraulic Grade Line
Interpreting the HGL involves understanding the energy distribution and pressure variations along the flow path. Here are some key points to consider:
- Slope of the HGL: A steep slope indicates a high rate of energy loss, which could be due to friction, obstructions, or other factors.
- Changes in Elevation: The HGL will rise or fall with changes in elevation, reflecting the potential energy of the fluid.
- Pressure Variations: Increases or decreases in pressure will cause the HGL to rise or fall, respectively.
- Flow Rate Changes: Changes in flow rate will affect the velocity head and thus the HGL.
Common Mistakes in Hydraulic Grade Line Analysis
When analyzing the HGL, it’s important to avoid common mistakes that can lead to inaccurate results:
- Ignoring Friction Losses: Friction losses can significantly affect the HGL, especially in long pipelines or channels.
- Overlooking Minor Losses: Minor losses due to bends, fittings, and other obstructions can add up and impact the HGL.
- Incorrect Pressure Measurements: Inaccurate pressure measurements can lead to errors in calculating the HGL.
- Assuming Uniform Flow: Assuming uniform flow when there are variations in flow rate can result in incorrect HGL calculations.
💡 Note: Always verify your calculations and consider all relevant factors to ensure accurate HGL analysis.
Advanced Topics in Hydraulic Grade Line Analysis
For more complex systems, advanced topics in HGL analysis may be necessary:
- Unsteady Flow: In systems with varying flow rates, unsteady flow analysis is required to accurately determine the HGL.
- Compressible Fluids: For gases or other compressible fluids, the HGL analysis must account for changes in density and compressibility.
- Network Analysis: In complex networks of pipelines or channels, network analysis techniques are used to determine the HGL at various points.
- Numerical Modeling: Advanced numerical modeling tools can simulate fluid flow and calculate the HGL for complex systems.
These advanced topics require a deeper understanding of fluid mechanics and may involve the use of specialized software and tools.
Case Studies in Hydraulic Grade Line Application
To illustrate the practical application of the HGL, let’s consider a couple of case studies:
Water Distribution Network
In a water distribution network, the HGL is used to ensure adequate pressure and flow at all points. Engineers calculate the HGL at various nodes and junctions to design the system and optimize pump operations. By analyzing the HGL, they can identify areas with low pressure or insufficient flow and make necessary adjustments.
Irrigation Canal Design
In irrigation canal design, the HGL helps in maintaining uniform water distribution. Engineers use the HGL to determine the appropriate slope and dimensions of the canal, ensuring that water reaches all fields with the required flow rate. By analyzing the HGL, they can also identify potential issues such as sedimentation or erosion and implement corrective measures.
These case studies demonstrate the practical importance of the HGL in real-world applications.
In conclusion, the Hydraulic Grade Line is a fundamental concept in fluid mechanics that plays a crucial role in the design, analysis, and optimization of fluid systems. By understanding the HGL, engineers and scientists can ensure efficient and effective fluid transport, whether in water supply systems, sewer networks, irrigation channels, or industrial processes. The HGL provides valuable insights into pressure distribution, energy losses, and flow characteristics, making it an indispensable tool in various fields. Accurate calculation and interpretation of the HGL require consideration of all relevant factors, including elevation changes, pressure variations, flow rate, and energy losses. By avoiding common mistakes and applying advanced analysis techniques when necessary, professionals can leverage the HGL to design and optimize complex fluid systems effectively.
