The world of automotive engineering is a fascinating blend of mechanical and hydraulic systems, each playing a crucial role in the overall performance and safety of vehicles. Among these systems, the Hydraulic Brake System stands out as one of the most critical components. This system is responsible for converting the force applied to the brake pedal into the hydraulic pressure needed to stop the vehicle efficiently and safely. Understanding the intricacies of the Hydraulic Brake System is essential for anyone interested in automotive mechanics or vehicle safety.
Understanding the Basics of a Hydraulic Brake System
A Hydraulic Brake System operates on the principle of Pascal's Law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. This principle allows the brake system to amplify the force exerted by the driver's foot on the brake pedal, making it possible to stop a vehicle effectively. The key components of a Hydraulic Brake System include:
- The brake pedal
- The brake booster
- The master cylinder
- The brake lines
- The brake calipers and wheel cylinders
- The brake pads and shoes
- The brake rotors and drums
Each of these components plays a vital role in the overall functioning of the brake system. The brake pedal is the point of contact for the driver, while the brake booster amplifies the force applied to the pedal. The master cylinder converts this force into hydraulic pressure, which is then transmitted through the brake lines to the brake calipers and wheel cylinders. These components, in turn, apply pressure to the brake pads and shoes, which press against the brake rotors and drums to slow down or stop the vehicle.
How a Hydraulic Brake System Works
The operation of a Hydraulic Brake System can be broken down into several key steps:
- The driver presses the brake pedal, which activates the brake booster.
- The brake booster amplifies the force applied to the pedal and transmits it to the master cylinder.
- The master cylinder converts the mechanical force into hydraulic pressure, which is then distributed through the brake lines.
- The hydraulic pressure reaches the brake calipers and wheel cylinders, which apply pressure to the brake pads and shoes.
- The brake pads and shoes press against the brake rotors and drums, creating friction that slows down or stops the vehicle.
This process is repeated every time the brake pedal is pressed, ensuring that the vehicle can be stopped safely and efficiently.
🔧 Note: Regular maintenance of the Hydraulic Brake System is crucial for ensuring its optimal performance. This includes checking the brake fluid level, inspecting the brake lines for leaks, and replacing worn-out brake pads and shoes.
Types of Hydraulic Brake Systems
There are several types of Hydraulic Brake Systems, each designed to meet specific performance and safety requirements. The most common types include:
- Disc Brake Systems
- Drum Brake Systems
- Anti-Lock Braking Systems (ABS)
- Electronic Stability Control (ESC) Systems
Disc brake systems are widely used in modern vehicles due to their superior stopping power and durability. They consist of brake rotors, brake calipers, and brake pads. When the brake pedal is pressed, the brake calipers apply pressure to the brake pads, which press against the brake rotors to create friction and slow down the vehicle.
Drum brake systems, on the other hand, use brake drums and brake shoes. When the brake pedal is pressed, the brake shoes are forced against the brake drums, creating friction that slows down the vehicle. Drum brake systems are generally less expensive and simpler to maintain than disc brake systems, but they are less effective in wet conditions.
Anti-Lock Braking Systems (ABS) are designed to prevent the wheels from locking up during hard braking, which can cause the vehicle to skid and lose control. ABS uses sensors to monitor the speed of each wheel and adjusts the brake pressure accordingly to maintain traction and stability.
Electronic Stability Control (ESC) systems build on the functionality of ABS by adding additional sensors and control mechanisms. ESC systems can detect when the vehicle is losing control and apply individual brakes to correct the trajectory, helping to prevent accidents.
Maintenance and Troubleshooting of Hydraulic Brake Systems
Regular maintenance of the Hydraulic Brake System is essential for ensuring its reliability and performance. Some key maintenance tasks include:
- Checking the brake fluid level and condition
- Inspecting the brake lines for leaks or damage
- Replacing worn-out brake pads and shoes
- Bleeding the brake system to remove air bubbles
- Inspecting the brake rotors and drums for wear and tear
If you notice any issues with your Hydraulic Brake System, such as a spongy brake pedal, grinding noises, or reduced braking performance, it is important to address them promptly. Common problems and their solutions include:
| Problem | Possible Cause | Solution |
|---|---|---|
| Spongy Brake Pedal | Air in the brake lines | Bleed the brake system |
| Grinding Noises | Worn-out brake pads or shoes | Replace the brake pads or shoes |
| Reduced Braking Performance | Leaking brake lines or master cylinder | Inspect and repair or replace the damaged components |
🛠️ Note: Always consult a professional mechanic if you are unsure about any aspect of brake system maintenance or repair. Improper handling of brake components can compromise your safety.
Advancements in Hydraulic Brake Technology
The field of automotive engineering is constantly evolving, and Hydraulic Brake Systems are no exception. Recent advancements in brake technology have focused on improving performance, safety, and efficiency. Some of the latest developments include:
- Electronic Brake Force Distribution (EBD)
- Brake Assist Systems
- Regenerative Braking Systems
Electronic Brake Force Distribution (EBD) systems use sensors to monitor the weight distribution of the vehicle and adjust the brake pressure accordingly. This ensures that the brakes are applied evenly, reducing the risk of skidding and improving overall stability.
Brake Assist Systems are designed to enhance the effectiveness of emergency braking. These systems detect when the driver is applying maximum brake pressure and automatically apply additional force to the brakes, helping to shorten the stopping distance.
Regenerative Braking Systems are commonly found in electric and hybrid vehicles. These systems capture the energy generated during braking and store it in the vehicle's battery, improving fuel efficiency and reducing wear on the brake components.
These advancements, along with ongoing research and development, continue to push the boundaries of what is possible with Hydraulic Brake Systems, making vehicles safer and more efficient than ever before.

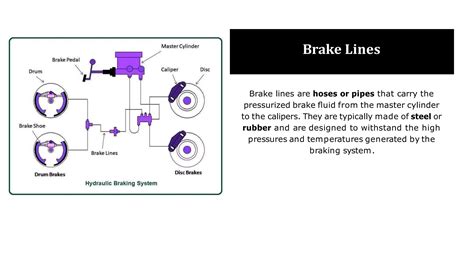

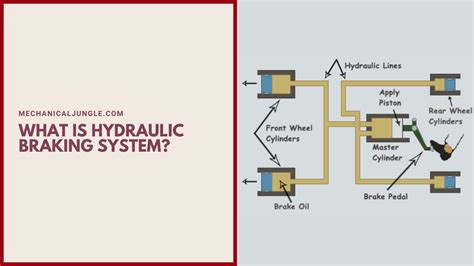

This diagram illustrates the key components of a typical Hydraulic Brake System, highlighting the flow of hydraulic pressure from the master cylinder to the brake calipers and wheel cylinders.

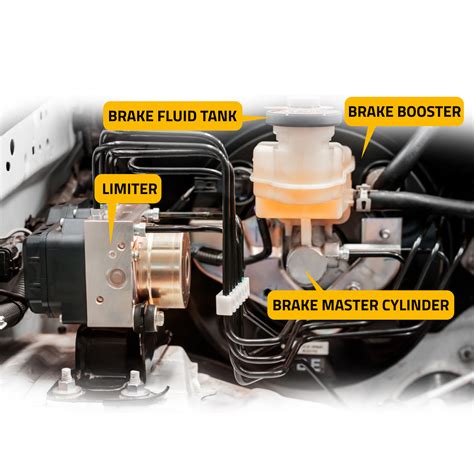

Modern brake systems incorporate advanced technologies such as ABS, ESC, and regenerative braking to enhance performance and safety.
In wrapping up, the Hydraulic Brake System is a cornerstone of automotive safety and performance. From its basic components and operation to the latest advancements in brake technology, understanding this system is crucial for anyone involved in automotive engineering or vehicle maintenance. Regular maintenance and prompt troubleshooting are essential for ensuring the reliability and effectiveness of the brake system, while ongoing innovations continue to push the boundaries of what is possible in brake technology. By staying informed and proactive, vehicle owners and mechanics can ensure that their Hydraulic Brake Systems operate at peak performance, providing a safe and reliable driving experience.
