Understanding the HR Diagram Labeled is fundamental for anyone delving into the fascinating world of astronomy. The Hertzsprung-Russell (HR) diagram is a scatter plot of stars showing the relationship between the stars' absolute magnitudes or luminosities versus their stellar classifications or effective temperatures. This diagram is a powerful tool for astronomers to classify stars and understand their evolution.

Table of Contents

What is an HR Diagram?

The HR diagram was independently developed by Ejnar Hertzsprung and Henry Norris Russell in the early 20th century. It plots stars based on their luminosity (or absolute magnitude) against their spectral type (or effective temperature). The diagram helps astronomers categorize stars into different groups based on their properties.

Components of an HR Diagram

An HR diagram typically includes several key components:

Luminosity or Absolute Magnitude: This is the intrinsic brightness of a star, measured on a logarithmic scale. It indicates how much energy the star emits per unit time.
Spectral Type or Effective Temperature: This is a classification of stars based on their spectral characteristics, which are closely related to their surface temperature. The spectral types range from O (hottest) to M (coolest).
Main Sequence: This is the diagonal band running from the top left to the bottom right of the diagram. Stars on the main sequence are in the hydrogen-burning phase of their lives.
Red Giants: These are stars that have exhausted their core hydrogen and have moved off the main sequence. They are much larger and cooler than main-sequence stars.
White Dwarfs: These are the remnants of low- to medium-mass stars that have exhausted their nuclear fuel. They are very hot but have low luminosity due to their small size.
Supergiants: These are extremely luminous and large stars that are in the late stages of stellar evolution. They are rare but very bright.

Interpreting an HR Diagram Labeled

Interpreting an HR Diagram Labeled involves understanding the positions of stars on the diagram and what these positions reveal about their properties and evolutionary stages. Here are some key points to consider:

Main Sequence Stars: Most stars, including our Sun, are found on the main sequence. These stars are in the hydrogen-burning phase, converting hydrogen into helium in their cores. The position of a star on the main sequence indicates its mass and temperature.
Red Giants: Stars that have left the main sequence and moved to the right on the HR diagram are red giants. These stars have exhausted their core hydrogen and have expanded significantly, becoming cooler and more luminous.
White Dwarfs: These stars are found in the bottom left of the HR diagram. They are the remnants of low- to medium-mass stars that have shed their outer layers and are now cooling down. Despite their high temperature, their small size makes them less luminous.
Supergiants: Located at the top right of the HR diagram, supergiants are extremely luminous and large stars. They are in the late stages of stellar evolution and will eventually explode as supernovae.

Here is a simple example of an HR diagram labeled with the key components:

Luminosity (Absolute Magnitude)	Spectral Type (Effective Temperature)
High	O, B (Hot)
Medium	A, F, G (Warm)
Low	K, M (Cool)

This table provides a basic overview of how stars are categorized on an HR diagram. The actual diagram is more detailed and includes a continuous spectrum of stars.

Evolutionary Tracks on an HR Diagram

Stars evolve over time, and their positions on the HR diagram change as they age. Understanding these evolutionary tracks helps astronomers predict the future of stars and understand their past. Here are some key evolutionary stages:

Pre-Main Sequence: Stars begin their lives as protostars, collapsing under gravity and heating up. They move towards the main sequence as they start nuclear fusion.
Main Sequence: Stars spend most of their lives on the main sequence, fusing hydrogen into helium. The position on the main sequence depends on the star's mass.
Post-Main Sequence: After exhausting their core hydrogen, stars move off the main sequence. Low- to medium-mass stars become red giants, while high-mass stars become supergiants.
End Stages: Low- to medium-mass stars shed their outer layers to become white dwarfs, while high-mass stars explode as supernovae, leaving behind neutron stars or black holes.

📝 Note: The evolutionary tracks of stars can vary significantly based on their initial mass and composition. High-mass stars evolve much faster than low-mass stars.

Applications of the HR Diagram

The HR diagram is a versatile tool used in various astronomical studies. Some of its key applications include:

Stellar Classification: The HR diagram helps astronomers classify stars based on their properties, making it easier to study and understand different types of stars.
Stellar Evolution: By plotting the positions of stars at different stages of their lives, astronomers can study stellar evolution and predict the future of stars.
Distance Measurement: The HR diagram can be used to determine the distances to stars and star clusters by comparing their apparent magnitudes to their absolute magnitudes.
Galactic Structure: Studying the HR diagrams of different regions in the galaxy helps astronomers understand the structure and evolution of the Milky Way.

One of the most significant applications of the HR diagram is in the study of star clusters. By plotting the HR diagram of a star cluster, astronomers can determine its age and distance. The main sequence turnoff point, where stars begin to leave the main sequence, is a key indicator of the cluster's age.

Challenges and Limitations

While the HR diagram is a powerful tool, it also has its challenges and limitations. Some of these include:

Data Accuracy: The accuracy of the HR diagram depends on the precision of the measurements of luminosity and spectral type. Errors in these measurements can lead to misinterpretations.
Stellar Variability: Some stars, such as variable stars, change their brightness over time, making it difficult to plot them accurately on the HR diagram.
Interstellar Extinction: Dust and gas in the interstellar medium can absorb and scatter light, affecting the apparent brightness of stars and complicating the interpretation of the HR diagram.
Binary Stars: Binary stars, which are two stars orbiting each other, can be challenging to plot on the HR diagram because their combined light can affect the measurements.

📝 Note: Despite these challenges, the HR diagram remains a fundamental tool in astronomy, providing valuable insights into the properties and evolution of stars.

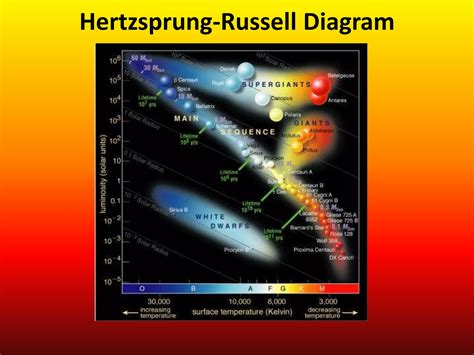

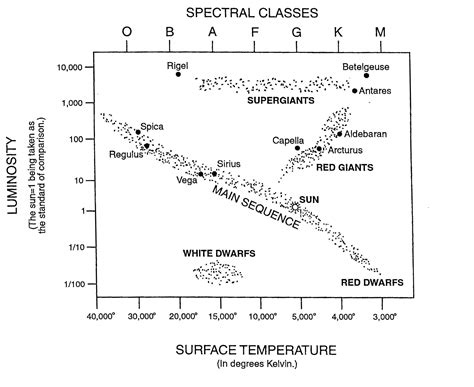

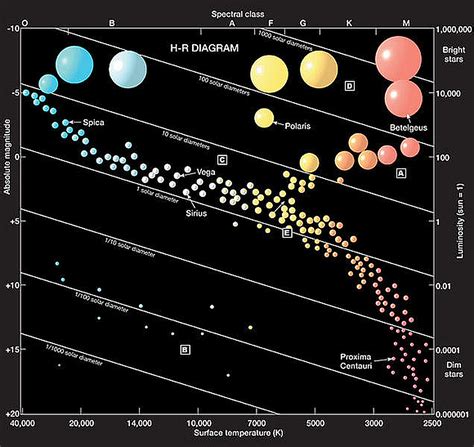

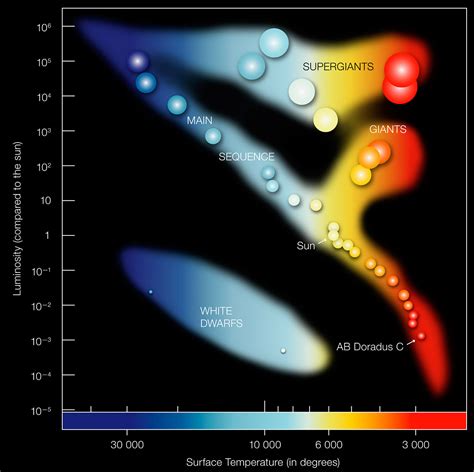

To further illustrate the HR diagram, consider the following image:

This diagram shows the main sequence, red giants, white dwarfs, and supergiants, along with the spectral types and luminosity classes. It provides a visual representation of how stars are categorized based on their properties.

In summary, the HR Diagram Labeled is an essential tool for astronomers to classify stars and understand their evolution. By plotting stars based on their luminosity and spectral type, astronomers can gain insights into the properties and life cycles of stars. The HR diagram has numerous applications in stellar classification, stellar evolution, distance measurement, and galactic structure studies. Despite its challenges and limitations, the HR diagram remains a cornerstone of modern astronomy, providing a comprehensive framework for understanding the universe.
