How Made Carbon Fiber

Carbon fiber is a revolutionary material that has transformed various industries, from aerospace to automotive and sports equipment. Its exceptional strength-to-weight ratio, stiffness, and resistance to corrosion make it a preferred choice for high-performance applications. Understanding how made carbon fiber involves delving into the intricate process of manufacturing this advanced composite material. This blog post will guide you through the steps involved in producing carbon fiber, highlighting the key processes and technologies that make it possible.

Table of Contents

What is Carbon Fiber?

Carbon fiber is a material consisting of thin, strong crystalline filaments of carbon. These filaments are typically less than 0.0002 inches in diameter and are composed mostly of carbon atoms. The carbon atoms are bonded together in microscopic crystals that are more or less aligned parallel to the long axis of the fiber. The crystal alignment makes the fiber incredibly strong for its size. Several thousand carbon fibers are bundled together to form a yarn, which may be used by itself or woven into a fabric.

Raw Materials and Precursor Selection

The process of how made carbon fiber begins with the selection of raw materials. The primary raw material used in the production of carbon fiber is a precursor, which is typically a polymer. The most common precursors are:

Polyacrylonitrile (PAN)
Rayon
Pitch

PAN is the most widely used precursor due to its high carbon yield and excellent mechanical properties. The choice of precursor significantly influences the final properties of the carbon fiber.

Spinning the Precursor

The precursor material is first spun into fibers using a process similar to textile manufacturing. This involves melting or dissolving the polymer and extruding it through tiny holes in a spinneret to form continuous filaments. These filaments are then cooled and solidified into fibers. The spinning process is crucial as it determines the initial structure and properties of the fibers.

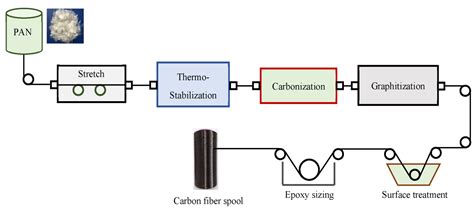

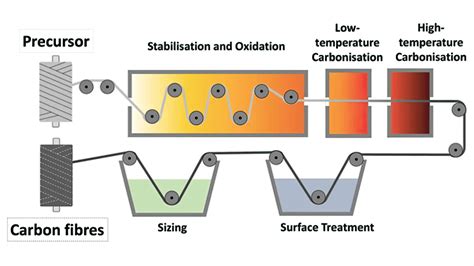

Stabilization

After spinning, the fibers undergo a stabilization process. This step is essential to prevent the fibers from melting or decomposing during the subsequent high-temperature treatment. Stabilization involves heating the fibers in air at temperatures ranging from 200°C to 300°C. During this process, the fibers are oxidized, which introduces cross-links between the polymer chains, making the fibers more thermally stable.

Carbonization

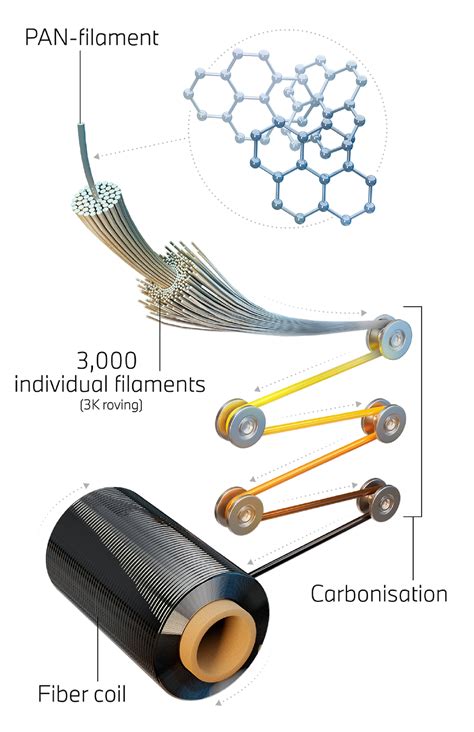

The stabilized fibers are then subjected to carbonization, where they are heated to temperatures between 1,000°C and 1,500°C in an inert atmosphere, such as nitrogen or argon. This high-temperature treatment drives off non-carbon atoms, leaving behind a structure composed almost entirely of carbon. The carbonization process is critical as it determines the final mechanical properties of the carbon fiber.

Graphitization

For some applications, the carbon fibers may undergo an additional step called graphitization. This involves heating the fibers to even higher temperatures, typically above 2,000°C. Graphitization further aligns the carbon atoms into a more ordered crystalline structure, enhancing the fiber’s stiffness and thermal conductivity. However, this step is not always necessary and is often skipped for applications where high strength is more important than stiffness.

Surface Treatment

After carbonization or graphitization, the carbon fibers may undergo surface treatment to improve their adhesion to resins and other matrix materials. This is typically done through oxidation or coating the fibers with a sizing agent. Surface treatment enhances the interfacial bonding between the fibers and the matrix, which is crucial for the performance of the composite material.

Winding and Spinning

The treated fibers are then wound onto spools and prepared for further processing. This step involves ensuring the fibers are evenly distributed and free of defects. The fibers may be woven into fabrics, chopped into short lengths, or used directly in various composite manufacturing processes.

Quality Control

Throughout the production process, rigorous quality control measures are implemented to ensure the consistency and reliability of the carbon fibers. This includes testing the tensile strength, modulus, and other mechanical properties of the fibers. Quality control is essential to maintain the high standards required for applications in aerospace, automotive, and other high-performance industries.

Applications of Carbon Fiber

Carbon fiber’s unique properties make it suitable for a wide range of applications. Some of the most notable uses include:

Aerospace: Carbon fiber is extensively used in the construction of aircraft components, such as wings, fuselages, and interior structures, due to its lightweight and high strength.

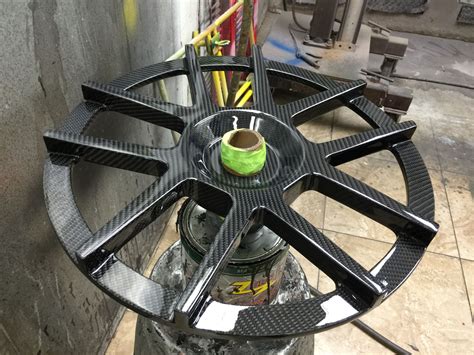

Automotive: In the automotive industry, carbon fiber is used to produce lightweight and durable parts, such as body panels, chassis components, and brake discs.
Sports Equipment: Carbon fiber is a popular material for manufacturing sports equipment, including tennis rackets, golf clubs, bicycles, and helmets, due to its strength and flexibility.
Wind Energy: Carbon fiber is used in the production of wind turbine blades, where its lightweight and high strength are crucial for efficient energy generation.
Medical Devices: Carbon fiber is used in medical implants and prosthetics due to its biocompatibility and strength.

Environmental Impact

The production of carbon fiber, particularly the carbonization and graphitization processes, is energy-intensive and can have environmental impacts. However, efforts are being made to develop more sustainable manufacturing methods and recycle carbon fiber waste. The use of carbon fiber in lightweight structures can also contribute to energy savings in transportation and other industries, offsetting some of its environmental costs.

🌱 Note: The environmental impact of carbon fiber production is a growing concern, and ongoing research aims to develop more eco-friendly manufacturing processes and recycling methods.

Future Trends

The future of carbon fiber looks promising, with advancements in manufacturing technologies and new applications continually emerging. Some of the key trends include:

Advanced Manufacturing Techniques: Innovations in additive manufacturing and automated fiber placement are making it easier and more cost-effective to produce complex carbon fiber structures.
Nanocomposites: The integration of nanoscale materials, such as carbon nanotubes and graphene, with carbon fiber is enhancing the mechanical and electrical properties of composite materials.
Sustainable Production: There is a growing focus on developing more sustainable production methods, including the use of renewable energy sources and recycling carbon fiber waste.
New Applications: Carbon fiber is being explored for use in emerging fields, such as wearable technology, smart materials, and advanced robotics.

Carbon fiber's versatility and exceptional properties make it a material of choice for a wide range of applications. As research and development continue, the potential for carbon fiber to revolutionize various industries is immense.

Understanding how made carbon fiber provides insights into the complex processes and technologies involved in producing this advanced material. From the selection of precursors to the final surface treatment, each step plays a crucial role in determining the properties and performance of carbon fiber. As the demand for lightweight, high-strength materials continues to grow, carbon fiber will undoubtedly remain at the forefront of innovation and technological advancement.
