How Does Welding Work

By Ashley

September 10, 2025

3 min read

Save

How Does Welding Work

Welding is a fundamental process in manufacturing and construction, joining metals or thermoplastics together by causing coalescence. This process is crucial in various industries, from automotive and aerospace to shipbuilding and infrastructure. Understanding how does welding work involves delving into the science behind the process, the different types of welding, and the equipment used. This blog post will provide a comprehensive overview of welding, its applications, and the safety measures involved.

Table of Contents

Understanding the Basics of Welding

Welding is the process of joining materials, usually metals or thermoplastics, by causing coalescence. This is often done by melting the workpieces and adding a filler material to form a joint. The process can be performed using various methods, each with its unique characteristics and applications. The primary goal of welding is to create a strong, durable bond that can withstand the stresses and strains of the intended application.

How Does Welding Work?

Welding works by applying heat to the materials being joined, which melts them and allows them to fuse together. The heat can be generated through various means, including electrical arcs, gas flames, lasers, and electron beams. Once the materials are melted, a filler material is often added to strengthen the joint. The filler material, known as a welding rod or electrode, is melted and deposited into the joint, where it solidifies to form a strong bond.

There are several key factors that determine the success of a weld:

Heat Input: The amount of heat applied to the materials being welded. Too much heat can cause distortion or burn-through, while too little heat can result in a weak joint.
Filler Material: The type and composition of the filler material used. The filler material must be compatible with the base materials to ensure a strong bond.
Shielding Gas: The gas used to protect the weld from atmospheric contaminants. Shielding gases, such as argon or helium, prevent oxidation and ensure a clean, strong weld.
Welding Technique: The method used to apply the heat and filler material. Different welding techniques are suited to different materials and applications.

Types of Welding

There are several types of welding, each with its unique characteristics and applications. The most common types include:

Shielded Metal Arc Welding (SMAW)

Shielded Metal Arc Welding, also known as stick welding, is one of the most basic and widely used welding methods. It involves using a consumable electrode coated in flux to lay the weld. The flux coating creates a gas shield around the weld, protecting it from atmospheric contaminants. SMAW is versatile and can be used in various positions and environments, making it ideal for outdoor and fieldwork.

Gas Metal Arc Welding (GMAW)

Gas Metal Arc Welding, commonly known as MIG welding, uses a continuous solid wire electrode and an inert or semi-inert gas mixture to shield the weld from contaminants. MIG welding is known for its speed and efficiency, making it suitable for high-volume production and automated welding processes. It is commonly used in the automotive and manufacturing industries.

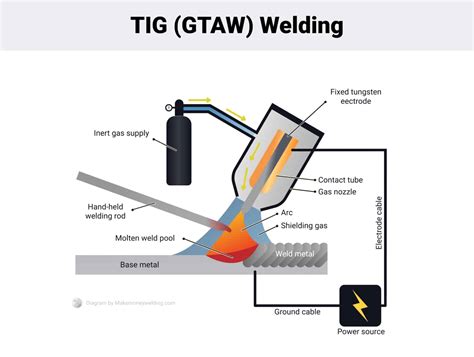

Gas Tungsten Arc Welding (GTAW)

Gas Tungsten Arc Welding, also known as TIG welding, uses a non-consumable tungsten electrode to produce the weld. The weld area is protected from atmospheric contamination by an inert shielding gas, usually argon. TIG welding is known for its precision and high-quality welds, making it ideal for welding thin materials and critical applications in aerospace and automotive industries.

Flux-Cored Arc Welding (FCAW)

Flux-Cored Arc Welding is similar to MIG welding but uses a tubular wire filled with flux instead of a solid wire. The flux creates a shielding gas and a slag that protects the weld from contaminants. FCAW is versatile and can be used in various positions and environments, making it suitable for outdoor and fieldwork. It is commonly used in construction and shipbuilding.

Laser Beam Welding (LBW)

Laser Beam Welding uses a high-energy laser beam to melt and join materials. LBW is known for its precision and high-quality welds, making it ideal for welding thin materials and critical applications in the aerospace and automotive industries. It is also used in the electronics industry for welding small, delicate components.

Electron Beam Welding (EBW)

Electron Beam Welding uses a focused beam of high-velocity electrons to melt and join materials. EBW is known for its deep penetration and high-quality welds, making it ideal for welding thick materials and critical applications in the aerospace and nuclear industries. It is also used in the manufacturing of medical devices and precision instruments.

Welding Equipment

Welding requires specialized equipment to generate the heat and apply the filler material. The type of equipment used depends on the welding method and the materials being joined. Common welding equipment includes:

Welding Machines

Welding machines generate the electrical current or gas flame used to melt the materials being welded. They come in various sizes and types, from small portable units to large industrial machines. Welding machines can be powered by electricity, gas, or a combination of both.

Welding Torches

Welding torches are used to direct the heat and filler material to the weld area. They come in various types, including MIG, TIG, and oxy-fuel torches. Welding torches can be handheld or automated, depending on the application.

Welding Helmets

Welding helmets protect the welder's face and eyes from the intense light and heat generated during welding. They come in various types, including passive and auto-darkening helmets. Welding helmets are essential for ensuring the safety of the welder and preventing eye injuries.

Welding Gloves

Welding gloves protect the welder's hands from the heat and sparks generated during welding. They are made from heat-resistant materials, such as leather or Kevlar, and come in various sizes and styles. Welding gloves are essential for ensuring the safety of the welder and preventing burns and injuries.

Welding Clothing

Welding clothing protects the welder's body from the heat and sparks generated during welding. It includes items such as welding jackets, aprons, and sleeves, made from heat-resistant materials, such as leather or flame-resistant fabric. Welding clothing is essential for ensuring the safety of the welder and preventing burns and injuries.

Welding Safety

Welding involves working with high temperatures, electrical currents, and potentially hazardous materials. Therefore, safety is a critical consideration in welding. Here are some essential safety measures to follow when welding:

Personal Protective Equipment (PPE): Always wear appropriate PPE, including welding helmets, gloves, and clothing, to protect yourself from heat, sparks, and UV radiation.
Ventilation: Ensure proper ventilation to remove fumes and gases generated during welding. This can be achieved through natural ventilation, mechanical ventilation, or local exhaust ventilation.
Fire Safety: Keep a fire extinguisher nearby and ensure that the welding area is free of flammable materials. Always follow proper fire safety procedures.
Electrical Safety: Ensure that all electrical equipment is in good condition and properly grounded. Avoid working in wet or damp conditions to prevent electrical shock.
Material Handling: Handle welding materials, such as electrodes and gases, with care to prevent injuries. Store materials properly to prevent contamination and ensure their safety.

🛑 Note: Always follow the manufacturer's instructions and safety guidelines when using welding equipment and materials. Regularly inspect and maintain your equipment to ensure its safety and reliability.

Applications of Welding

Welding is used in a wide range of industries and applications, from manufacturing and construction to automotive and aerospace. Some of the most common applications of welding include:

Automotive Industry

The automotive industry relies heavily on welding for the production of vehicles. Welding is used to join metal components, such as frames, body panels, and exhaust systems. Common welding methods in the automotive industry include MIG, TIG, and spot welding.

Aerospace Industry

The aerospace industry requires high-precision welding to ensure the safety and reliability of aircraft and spacecraft. Welding is used to join critical components, such as engine parts, airframes, and fuel tanks. Common welding methods in the aerospace industry include TIG, laser beam welding, and electron beam welding.

Construction Industry

The construction industry uses welding to join structural components, such as beams, columns, and trusses. Welding is also used to repair and maintain existing structures. Common welding methods in the construction industry include SMAW, FCAW, and MIG welding.

Shipbuilding Industry

The shipbuilding industry relies on welding to join the metal plates and sections that form the hull and superstructure of ships. Welding is also used to repair and maintain ships. Common welding methods in the shipbuilding industry include SMAW, FCAW, and MIG welding.

Manufacturing Industry

The manufacturing industry uses welding to produce a wide range of products, from appliances and machinery to furniture and equipment. Welding is used to join metal components and ensure the strength and durability of the final product. Common welding methods in the manufacturing industry include MIG, TIG, and spot welding.

Welding Techniques

Mastering welding techniques is crucial for achieving high-quality welds. Here are some essential welding techniques to consider:

Preparation

Proper preparation is key to a successful weld. This includes cleaning the materials to be welded, removing any contaminants, and ensuring that the surfaces are smooth and free of defects. Preparation also involves selecting the appropriate welding method, filler material, and shielding gas.

Positioning

Positioning refers to the orientation of the weld relative to the materials being joined. Common welding positions include flat, horizontal, vertical, and overhead. Each position requires a different technique to ensure a strong, durable weld.

Travel Speed

Travel speed refers to the speed at which the welding torch or electrode is moved along the joint. The travel speed affects the heat input and the size of the weld bead. A consistent travel speed is essential for achieving a uniform weld.

Angle of Attack

The angle of attack refers to the angle at which the welding torch or electrode is held relative to the joint. The angle of attack affects the penetration and width of the weld bead. A consistent angle of attack is essential for achieving a strong, durable weld.

Welding Patterns

Welding patterns refer to the specific techniques used to lay down the weld bead. Common welding patterns include stringer beads, weave beads, and circular beads. Each pattern has its unique characteristics and is suited to different applications.

Welding Defects and How to Avoid Them

Welding defects can compromise the strength and durability of a weld. Understanding common welding defects and how to avoid them is crucial for achieving high-quality welds. Here are some common welding defects and their causes:

Porosity

Porosity refers to the presence of small holes or voids in the weld. It is caused by the entrapment of gases, such as hydrogen or nitrogen, during the welding process. To avoid porosity, ensure proper shielding gas coverage and clean the materials to be welded.

Cracking

Cracking refers to the formation of cracks in the weld or the base material. It can be caused by various factors, including high residual stresses, hydrogen embrittlement, and improper welding techniques. To avoid cracking, preheat the materials to be welded, use appropriate welding techniques, and control the heat input.

Incomplete Fusion

Incomplete fusion refers to the failure of the weld to fully penetrate and fuse with the base material. It is caused by insufficient heat input or improper welding techniques. To avoid incomplete fusion, ensure proper heat input and use appropriate welding techniques.

Incomplete Penetration

Incomplete penetration refers to the failure of the weld to fully penetrate the joint. It is caused by insufficient heat input or improper welding techniques. To avoid incomplete penetration, ensure proper heat input and use appropriate welding techniques.

Undercutting

Undercutting refers to the formation of a groove or depression along the edge of the weld. It is caused by excessive heat input or improper welding techniques. To avoid undercutting, control the heat input and use appropriate welding techniques.

Distortion

Distortion refers to the warping or bending of the materials being welded. It is caused by uneven heat distribution or improper welding techniques. To avoid distortion, control the heat input and use appropriate welding techniques.

Welding Certifications

Welding certifications are essential for ensuring the quality and safety of welds. They demonstrate that a welder has the necessary skills and knowledge to perform welding tasks to a high standard. Common welding certifications include:

American Welding Society (AWS) Certifications

The American Welding Society offers a range of certifications for welders, including the Certified Welder (CW) and Certified Welding Inspector (CWI) certifications. These certifications are recognized internationally and demonstrate a welder's competence and expertise.

American Society of Mechanical Engineers (ASME) Certifications

The American Society of Mechanical Engineers offers certifications for welders working in the pressure vessel and piping industries. These certifications, such as the ASME Section IX certification, ensure that welders have the necessary skills and knowledge to perform welding tasks to a high standard.

National Center for Construction Education and Research (NCCER) Certifications

The National Center for Construction Education and Research offers certifications for welders working in the construction industry. These certifications, such as the NCCER Welding Level 1 certification, ensure that welders have the necessary skills and knowledge to perform welding tasks to a high standard.

Welding Materials

Welding materials play a crucial role in the welding process. The choice of materials depends on the type of welding, the materials being joined, and the application. Common welding materials include:

Filler Materials

Filler materials are used to strengthen the weld and ensure a strong bond. They come in various types, including welding rods, electrodes, and wires. The choice of filler material depends on the materials being joined and the welding method used.

Shielding Gases

Shielding gases protect the weld from atmospheric contaminants, such as oxygen and nitrogen. They come in various types, including argon, helium, and carbon dioxide. The choice of shielding gas depends on the welding method and the materials being joined.

Base Materials

Base materials are the materials being joined during the welding process. They come in various types, including steel, aluminum, and stainless steel. The choice of base material depends on the application and the welding method used.

Welding Processes

Welding processes involve a series of steps to ensure a strong, durable weld. Here is a general overview of the welding process:

Preparation

Preparation involves cleaning the materials to be welded, removing any contaminants, and ensuring that the surfaces are smooth and free of defects. Preparation also involves selecting the appropriate welding method, filler material, and shielding gas.

Setup

Setup involves positioning the materials to be welded and setting up the welding equipment. This includes adjusting the welding parameters, such as voltage, amperage, and travel speed, to ensure a strong, durable weld.

Welding

Welding involves applying heat to the materials being joined, melting them, and adding a filler material to form a joint. The welding process can be performed using various methods, each with its unique characteristics and applications.

Inspection

Inspection involves checking the weld for defects and ensuring that it meets the required standards. This can be done using various methods, including visual inspection, non-destructive testing, and destructive testing.

Finishing

Finishing involves cleaning the weld and preparing it for the final application. This can include grinding, polishing, or painting the weld to ensure a smooth, durable finish.

Welding Standards

Welding standards ensure the quality and safety of welds. They provide guidelines for welding procedures, materials, and equipment. Common welding standards include:

American Welding Society (AWS) Standards

The American Welding Society publishes a range of standards for welding, including the AWS D1.1 Structural Welding Code and the AWS D1.2 Structural Welding Code for Aluminum. These standards provide guidelines for welding procedures, materials, and equipment.

American Society of Mechanical Engineers (ASME) Standards

The American Society of Mechanical Engineers publishes standards for welding in the pressure vessel and piping industries. These standards, such as ASME Section IX, provide guidelines for welding procedures, materials, and equipment.

International Organization for Standardization (ISO) Standards

The International Organization for Standardization publishes standards for welding, including ISO 15609 Welding Procedure Specification and ISO 15614 Welding Procedure Test. These standards provide guidelines for welding procedures, materials, and equipment.

Welding in Different Industries

Welding is used in a wide range of industries, each with its unique requirements and challenges. Here is an overview of welding in different industries:
