How Do Hydraulics Work

Hydraulic systems are ubiquitous in modern machinery, from construction equipment to aircraft and even in everyday devices like car brakes. Understanding how do hydraulics work is crucial for anyone interested in engineering, mechanics, or simply curious about the technology that powers so much of our world. This post will delve into the fundamentals of hydraulic systems, their components, applications, and the principles that govern their operation.

Understanding Hydraulic Systems

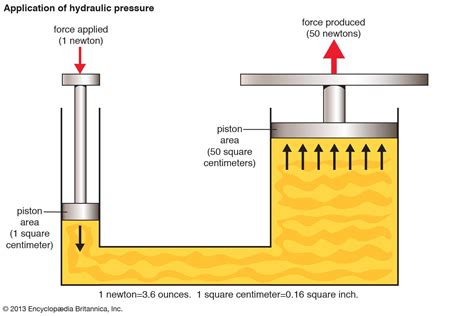

At its core, a hydraulic system uses fluid to transmit power. This fluid, typically oil, is incompressible, meaning it does not change volume under pressure. This property is key to the system's ability to transfer force efficiently. The basic principle behind how do hydraulics work is Pascal's Law, which states that pressure applied to a confined fluid is transmitted undiminished to every portion of the fluid and to the walls of the container.

Hydraulic systems consist of several key components:

Reservoir: Stores the hydraulic fluid.
Pump: Generates the pressure by moving the fluid.
Valves: Control the direction and flow rate of the fluid.
Actuators: Convert the fluid pressure into mechanical motion.
Pipes and Hoses: Transport the fluid between components.

Components of a Hydraulic System

Each component in a hydraulic system plays a crucial role in its operation. Let's explore these components in more detail.

Reservoir

The reservoir is where the hydraulic fluid is stored when it is not in use. It also serves as a cooling and filtering point for the fluid. The reservoir must be large enough to hold the entire volume of fluid in the system and allow for expansion and contraction due to temperature changes.

Pump

The pump is the heart of the hydraulic system. It converts mechanical energy into hydraulic energy by moving the fluid through the system. There are several types of pumps, including gear pumps, vane pumps, and piston pumps. Each type has its advantages and is suited to different applications.

Valves

Valves control the flow of fluid in the system. They can start, stop, or redirect the flow, and regulate the pressure and flow rate. Common types of valves include:

Directional Control Valves: Control the direction of fluid flow.
Pressure Control Valves: Regulate the pressure in the system.
Flow Control Valves: Control the flow rate of the fluid.

Actuators

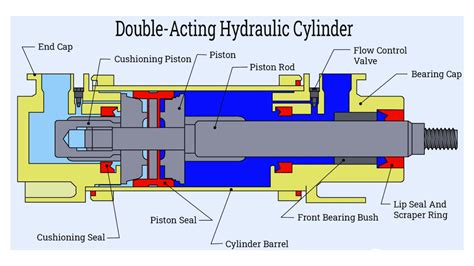

Actuators convert the hydraulic energy back into mechanical motion. There are two main types of actuators: hydraulic cylinders and hydraulic motors. Hydraulic cylinders produce linear motion, while hydraulic motors produce rotational motion.

Pipes and Hoses

Pipes and hoses transport the hydraulic fluid between the components. They must be strong enough to withstand the high pressures and resistant to the fluid's corrosive properties. The choice of material and size depends on the specific application and the fluid being used.

How Do Hydraulics Work in Practice?

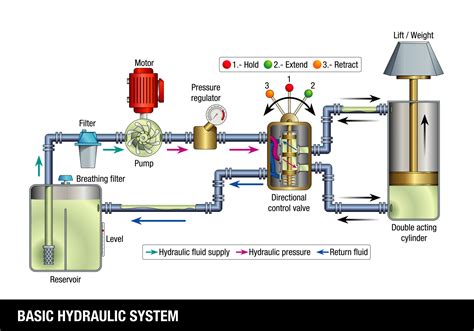

To understand how do hydraulics work in practice, let's consider a simple example: a hydraulic lift. A hydraulic lift uses a pump to move fluid into a cylinder, which then extends to lift a load. Here's a step-by-step breakdown of the process:

Fluid Storage: The hydraulic fluid is stored in the reservoir.
Pump Activation: The pump is activated, drawing fluid from the reservoir and pressurizing it.
Fluid Flow: The pressurized fluid flows through the pipes and hoses to the cylinder.
Cylinder Extension: The fluid enters the cylinder, pushing the piston out and lifting the load.
Valve Control: A valve controls the flow of fluid, allowing it to return to the reservoir when the lift is lowered.

📝 Note: The efficiency of a hydraulic system depends on the proper functioning of all its components. Regular maintenance and inspection are crucial to ensure optimal performance.

Applications of Hydraulic Systems

Hydraulic systems are used in a wide range of applications, from heavy machinery to precision instruments. Here are some of the most common applications:

Construction Equipment

Hydraulic systems are essential in construction equipment like excavators, bulldozers, and cranes. They provide the power needed to operate the heavy machinery and perform tasks like digging, lifting, and moving materials.

Aircraft

In aircraft, hydraulic systems are used to operate the landing gear, flaps, and brakes. They provide the necessary force to move these components quickly and reliably, ensuring the safety and efficiency of the aircraft.

Automobiles

In automobiles, hydraulic systems are used in brakes and power steering. They provide the force needed to stop the vehicle and make steering easier, especially at low speeds.

Industrial Machinery

Hydraulic systems are used in various industrial machines, such as presses, lifts, and conveyors. They provide the power needed to perform tasks like pressing, lifting, and moving materials.

Medical Equipment

In medical equipment, hydraulic systems are used in devices like hospital beds, surgical tables, and patient lifts. They provide the precise control needed to adjust the position of patients safely and comfortably.

Advantages and Disadvantages of Hydraulic Systems

Hydraulic systems offer several advantages, but they also have some disadvantages. Understanding these can help in deciding when and where to use hydraulic systems.

Advantages

High Power Density: Hydraulic systems can generate a lot of force in a small space.
Precise Control: They offer precise control over the movement and force applied.
Reliability: Hydraulic systems are reliable and can operate in harsh environments.
Versatility: They can be used in a wide range of applications.

Disadvantages

Complexity: Hydraulic systems can be complex and require regular maintenance.
Leakage: They can leak, which can be messy and potentially hazardous.
Noise: Hydraulic systems can be noisy, especially at high pressures.
Cost: They can be expensive to install and maintain.

Maintenance of Hydraulic Systems

Maintaining a hydraulic system is crucial to ensure its longevity and performance. Regular maintenance includes checking the fluid level and quality, inspecting the components for wear and tear, and replacing any damaged parts. It's also important to keep the system clean and free from contaminants, which can cause damage and reduce efficiency.

Here is a table outlining the key maintenance tasks and their recommended frequency:

Task	Frequency
Check Fluid Level	Monthly
Inspect Components	Quarterly
Replace Filters	Every 6 Months
Change Fluid	Annually
Inspect Hoses and Pipes	Annually

📝 Note: Always follow the manufacturer's guidelines for maintenance and use only recommended fluids and parts.

Safety Considerations

Working with hydraulic systems can be dangerous if proper safety measures are not followed. High pressures and hot fluids can cause serious injuries. Always wear appropriate protective gear, follow safety protocols, and ensure the system is properly maintained and inspected before use.

Some key safety considerations include:

Wear Protective Gear: Use gloves, safety glasses, and protective clothing.
Follow Protocols: Adhere to safety protocols and guidelines.
Inspect System: Regularly inspect the system for leaks and damage.
Use Proper Tools: Use the right tools for the job.

📝 Note: Never attempt to repair or modify a hydraulic system without proper training and equipment.

Hydraulic systems are a fundamental part of modern technology, enabling the operation of a wide range of machinery and devices. Understanding how do hydraulics work is essential for anyone involved in engineering, mechanics, or related fields. From construction equipment to aircraft and medical devices, hydraulic systems provide the power and precision needed to perform a variety of tasks. By maintaining and operating these systems properly, we can ensure their reliability and efficiency, contributing to the smooth functioning of the machines and devices that power our world.
