House Wiring Colors

Understanding the intricacies of house wiring is crucial for anyone involved in home improvement or electrical work. One of the most fundamental aspects of electrical wiring is the use of standardized House Wiring Colors. These colors serve as a universal language that helps electricians and DIY enthusiasts identify the function of each wire, ensuring safety and efficiency in electrical installations.

Table of Contents

Understanding House Wiring Colors

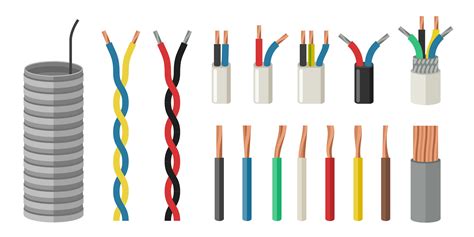

In the United States, the National Electrical Code (NEC) dictates the standard colors for electrical wires. These colors are designed to make it easy to identify the purpose of each wire at a glance. The most common House Wiring Colors include:

Black: Typically used for hot wires, which carry the electrical current from the power source to the outlet or switch.
Red: Often used as a secondary hot wire in situations where a switch controls a receptacle or an outlet.
Blue and Yellow: These colors are used for switch legs, which are wires that connect switches to outlets or other devices.
White: Generally used for neutral wires, which complete the circuit by providing a return path for the electrical current.
Green and Bare Copper: These are ground wires, which provide a safe path for electrical current to flow in case of a short circuit, protecting against electrical shocks.

Importance of Correct Wire Identification

Correctly identifying House Wiring Colors is essential for several reasons:

Safety: Incorrect wiring can lead to electrical shocks, fires, and other hazards. Proper identification ensures that wires are connected correctly, minimizing risks.
Efficiency: Properly identified wires help in maintaining the efficiency of electrical systems, ensuring that devices and appliances function correctly.
Troubleshooting: When issues arise, knowing the function of each wire makes it easier to diagnose and fix problems.

Common House Wiring Colors and Their Functions

Let's delve deeper into the specific functions of each House Wiring Colors:

Black Wires

Black wires are typically used for hot wires in electrical circuits. They carry the electrical current from the power source to the outlet or switch. In a standard 120-volt circuit, the black wire is the live wire that provides power to the device.

Red Wires

Red wires are often used as secondary hot wires in situations where a switch controls a receptacle or an outlet. They are also used in 240-volt circuits, where they carry the second hot wire. Red wires are commonly found in switch legs and in situations where additional power is needed.

Blue and Yellow Wires

Blue and yellow wires are used for switch legs, which are wires that connect switches to outlets or other devices. These wires are often used in three-way and four-way switch configurations, where multiple switches control a single light or outlet.

White Wires

White wires are generally used for neutral wires, which complete the circuit by providing a return path for the electrical current. Neutral wires are essential for the proper functioning of electrical devices and appliances. In some cases, white wires can be used as hot wires, but this is less common and should be clearly marked if done.

Green and Bare Copper Wires

Green and bare copper wires are used for grounding. Ground wires provide a safe path for electrical current to flow in case of a short circuit, protecting against electrical shocks. Grounding is a critical safety feature in electrical systems, and proper grounding is essential for the safety of the electrical installation.

Special Considerations for House Wiring Colors

While the standard House Wiring Colors are widely recognized, there are some special considerations to keep in mind:

Marking Wires: In some cases, wires may be marked with tape or other indicators to show their function. For example, a white wire used as a hot wire may be marked with black tape to indicate its purpose.
International Variations: While the colors described here are standard in the United States, other countries may use different color codes. It's important to be aware of these variations if working on electrical systems in different regions.

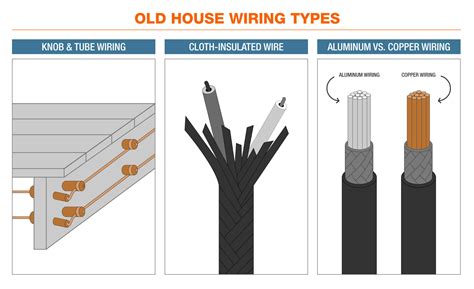

Older Wiring: In older homes, the wiring colors may not follow the current standards. It's essential to be cautious and verify the function of each wire before working on older electrical systems.

Safety Tips for Working with House Wiring Colors

Working with electrical wiring can be dangerous if not done correctly. Here are some safety tips to keep in mind:

Turn Off Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shocks.
Follow Codes and Standards: Adhere to local electrical codes and standards to ensure safety and compliance.
Test Wires: Use a non-contact voltage tester to verify that wires are not live before handling them.

🛑 Note: Always consult with a licensed electrician if you are unsure about any aspect of electrical wiring. Safety should always be the top priority.

Troubleshooting Common Issues with House Wiring Colors

Even with proper identification, issues can arise with electrical wiring. Here are some common problems and how to troubleshoot them:

No Power: If an outlet or switch is not working, check the circuit breaker to ensure it hasn't tripped. Verify that the wires are properly connected and that there are no loose connections.
Short Circuits: If a circuit breaker trips frequently, it may indicate a short circuit. Check for damaged wires, loose connections, or improper wiring.
Grounding Issues: If you experience electrical shocks or sparks, it may indicate a grounding issue. Ensure that all ground wires are properly connected and that the grounding system is intact.

When troubleshooting electrical issues, it's essential to approach the problem systematically. Start by checking the most obvious causes and work your way through the system. Always prioritize safety and consult with a professional if needed.

In some cases, it may be helpful to use a multimeter to test the continuity and voltage of wires. This can help identify broken wires, loose connections, and other issues that may not be immediately apparent.

If you encounter a problem that you cannot resolve, it's best to consult with a licensed electrician. Electrical issues can be complex and dangerous, and professional help may be necessary to ensure safety and compliance with electrical codes.

When working with electrical wiring, it's important to document your findings and any changes you make. This can help in future troubleshooting and ensure that the system remains safe and functional.

In addition to documenting your work, it's a good idea to keep a record of any changes made to the electrical system. This can include updates to wiring, additions of new circuits, and any other modifications. Keeping accurate records can help in future maintenance and troubleshooting.

Finally, always prioritize safety when working with electrical wiring. Electrical systems can be dangerous, and it's essential to take the necessary precautions to protect yourself and others. By following safety guidelines and consulting with professionals when needed, you can ensure that your electrical system remains safe and functional.

In summary, understanding House Wiring Colors is essential for anyone involved in electrical work. By knowing the function of each wire, you can ensure safety, efficiency, and proper troubleshooting. Always prioritize safety and consult with professionals when needed to maintain a safe and functional electrical system.
