Electrical safety is a paramount concern for any homeowner, and one of the most effective ways to ensure it is through proper grounding. A House Earthing Rod is a crucial component in this process, providing a safe path for electrical currents to flow into the earth, thereby protecting your home and its occupants from electrical hazards. This blog post will delve into the importance of a House Earthing Rod, how to install one, and the benefits it offers.
Understanding the House Earthing Rod

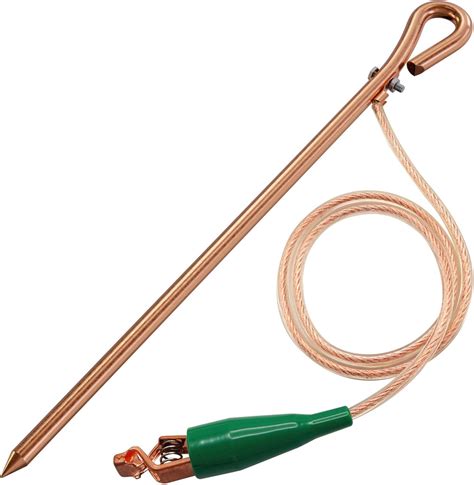

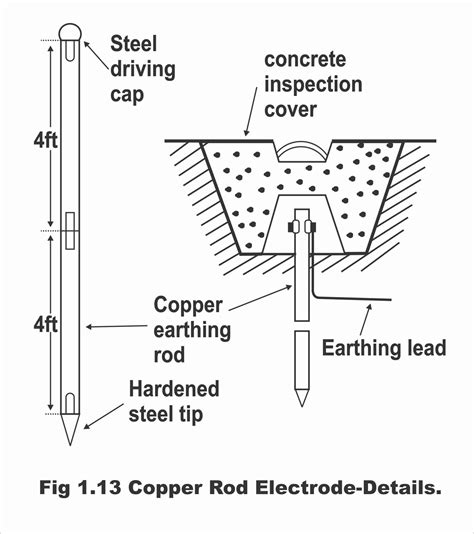

A House Earthing Rod, also known as a grounding rod, is a conductive metal rod driven into the earth to provide a low-resistance path to the ground for electrical currents. This rod is typically made of copper or copper-clad steel, materials known for their excellent conductivity. The primary function of a House Earthing Rod is to dissipate electrical charges safely into the earth, preventing the buildup of static electricity and protecting against electrical surges.
Why is a House Earthing Rod Important?
Installing a House Earthing Rod is essential for several reasons:
- Safety: It protects against electrical shocks by providing a safe path for electrical currents to flow into the ground.
- Equipment Protection: It safeguards electrical equipment from damage caused by power surges and lightning strikes.
- Compliance: Many building codes and regulations require proper grounding to ensure electrical safety.
- Performance: Proper grounding can improve the performance of electrical systems by reducing interference and noise.
Types of House Earthing Rods
There are several types of House Earthing Rods available, each suited to different soil conditions and requirements:
- Copper-Bonded Earthing Rods: These are highly conductive and resistant to corrosion, making them ideal for various soil types.
- Galvanized Steel Earthing Rods: These are cost-effective and suitable for dry soil conditions but may corrode over time.
- Stainless Steel Earthing Rods: These are highly resistant to corrosion and suitable for harsh environments but are more expensive.
Installing a House Earthing Rod
Installing a House Earthing Rod involves several steps. Here is a detailed guide to help you through the process:
Materials Needed
- House Earthing Rod (copper, copper-clad steel, or stainless steel)
- Clamping connectors
- Grounding wire
- Soil rod driver or hammer
- Wire stripper
- Safety gloves and goggles
Steps to Install a House Earthing Rod
1. Choose the Location: Select a location for the House Earthing Rod that is at least 6 feet away from the foundation of your house. Ensure the area is free of obstacles and has good soil conductivity.
2. Prepare the Site: Clear the area of any debris and mark the spot where the rod will be driven into the ground. Use a soil rod driver or a heavy-duty hammer to drive the rod into the ground. The rod should be driven at least 8 feet deep for optimal grounding.

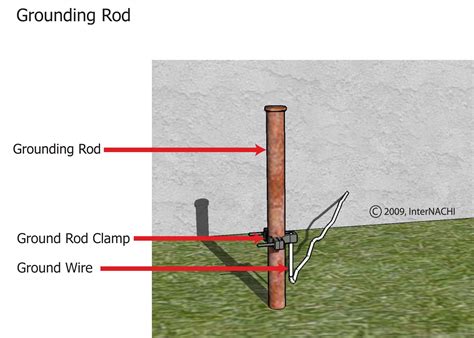

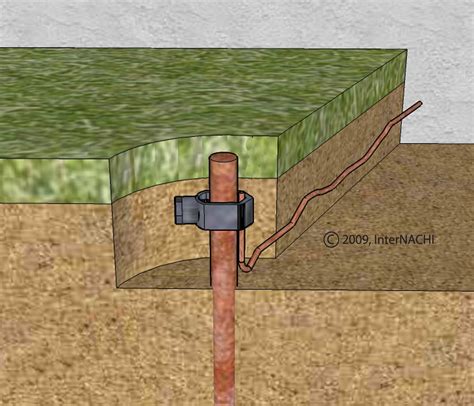

3. Connect the Grounding Wire: Strip about 1 inch of insulation from both ends of the grounding wire. Connect one end of the wire to the House Earthing Rod using a clamping connector. Ensure the connection is secure and free of corrosion.

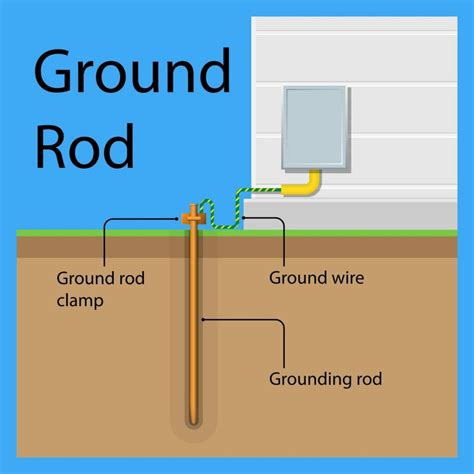

4. Run the Wire to the Main Electrical Panel: Run the grounding wire from the House Earthing Rod to the main electrical panel. Ensure the wire is properly insulated and protected from damage. Use conduit or cable trays if necessary.
5. Connect to the Grounding Bus Bar: Strip the other end of the grounding wire and connect it to the grounding bus bar in the main electrical panel. This bus bar should be connected to the neutral bar and the grounding electrode conductor.
6. Test the Grounding System: Use a multimeter to test the resistance of the grounding system. The resistance should be as low as possible, ideally less than 25 ohms. If the resistance is higher, you may need to install additional grounding rods or improve the soil conductivity.
🔧 Note: Always follow local building codes and regulations when installing a House Earthing Rod. If you are unsure about any aspect of the installation process, consult a licensed electrician.
Benefits of a House Earthing Rod
A properly installed House Earthing Rod offers numerous benefits:
- Enhanced Safety: It reduces the risk of electrical shocks and fires by providing a safe path for electrical currents.
- Equipment Protection: It protects sensitive electronic equipment from power surges and lightning strikes.
- Improved Performance: It minimizes electrical interference and noise, ensuring optimal performance of electrical systems.
- Compliance with Regulations: It helps meet building codes and regulations, ensuring your home is up to standard.
Maintaining Your House Earthing Rod
Maintaining your House Earthing Rod is crucial to ensure its effectiveness over time. Here are some tips for maintaining your grounding system:
- Regular Inspections: Inspect the House Earthing Rod and grounding wire periodically for signs of corrosion or damage.
- Cleaning: Clean the rod and connections to remove any dirt or debris that could affect conductivity.
- Testing: Use a multimeter to test the resistance of the grounding system regularly. Ensure the resistance remains low.
- Replacement: If the House Earthing Rod or grounding wire shows significant signs of wear or damage, replace them promptly.
🔧 Note: Regular maintenance is essential to ensure the longevity and effectiveness of your House Earthing Rod. Always prioritize safety when performing inspections and maintenance.
Common Mistakes to Avoid
When installing a House Earthing Rod, it's important to avoid common mistakes that can compromise its effectiveness:
- Incorrect Placement: Ensure the rod is placed at least 6 feet away from the foundation and in an area with good soil conductivity.
- Inadequate Depth: Drive the rod at least 8 feet deep to ensure proper grounding.
- Poor Connections: Ensure all connections are secure and free of corrosion.
- Ignoring Local Regulations: Always follow local building codes and regulations.
By avoiding these mistakes, you can ensure that your House Earthing Rod provides the necessary protection for your home and its occupants.
Conclusion
A House Earthing Rod is an essential component of any electrical system, providing a safe path for electrical currents to flow into the ground. By understanding the importance of a House Earthing Rod, choosing the right type, and following proper installation and maintenance procedures, you can enhance the safety and performance of your electrical system. Regular inspections and testing are crucial to ensure the longevity and effectiveness of your grounding system. Prioritize safety and compliance with local regulations to protect your home and its occupants from electrical hazards.
