In the realm of industrial maintenance and safety, the concept of Hot Section Inspection stands as a critical practice. This process involves the meticulous examination of components that operate at high temperatures, ensuring they remain functional and safe. Hot Section Inspection is not just a routine check; it is a comprehensive assessment that can prevent catastrophic failures and extend the lifespan of critical machinery.
Understanding Hot Section Inspection
Hot Section Inspection is a specialized form of non-destructive testing (NDT) that focuses on the parts of machinery that are exposed to extreme heat. These components, often found in gas turbines, jet engines, and other high-temperature equipment, are subject to intense thermal stress, which can lead to wear and tear over time. The primary goal of a Hot Section Inspection is to identify any signs of degradation, such as cracks, corrosion, or erosion, before they compromise the integrity of the equipment.
Importance of Hot Section Inspection
Regular Hot Section Inspection is crucial for several reasons:
- Safety: Ensuring that high-temperature components are in good condition prevents accidents and injuries.
- Reliability: Regular inspections help maintain the reliability of machinery, reducing downtime and increasing operational efficiency.
- Cost-Effectiveness: Early detection of issues can prevent costly repairs and replacements, saving both time and money.
- Compliance: Many industries have regulations that require periodic inspections to ensure safety and compliance with standards.
Components Typically Inspected
The components that undergo Hot Section Inspection vary depending on the type of machinery, but they generally include:

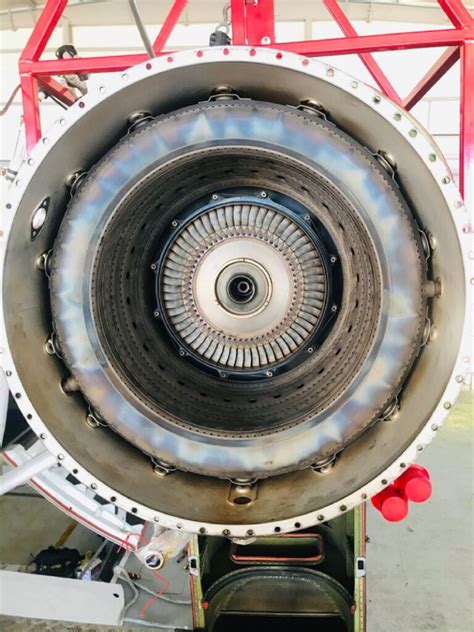

- Combustion chambers

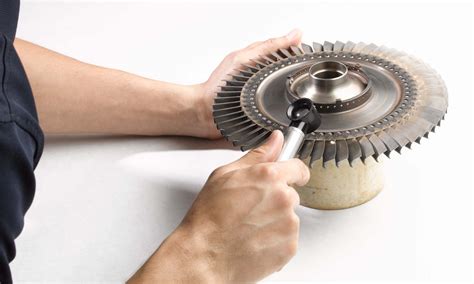

- Turbine blades and vanes
- Nozzle guide vanes
- Exhaust sections
- Heat shields and liners
These components are inspected for various types of damage, including:
- Cracks and fractures
- Corrosion and oxidation
- Erosion and wear
- Distortion and deformation
Methods of Hot Section Inspection
Several methods are employed during a Hot Section Inspection, each tailored to detect specific types of damage. Some of the most common methods include:
Visual Inspection
Visual inspection is the most basic and widely used method. It involves a thorough examination of the component's surface using the naked eye or magnifying tools. This method can detect visible signs of damage such as cracks, corrosion, and erosion.
Borescope Inspection
Borescope inspection uses a flexible or rigid tube with a camera and light source to inspect internal components that are not easily accessible. This method is particularly useful for examining the interior of combustion chambers and turbine sections.
Ultrasonic Testing
Ultrasonic testing uses high-frequency sound waves to detect internal flaws in materials. This method can identify cracks, voids, and other defects that are not visible on the surface.
Eddy Current Testing
Eddy current testing involves passing an alternating current through a coil to generate a magnetic field. This field induces eddy currents in the material being tested, which can detect surface and subsurface defects.
Radiographic Testing
Radiographic testing uses X-rays or gamma rays to create images of the internal structure of a component. This method can detect cracks, voids, and inclusions within the material.
Liquid Penetrant Testing
Liquid penetrant testing involves applying a liquid dye to the surface of the component. The dye penetrates into any surface-breaking defects, which are then made visible under ultraviolet light. This method is effective for detecting cracks and porosity.
Preparation for Hot Section Inspection
Proper preparation is essential for a successful Hot Section Inspection. The following steps should be taken:
- Cleaning: The components must be thoroughly cleaned to remove any dirt, grease, or debris that could interfere with the inspection process.
- Cooling: Hot components must be allowed to cool down to a safe temperature before inspection to prevent injury to the inspectors.
- Documentation: All relevant documentation, including maintenance records and previous inspection reports, should be reviewed to understand the component's history and any known issues.
- Equipment: Ensure that all necessary inspection equipment is available and in good working condition.
🔍 Note: Always follow safety protocols when handling hot components to prevent burns and other injuries.
Conducting the Inspection
Once the preparation is complete, the Hot Section Inspection can begin. The process typically involves the following steps:
- Visual Examination: Conduct a thorough visual inspection of the component's surface to identify any visible signs of damage.
- Borescope Inspection: Use a borescope to inspect internal components that are not easily accessible.
- Non-Destructive Testing: Apply appropriate non-destructive testing methods, such as ultrasonic, eddy current, radiographic, or liquid penetrant testing, to detect internal and subsurface defects.
- Documentation: Record all findings, including the location and severity of any defects, in a detailed report.
📝 Note: It is crucial to document all findings accurately to ensure that any necessary repairs or maintenance can be carried out effectively.
Interpreting the Results
After completing the Hot Section Inspection, the results must be carefully interpreted to determine the condition of the components. This involves:
- Analyzing Data: Review the data collected during the inspection to identify any patterns or trends that may indicate underlying issues.
- Comparing with Standards: Compare the findings with industry standards and regulations to ensure compliance.
- Assessing Severity: Evaluate the severity of any defects and determine whether they require immediate attention or can be monitored over time.
- Recommendations: Provide recommendations for any necessary repairs, maintenance, or further inspections.
Repair and Maintenance
Based on the results of the Hot Section Inspection, appropriate repair and maintenance actions should be taken. This may include:
- Repairing Defects: Repair any identified defects, such as cracks or corrosion, using approved methods and materials.
- Replacing Components: Replace components that are beyond repair or have reached the end of their useful life.
- Coating and Protection: Apply protective coatings to components to enhance their resistance to thermal stress and corrosion.
- Regular Maintenance: Schedule regular maintenance to monitor the condition of the components and prevent future issues.
⚒️ Note: Always follow manufacturer guidelines and industry standards when performing repairs and maintenance.
Training and Certification
Conducting a Hot Section Inspection requires specialized knowledge and skills. Therefore, it is essential for inspectors to undergo proper training and certification. This ensures that they are competent and capable of performing the inspection accurately and safely. Training programs typically cover:
- Theory and Principles: Understanding the theory and principles behind different inspection methods.
- Practical Skills: Developing practical skills in using inspection equipment and techniques.
- Safety Procedures: Learning safety procedures and protocols to prevent accidents and injuries.
- Regulations and Standards: Familiarizing with industry regulations and standards related to Hot Section Inspection.
Certification programs are available from various organizations and institutions, providing inspectors with the necessary credentials to perform Hot Section Inspection professionally.
Case Studies
To illustrate the importance of Hot Section Inspection, let's examine a few case studies:
Case Study 1: Gas Turbine Inspection
A gas turbine used in a power plant underwent a routine Hot Section Inspection. The inspection revealed several cracks in the turbine blades, which were not visible during previous visual inspections. The cracks were repaired, and the turbine was returned to service. This early detection prevented a potential catastrophic failure, saving the plant from significant downtime and repair costs.
Case Study 2: Jet Engine Maintenance
During a Hot Section Inspection of a jet engine, inspectors discovered severe erosion on the combustion chamber walls. The erosion was caused by high-velocity gas flow and was not detectable through visual inspection alone. The combustion chamber was replaced, and the engine was returned to service. This proactive maintenance ensured the safety and reliability of the engine, preventing potential in-flight failures.
Case Study 3: Industrial Furnace Repair
An industrial furnace used in a manufacturing process underwent a Hot Section Inspection after experiencing reduced efficiency. The inspection identified significant corrosion on the furnace walls, which was affecting heat distribution. The corroded sections were repaired, and the furnace was returned to optimal performance. This inspection not only improved the furnace's efficiency but also extended its lifespan.
Future Trends in Hot Section Inspection
The field of Hot Section Inspection is continually evolving, driven by advancements in technology and the need for more efficient and accurate inspection methods. Some of the future trends include:
- Automated Inspection Systems: The development of automated inspection systems that use robotics and artificial intelligence to perform inspections more efficiently and accurately.
- Advanced Imaging Techniques: The use of advanced imaging techniques, such as 3D scanning and thermal imaging, to provide more detailed and comprehensive inspections.
- Predictive Maintenance: The integration of predictive maintenance systems that use data analytics and machine learning to predict when components are likely to fail, allowing for proactive maintenance.
- Remote Inspection: The use of remote inspection technologies, such as drones and remote-controlled borescopes, to inspect components in hard-to-reach areas.
These advancements are expected to enhance the effectiveness and efficiency of Hot Section Inspection, ensuring the safety and reliability of high-temperature machinery.
In conclusion, Hot Section Inspection is a vital practice in industrial maintenance and safety. It involves the thorough examination of components that operate at high temperatures, ensuring they remain functional and safe. Regular inspections can prevent catastrophic failures, extend the lifespan of machinery, and save costs associated with repairs and replacements. By understanding the importance of Hot Section Inspection and following best practices, industries can maintain the reliability and safety of their high-temperature equipment, ensuring smooth and efficient operations.
