Installing and configuring a Honeywell Thermostat can significantly enhance the comfort and efficiency of your home's heating and cooling system. One of the critical aspects of this process is understanding the Honeywell Thermostat Wiring. Proper wiring ensures that your thermostat communicates effectively with your HVAC system, allowing you to control temperature settings accurately. This guide will walk you through the essential steps and considerations for Honeywell Thermostat Wiring, ensuring a smooth and successful installation.
Understanding the Basics of Honeywell Thermostat Wiring
Before diving into the installation process, it's crucial to grasp the fundamentals of Honeywell Thermostat Wiring. Most thermostats use a standard set of wires to connect to the HVAC system. These wires are color-coded and serve specific functions:
- Red Wire (R or Rh): Power wire that provides constant power to the thermostat.
- White Wire (W): Heating wire that signals the furnace to turn on.
- Yellow Wire (Y): Cooling wire that signals the air conditioner to turn on.
- Green Wire (G): Fan wire that controls the blower fan.
- Blue Wire (C): Common wire that provides continuous power to the thermostat.
- Orange Wire (O/B): Reversing valve wire for heat pumps.
Some thermostats may also use additional wires for more advanced features, such as humidity control or smart home integration. Always refer to your specific thermostat's manual for detailed wiring instructions.
Preparing for Installation
Before you begin the Honeywell Thermostat Wiring process, gather the necessary tools and materials:
- Screwdriver
- Wire stripper
- New Honeywell Thermostat
- Old thermostat (if replacing)
Ensure that the power to your HVAC system is turned off at the circuit breaker to avoid any electrical hazards. Remove the old thermostat by unscrewing it from the wall and gently pulling it out. Take a photo of the existing wiring for reference, as this will help you reconnect the wires correctly to the new thermostat.
Identifying the Wires

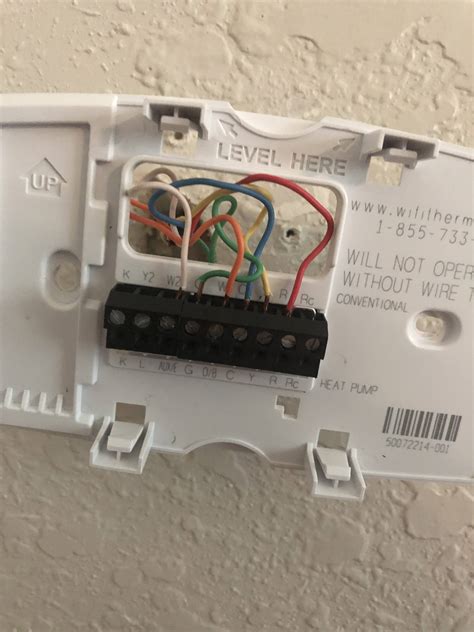

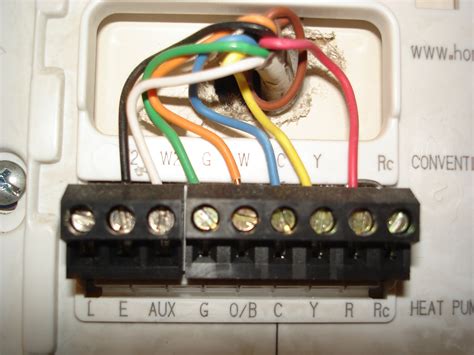

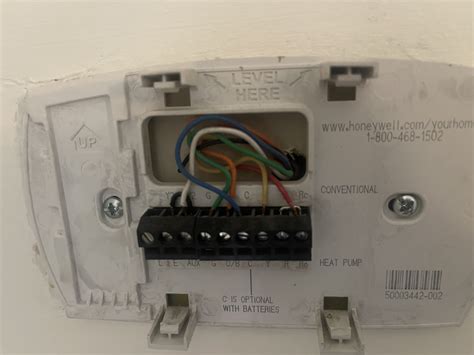

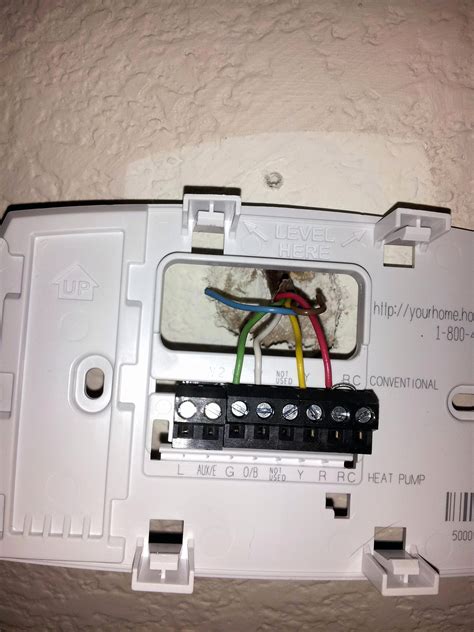

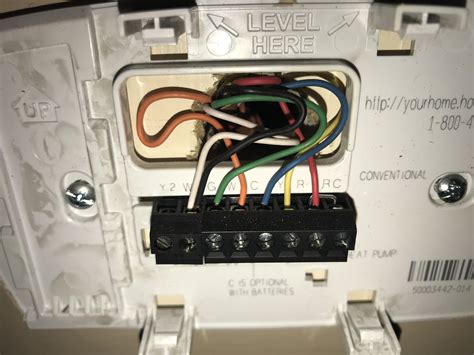

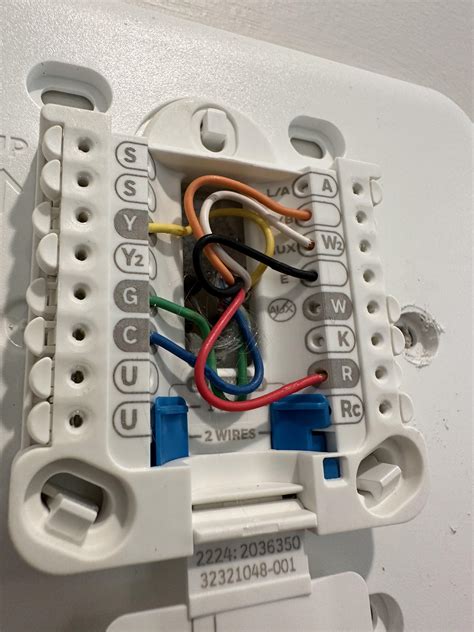

Once you have removed the old thermostat, you will see a set of wires connected to the terminal screws. Identify each wire based on its color and function. If the wires are not color-coded or if the colors do not match the standard, use a multimeter to test the continuity and determine the function of each wire.
If your HVAC system uses a common wire (C wire), ensure that it is connected properly. The C wire provides continuous power to the thermostat, which is essential for models with advanced features like Wi-Fi connectivity. If your system does not have a C wire, you may need to install one or use a power adapter.
Connecting the Wires to the Honeywell Thermostat
With the wires identified, you can now proceed with the Honeywell Thermostat Wiring. Follow these steps to connect the wires to the new thermostat:
- Align the new thermostat with the wall plate and insert the wires through the holes in the back of the thermostat.
- Connect each wire to the corresponding terminal on the thermostat. Refer to the wiring diagram provided in the thermostat's manual to ensure correct connections.
- Tighten the terminal screws securely to ensure a good connection.
- Gently push the thermostat back onto the wall plate and secure it with screws.
If your thermostat requires a C wire and your system does not have one, you can use a C wire adapter or a power extender kit. These devices provide the necessary power to the thermostat without modifying the existing wiring.
Testing the Thermostat
After completing the Honeywell Thermostat Wiring, turn the power back on at the circuit breaker. The thermostat should power up, and you can begin the setup process. Follow the on-screen instructions to configure the thermostat settings, including temperature preferences, scheduling, and any additional features.
Test the thermostat by setting it to a higher or lower temperature and observing the HVAC system's response. Ensure that the heating and cooling functions work correctly and that the fan operates as expected.
🔧 Note: If the thermostat does not power on or if the HVAC system does not respond to the thermostat's commands, double-check the wiring connections and ensure that all wires are securely fastened to the terminals.
Troubleshooting Common Issues
Even with careful Honeywell Thermostat Wiring, you may encounter issues during or after installation. Here are some common problems and their solutions:
- Thermostat does not power on: Check the power supply and ensure that the R and C wires are connected correctly. If using a battery-powered thermostat, replace the batteries.
- HVAC system does not respond: Verify that all wires are securely connected to the correct terminals. Ensure that the system is not in a locked-out state due to multiple failed attempts.
- Incorrect temperature readings: Calibrate the thermostat according to the manufacturer's instructions. Ensure that the thermostat is not exposed to direct sunlight or drafts, which can affect temperature readings.
- Fan runs continuously: Check the fan settings on the thermostat. Ensure that the fan is set to "Auto" instead of "On" if you do not want it to run continuously.
If you continue to experience issues, consult the thermostat's manual or contact Honeywell customer support for further assistance.
Advanced Wiring Configurations
For more advanced HVAC systems, such as those with multiple stages of heating or cooling, you may need to configure additional wires. Here are some common advanced wiring configurations:
- Multi-Stage Heating and Cooling: Use additional W and Y wires (e.g., W2, Y2) to connect to the second stage of heating or cooling. Refer to the thermostat's manual for specific wiring instructions.
- Heat Pumps: Connect the O/B wire to the reversing valve terminal on the thermostat. This wire controls the direction of the refrigerant flow, allowing the system to switch between heating and cooling modes.
- Humidity Control: Use the HUM wire to connect to a humidifier or dehumidifier. This wire allows the thermostat to control the humidity levels in your home.
Always refer to the thermostat's manual for detailed wiring instructions specific to your model and HVAC system configuration.
Safety Precautions
When working with electrical components, it's essential to prioritize safety. Here are some safety precautions to keep in mind during Honeywell Thermostat Wiring:
- Turn off the power to the HVAC system at the circuit breaker before beginning any wiring work.
- Use insulated tools to avoid electrical shocks.
- Avoid touching bare wires or exposed electrical components.
- If you are unsure about any aspect of the wiring process, consult a professional electrician.
By following these safety precautions, you can minimize the risk of electrical hazards and ensure a safe installation process.
⚠️ Note: Always double-check the wiring connections before turning the power back on. Incorrect wiring can cause damage to the thermostat or HVAC system.
Final Thoughts
Proper Honeywell Thermostat Wiring is crucial for the efficient and effective operation of your HVAC system. By understanding the basics of thermostat wiring, preparing for installation, and following the correct wiring procedures, you can ensure a successful installation and optimal performance. Always prioritize safety and consult the thermostat’s manual for specific instructions tailored to your model and HVAC system configuration.
