Highway Capacity Manual

The Highway Capacity Manual (HCM) is a comprehensive guide used by transportation engineers and planners to analyze and design highway systems. It provides methodologies and tools for evaluating the capacity and level of service of various highway facilities, including freeways, multilane highways, and two-lane highways. Understanding the HCM is crucial for ensuring efficient and safe traffic flow, which is essential for modern transportation infrastructure.

Table of Contents

Understanding the Highway Capacity Manual

The Highway Capacity Manual is a critical resource for transportation professionals. It offers a standardized approach to assessing the performance of highway facilities. The manual covers a wide range of topics, including traffic flow theory, capacity analysis, and level of service (LOS) determination. By using the HCM, engineers can make informed decisions about highway design, operation, and management.

Key Concepts in the Highway Capacity Manual

The HCM introduces several key concepts that are fundamental to highway capacity analysis. These concepts include:

Traffic Flow Theory: This involves understanding the principles of traffic flow, including speed, density, and volume. Traffic flow theory helps in predicting how traffic will behave under different conditions.

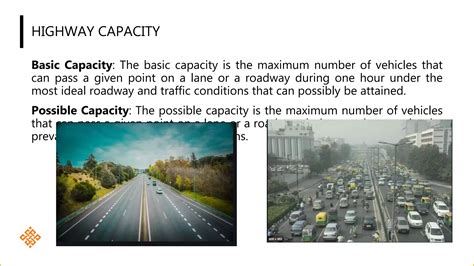

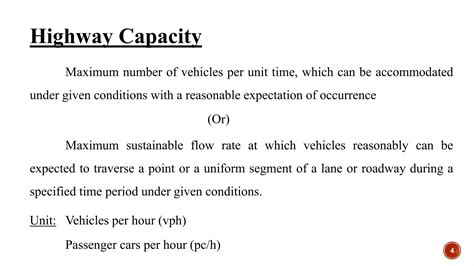

Capacity: Capacity refers to the maximum number of vehicles that can pass a point on a highway during a specific time period under given conditions. It is a crucial metric for determining the efficiency of a highway.

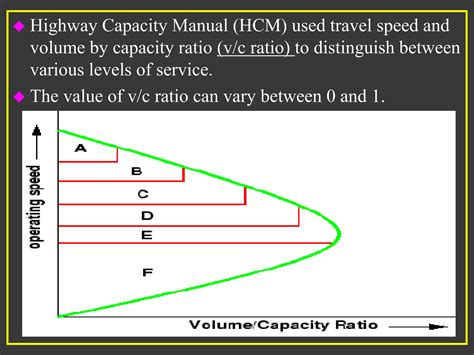

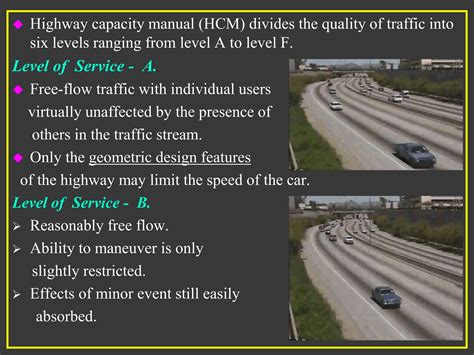

Level of Service (LOS): LOS is a measure of the quality of service provided to highway users. It is categorized into six levels, ranging from A (best) to F (worst), based on factors such as speed, density, and delay.

Methodologies for Highway Capacity Analysis

The HCM provides various methodologies for analyzing highway capacity. These methodologies are designed to address different types of highway facilities and traffic conditions. Some of the key methodologies include:

Freeway Facilities: The HCM offers detailed procedures for analyzing freeway facilities, including basic freeway segments, weaving sections, and ramp junctions. These procedures help in evaluating the capacity and LOS of freeways under various traffic conditions.
Multilane Highways: For multilane highways, the HCM provides methods for analyzing segments with and without grade separations. These methods consider factors such as lane width, shoulder width, and median type.
Two-Lane Highways: The HCM includes procedures for analyzing two-lane highways, which are common in rural areas. These procedures account for factors such as passing sight distance, lane width, and shoulder width.

Applications of the Highway Capacity Manual

The Highway Capacity Manual has numerous applications in transportation engineering and planning. Some of the key applications include:

Highway Design: The HCM is used to design new highways and improve existing ones. By analyzing capacity and LOS, engineers can ensure that highways meet the needs of users and operate efficiently.
Traffic Management: The HCM helps in developing traffic management strategies, such as signal timing, lane management, and incident response. These strategies aim to improve traffic flow and reduce congestion.
Environmental Impact Assessment: The HCM is used to assess the environmental impacts of highway projects. By analyzing traffic flow and emissions, engineers can develop strategies to minimize environmental impacts.

Case Studies and Examples

To illustrate the practical applications of the Highway Capacity Manual, let's consider a few case studies and examples:

Case Study 1: Freeway Capacity Analysis

A transportation agency is planning to widen a freeway to accommodate increasing traffic volumes. Using the HCM, engineers analyze the current capacity and LOS of the freeway. They then simulate the impact of widening the freeway on capacity and LOS. Based on the analysis, the agency decides to add an additional lane to the freeway, which improves the LOS from D to B.

Case Study 2: Multilane Highway Design

A city is designing a new multilane highway to connect two major residential areas. Using the HCM, engineers analyze the capacity and LOS of different design options. They consider factors such as lane width, shoulder width, and median type. Based on the analysis, the city selects a design that provides the best balance of capacity and safety.

Case Study 3: Two-Lane Highway Improvement

A rural community is experiencing congestion on a two-lane highway. Using the HCM, engineers analyze the current capacity and LOS of the highway. They identify bottlenecks and develop strategies to improve traffic flow, such as widening the highway and improving passing sight distance. Based on the analysis, the community implements the recommended improvements, which reduce congestion and improve safety.

Challenges and Limitations

While the Highway Capacity Manual is a valuable resource, it also has its challenges and limitations. Some of the key challenges and limitations include:

Data Requirements: The HCM requires accurate and comprehensive data for analysis. In some cases, obtaining this data can be challenging, especially in rural or underdeveloped areas.
Complexity: The HCM can be complex and difficult to understand, especially for those new to transportation engineering. It requires a solid understanding of traffic flow theory and statistical analysis.
Assumptions and Simplifications: The HCM makes certain assumptions and simplifications to make analysis feasible. These assumptions may not always hold true in real-world scenarios, which can affect the accuracy of the analysis.

📝 Note: It is important to validate the results of HCM analysis with field observations and real-world data to ensure accuracy and reliability.

Future Directions

The Highway Capacity Manual continues to evolve to address the changing needs of transportation infrastructure. Some of the future directions for the HCM include:

Integration with Advanced Technologies: The HCM is being integrated with advanced technologies such as intelligent transportation systems (ITS) and connected vehicles. These technologies provide real-time data and improve the accuracy of capacity analysis.
Sustainability and Environmental Considerations: The HCM is increasingly focusing on sustainability and environmental considerations. This includes analyzing the environmental impacts of highway projects and developing strategies to minimize these impacts.
Incorporation of Emerging Trends: The HCM is incorporating emerging trends such as autonomous vehicles and shared mobility. These trends are changing the way people travel and require new approaches to capacity analysis.

In conclusion, the Highway Capacity Manual is an essential tool for transportation engineers and planners. It provides a standardized approach to analyzing and designing highway systems, ensuring efficient and safe traffic flow. By understanding the key concepts, methodologies, and applications of the HCM, professionals can make informed decisions about highway design, operation, and management. The future of the HCM lies in integrating advanced technologies, focusing on sustainability, and incorporating emerging trends to meet the evolving needs of transportation infrastructure.
