Understanding the behavior of substances as they undergo phase transitions is a fundamental concept in chemistry and physics. One of the most illustrative tools for this purpose is the Heating Curve Labeled. This graphical representation provides a visual depiction of how the temperature of a substance changes as heat is added. By examining a Heating Curve Labeled, we can gain insights into the different phases a substance can exist in and the energy required to transition between these phases.
What is a Heating Curve?
A heating curve is a graph that plots the temperature of a substance against the amount of heat added to it. This curve is particularly useful for understanding phase changes, such as melting and boiling, which occur at constant temperatures. The curve typically consists of several segments, each representing a different phase of the substance.
Components of a Heating Curve
A typical heating curve includes the following key components:
- Solid Phase: The initial segment where the substance is in a solid state.
- Melting Point: The temperature at which the solid begins to melt and transition into a liquid.
- Liquid Phase: The segment where the substance is in a liquid state.
- Boiling Point: The temperature at which the liquid begins to boil and transition into a gas.
- Gas Phase: The final segment where the substance is in a gaseous state.
Interpreting a Heating Curve Labeled
To fully understand a Heating Curve Labeled, it is essential to recognize the different regions and what they represent. Let’s break down each segment:
Solid Phase
The first segment of the curve represents the solid phase. In this region, the temperature of the substance increases steadily as heat is added. The slope of this segment indicates the specific heat capacity of the solid, which is the amount of heat required to raise the temperature of a given mass of the substance by one degree.
Melting Point
The melting point is the temperature at which the solid begins to melt. This is represented by a horizontal plateau on the heating curve. During this phase transition, the temperature remains constant even as heat is added. The energy supplied during this period is used to break the intermolecular bonds in the solid, converting it into a liquid.
Liquid Phase
After the melting point, the substance enters the liquid phase. Similar to the solid phase, the temperature increases steadily as heat is added. The slope of this segment represents the specific heat capacity of the liquid.
Boiling Point
The boiling point is the temperature at which the liquid begins to boil and transition into a gas. Like the melting point, this is represented by a horizontal plateau on the heating curve. The energy added during this phase transition is used to overcome the intermolecular forces in the liquid, converting it into a gas.
Gas Phase
The final segment of the curve represents the gas phase. In this region, the temperature increases steadily as heat is added. The slope of this segment indicates the specific heat capacity of the gas.

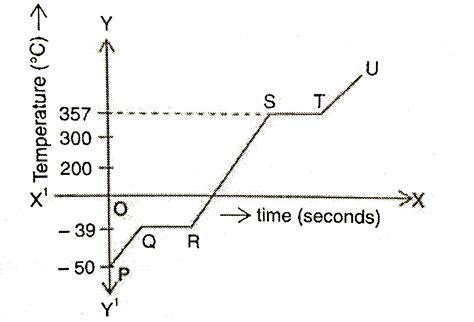

Example of a Heating Curve Labeled

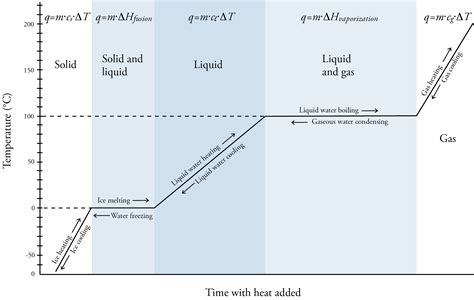

Let’s consider an example of a Heating Curve Labeled for water. The curve would typically include the following labeled segments:
| Phase | Temperature Range | Description |
|---|---|---|
| Solid (Ice) | Below 0°C | Temperature increases steadily. |
| Melting Point | 0°C | Temperature remains constant as ice melts into water. |
| Liquid (Water) | 0°C to 100°C | Temperature increases steadily. |
| Boiling Point | 100°C | Temperature remains constant as water boils into steam. |
| Gas (Steam) | Above 100°C | Temperature increases steadily. |
📝 Note: The specific temperatures and heat capacities can vary depending on the substance and the environmental conditions.
Applications of Heating Curves
Heating curves have numerous applications in various fields, including:
- Chemical Engineering: Understanding phase transitions is crucial for designing and optimizing chemical processes.
- Material Science: Heating curves help in studying the thermal properties of materials, which is essential for developing new materials with specific properties.
- Food Science: In the food industry, heating curves are used to understand the behavior of food components during cooking and processing.
- Environmental Science: Heating curves can be used to study the phase transitions of environmental pollutants, aiding in their remediation and management.
Factors Affecting Heating Curves
Several factors can influence the shape and characteristics of a heating curve. These include:
- Pressure: Changes in pressure can affect the melting and boiling points of a substance, altering the heating curve.
- Impurities: The presence of impurities can lower the melting and boiling points, causing deviations in the heating curve.
- Environmental Conditions: Factors such as humidity and atmospheric conditions can also impact the heating curve.
📝 Note: It is important to consider these factors when interpreting heating curves to ensure accurate analysis.
Conclusion
A Heating Curve Labeled is a powerful tool for understanding the thermal behavior of substances. By examining the different segments of the curve, we can gain insights into the phase transitions and the energy required for these transitions. This knowledge is invaluable in various fields, from chemical engineering to environmental science. Whether you are a student, researcher, or professional, understanding heating curves can enhance your ability to analyze and predict the behavior of substances under different thermal conditions.
