Heat Transfer Coefficient

Understanding the Heat Transfer Coefficient is crucial for engineers and scientists working in fields such as thermal management, HVAC systems, and energy efficiency. This coefficient plays a pivotal role in determining how effectively heat is transferred between a solid surface and a fluid. Whether you are designing a heat exchanger, optimizing a cooling system, or analyzing thermal performance, grasping the fundamentals of the Heat Transfer Coefficient is essential.

What is the Heat Transfer Coefficient?

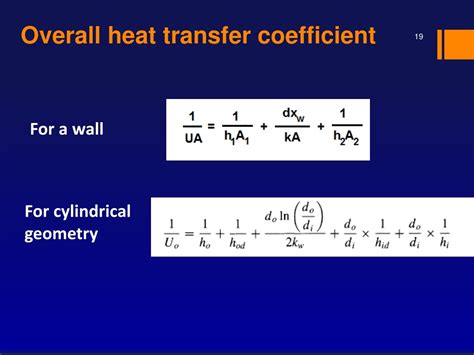

The Heat Transfer Coefficient is a measure of the effectiveness of heat transfer between a solid surface and a fluid. It quantifies the rate at which heat is transferred per unit area per unit temperature difference. This coefficient is crucial in various engineering applications, including the design of heat exchangers, cooling systems, and thermal management solutions. Understanding and accurately calculating the Heat Transfer Coefficient is vital for optimizing thermal performance and ensuring efficient heat transfer.

Importance of the Heat Transfer Coefficient

The Heat Transfer Coefficient is a critical parameter in thermal engineering. It helps in designing systems that efficiently transfer heat, which is essential for various applications. Here are some key reasons why the Heat Transfer Coefficient is important:

• Efficiency: A higher Heat Transfer Coefficient indicates more efficient heat transfer, which is crucial for systems like heat exchangers and cooling systems.
• Cost-Effectiveness: Optimizing the Heat Transfer Coefficient can lead to cost savings by reducing the size and complexity of thermal management systems.
• Performance: Accurate calculation of the Heat Transfer Coefficient ensures that systems perform as expected under various operating conditions.
• Safety: Proper heat transfer is essential for preventing overheating and ensuring the safety of equipment and personnel.

Factors Affecting the Heat Transfer Coefficient

The Heat Transfer Coefficient is influenced by several factors, including:

• Fluid Properties: The thermal conductivity, viscosity, and specific heat of the fluid affect the Heat Transfer Coefficient.
• Flow Characteristics: The velocity and turbulence of the fluid flow impact heat transfer rates.
• Surface Properties: The roughness and material of the solid surface can influence the Heat Transfer Coefficient.
• Temperature Difference: The temperature difference between the solid surface and the fluid affects the rate of heat transfer.
• Geometric Configuration: The shape and size of the heat transfer surface can also impact the Heat Transfer Coefficient.

Calculating the Heat Transfer Coefficient

Calculating the Heat Transfer Coefficient involves understanding the underlying principles of heat transfer. The most common methods for calculating the Heat Transfer Coefficient include:

• Empirical Correlations: These are equations derived from experimental data and are widely used in engineering practice. Examples include the Dittus-Boelter equation for forced convection in pipes and the Churchill-Chu equation for natural convection.
• Analytical Solutions: These involve solving the governing equations of heat transfer, such as the energy equation, to obtain the Heat Transfer Coefficient. This method is more accurate but often more complex.
• Numerical Simulations: Computational Fluid Dynamics (CFD) software can be used to simulate heat transfer processes and calculate the Heat Transfer Coefficient. This method is particularly useful for complex geometries and flow conditions.

Empirical Correlations for the Heat Transfer Coefficient

Empirical correlations are widely used due to their simplicity and reliability. Here are some commonly used correlations for different heat transfer scenarios:

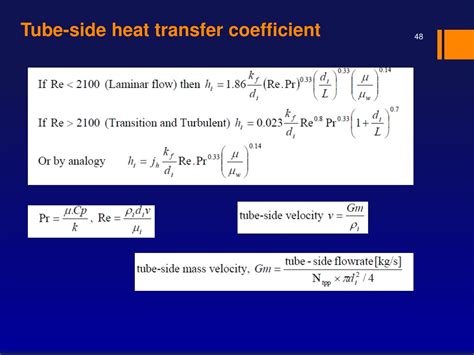

Forced Convection in Pipes

The Dittus-Boelter equation is a popular correlation for calculating the Heat Transfer Coefficient in forced convection through pipes:

Nu = 0.023 Re^0.8 Pr^0.4

Where:

• Nu is the Nusselt number, which is a dimensionless number representing the ratio of convective to conductive heat transfer.
• Re is the Reynolds number, which is a dimensionless number representing the ratio of inertial to viscous forces.
• Pr is the Prandtl number, which is a dimensionless number representing the ratio of momentum diffusivity to thermal diffusivity.

Natural Convection

The Churchill-Chu equation is commonly used for natural convection:

Nu = 0.60 + 0.387 Ra^(¹⁄₆) / (1 + (0.559 / Pr)^(⁹⁄₁₆))^(⁸⁄₂₇)

Where:

• Ra is the Rayleigh number, which is a dimensionless number representing the ratio of buoyancy to viscous forces.
• Pr is the Prandtl number.

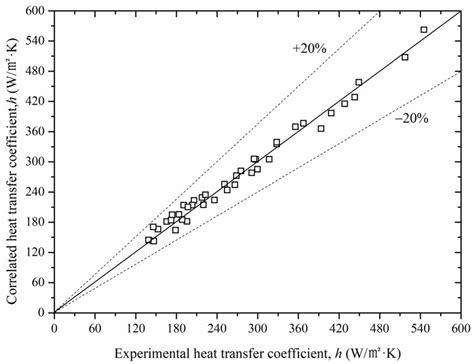

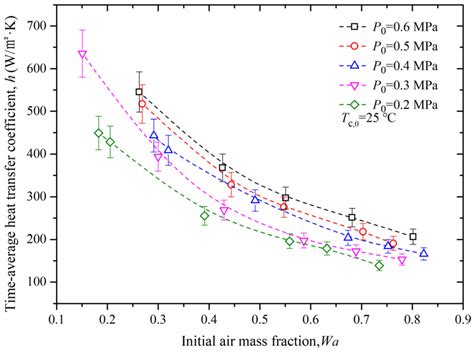

Boiling and Condensation

For boiling and condensation, the Heat Transfer Coefficient can be calculated using correlations specific to these phase change processes. For example, the Rohsenow equation is used for nucleate boiling:

q” = μ_l h_fg / (σ T_sat C_sf Pr_l^s) (T_w - T_sat)^3

Where:

• q” is the heat flux.
• μ_l is the dynamic viscosity of the liquid.
• h_fg is the latent heat of vaporization.
• σ is the surface tension.
• T_sat is the saturation temperature.
• C_sf is a constant that depends on the fluid and surface properties.
• Pr_l is the Prandtl number of the liquid.
• T_w is the wall temperature.

Applications of the Heat Transfer Coefficient

The Heat Transfer Coefficient is applied in various engineering fields. Some of the key applications include:

• Heat Exchangers: The Heat Transfer Coefficient is crucial for designing efficient heat exchangers, which are used in power plants, chemical processing, and HVAC systems.
• Cooling Systems: In electronics and automotive industries, the Heat Transfer Coefficient helps in designing effective cooling systems to prevent overheating.
• Thermal Management: In aerospace and defense, the Heat Transfer Coefficient is used to manage heat in critical systems, ensuring reliable performance.
• Energy Efficiency: Optimizing the Heat Transfer Coefficient can lead to significant energy savings in industrial processes and building HVAC systems.

Challenges in Measuring the Heat Transfer Coefficient

Measuring the Heat Transfer Coefficient accurately can be challenging due to various factors. Some of the common challenges include:

• Experimental Uncertainties: Experimental measurements can be affected by uncertainties in temperature, flow rate, and other parameters.
• Complex Flow Conditions: Turbulent flow and complex geometries can make it difficult to accurately measure the Heat Transfer Coefficient.
• Surface Properties: Variations in surface roughness and material properties can affect the Heat Transfer Coefficient.
• Temperature Gradients: Accurate measurement of temperature gradients is essential for calculating the Heat Transfer Coefficient.

📝 Note: To overcome these challenges, it is important to use reliable measurement techniques and calibration procedures. Advanced instruments and data analysis methods can help improve the accuracy of Heat Transfer Coefficient measurements.

Advanced Techniques for Heat Transfer Coefficient Measurement

Advanced techniques and technologies have been developed to measure the Heat Transfer Coefficient more accurately. Some of these techniques include:

• Infrared Thermography: This non-invasive technique uses infrared cameras to measure surface temperatures, which can be used to calculate the Heat Transfer Coefficient.
• Laser Doppler Anemometry (LDA): LDA is used to measure fluid velocity and turbulence, which are crucial for calculating the Heat Transfer Coefficient in complex flow conditions.
• Computational Fluid Dynamics (CFD): CFD simulations can provide detailed information about heat transfer processes and help in calculating the Heat Transfer Coefficient for complex geometries and flow conditions.
• Heat Flux Sensors: These sensors measure the heat flux directly, which can be used to calculate the Heat Transfer Coefficient.

Case Studies on Heat Transfer Coefficient

To illustrate the practical applications of the Heat Transfer Coefficient, let’s consider a few case studies:

Case Study 1: Heat Exchanger Design

A chemical processing plant needs to design a heat exchanger to cool a hot fluid. The Heat Transfer Coefficient is calculated using empirical correlations and CFD simulations. The design is optimized to ensure efficient heat transfer and minimize energy consumption. The resulting heat exchanger meets the required performance specifications and operates efficiently.

Case Study 2: Electronic Cooling System

An electronics manufacturer needs to design a cooling system for a high-performance computer. The Heat Transfer Coefficient is measured using infrared thermography and heat flux sensors. The cooling system is designed to dissipate heat effectively, preventing overheating and ensuring reliable performance. The system is tested under various operating conditions to validate its effectiveness.

Case Study 3: Building HVAC System

A building HVAC system is designed to maintain comfortable indoor temperatures. The Heat Transfer Coefficient is calculated for the heat exchangers and ductwork using empirical correlations and CFD simulations. The system is optimized to provide efficient heating and cooling, reducing energy consumption and operating costs. The design is validated through field measurements and adjustments are made as needed.

Future Trends in Heat Transfer Coefficient Research

The field of heat transfer is continually evolving, with new research and technologies emerging. Some of the future trends in Heat Transfer Coefficient research include:

• Nanotechnology: Nanomaterials and nanostructures are being explored for their potential to enhance heat transfer and improve the Heat Transfer Coefficient.
• Advanced Materials: New materials with high thermal conductivity and other desirable properties are being developed to improve heat transfer in various applications.
• Smart Sensors: Advanced sensors and data analysis techniques are being developed to measure the Heat Transfer Coefficient more accurately and in real-time.
• Machine Learning: Machine learning algorithms are being used to analyze large datasets and improve the accuracy of Heat Transfer Coefficient calculations.

📝 Note: Staying updated with the latest research and technologies in heat transfer can help engineers and scientists design more efficient and effective thermal management systems.

Summary of Key Points

The Heat Transfer Coefficient is a critical parameter in thermal engineering, affecting the efficiency and performance of various systems. Understanding and accurately calculating the Heat Transfer Coefficient is essential for designing effective heat exchangers, cooling systems, and thermal management solutions. Empirical correlations, analytical solutions, and numerical simulations are commonly used methods for calculating the Heat Transfer Coefficient. Advanced measurement techniques and technologies, such as infrared thermography and CFD simulations, can help improve the accuracy of Heat Transfer Coefficient measurements. Future trends in heat transfer research include the use of nanotechnology, advanced materials, smart sensors, and machine learning to enhance heat transfer and improve the Heat Transfer Coefficient.

By leveraging these insights and technologies, engineers and scientists can develop more efficient and reliable thermal management systems, contributing to energy savings and improved performance in various applications.
