The Heat Pump Refrigeration Cycle is a fundamental process in the field of thermodynamics, widely used in various applications such as air conditioning, refrigeration, and heat pumps. This cycle involves the transfer of heat from a lower temperature source to a higher temperature sink, utilizing a working fluid that undergoes phase changes. Understanding the Heat Pump Refrigeration Cycle is crucial for optimizing energy efficiency and performance in these systems.
Understanding the Basics of the Heat Pump Refrigeration Cycle
The Heat Pump Refrigeration Cycle operates on the principles of thermodynamics, specifically the laws of conservation of energy and entropy. The cycle consists of four main components: the compressor, condenser, expansion valve, and evaporator. Each component plays a critical role in the transfer of heat and the phase changes of the working fluid.
The Four Main Components of the Heat Pump Refrigeration Cycle

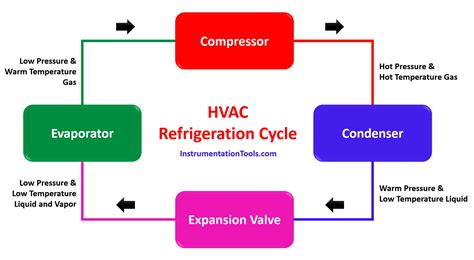

The Heat Pump Refrigeration Cycle can be broken down into four main stages, each corresponding to a component in the system:
- Compressor: The compressor increases the pressure and temperature of the refrigerant vapor. This high-pressure, high-temperature vapor is then directed to the condenser.
- Condenser: In the condenser, the high-pressure vapor releases heat to the surrounding environment, causing it to condense into a high-pressure liquid.
- Expansion Valve: The high-pressure liquid passes through the expansion valve, where it undergoes a rapid expansion, reducing its pressure and temperature. This low-pressure, low-temperature liquid is then directed to the evaporator.
- Evaporator: In the evaporator, the low-pressure liquid absorbs heat from the surrounding environment, causing it to evaporate into a low-pressure vapor. This vapor is then directed back to the compressor, completing the cycle.
The Heat Pump Refrigeration Cycle in Detail

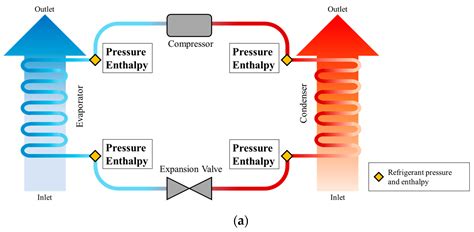

The Heat Pump Refrigeration Cycle can be further understood by examining the thermodynamic processes that occur in each component. These processes can be visualized on a pressure-enthalpy diagram, which plots the pressure of the refrigerant against its enthalpy (total heat content).
The cycle begins with the compressor, where the refrigerant vapor is compressed, increasing its pressure and temperature. This process is represented by a vertical line on the pressure-enthalpy diagram, indicating an increase in enthalpy without a change in pressure. The high-pressure, high-temperature vapor then enters the condenser, where it releases heat to the surrounding environment. This process is represented by a horizontal line on the diagram, indicating a decrease in enthalpy without a change in pressure. The refrigerant then passes through the expansion valve, where it undergoes a rapid expansion, reducing its pressure and temperature. This process is represented by a vertical line on the diagram, indicating a decrease in enthalpy without a change in pressure. Finally, the low-pressure, low-temperature liquid enters the evaporator, where it absorbs heat from the surrounding environment, causing it to evaporate into a low-pressure vapor. This process is represented by a horizontal line on the diagram, indicating an increase in enthalpy without a change in pressure.
Applications of the Heat Pump Refrigeration Cycle
The Heat Pump Refrigeration Cycle has a wide range of applications in various industries. Some of the most common applications include:
- Air Conditioning: In air conditioning systems, the Heat Pump Refrigeration Cycle is used to remove heat from indoor air and transfer it to the outdoor environment, cooling the indoor space.
- Refrigeration: In refrigeration systems, the cycle is used to remove heat from the interior of a refrigerator or freezer, maintaining a low temperature.
- Heat Pumps: In heat pump systems, the cycle is used to transfer heat from a low-temperature source (such as the outdoor air or ground) to a high-temperature sink (such as the indoor air), providing heating for a building.
Efficiency and Performance of the Heat Pump Refrigeration Cycle
The efficiency of the Heat Pump Refrigeration Cycle is typically measured by the Coefficient of Performance (COP), which is the ratio of the heat transferred to the work input. A higher COP indicates a more efficient system. Several factors can affect the efficiency and performance of the cycle, including:
- Refrigerant Selection: The choice of refrigerant can significantly impact the efficiency of the cycle. Different refrigerants have different thermodynamic properties, affecting their performance in the compressor, condenser, expansion valve, and evaporator.
- Component Design: The design and efficiency of the compressor, condenser, expansion valve, and evaporator can also affect the overall performance of the cycle. High-efficiency components can improve the COP and reduce energy consumption.
- Operating Conditions: The operating conditions, such as the temperature and pressure of the refrigerant, can also impact the efficiency of the cycle. Optimizing these conditions can improve performance and reduce energy consumption.
To further illustrate the efficiency and performance of the Heat Pump Refrigeration Cycle, consider the following table, which compares the COP of different types of heat pumps under various operating conditions:
| Type of Heat Pump | Operating Conditions | COP |
|---|---|---|
| Air-Source Heat Pump | Heating Mode, Outdoor Temperature 40°F (4.4°C) | 2.5-3.0 |
| Ground-Source Heat Pump | Heating Mode, Ground Temperature 50°F (10°C) | 3.5-4.0 |
| Air-Conditioning System | Cooling Mode, Indoor Temperature 75°F (23.9°C), Outdoor Temperature 95°F (35°C) | 3.0-3.5 |
| Refrigeration System | Cooling Mode, Evaporator Temperature 32°F (0°C), Condenser Temperature 104°F (40°C) | 2.0-2.5 |
💡 Note: The COP values provided in the table are approximate and can vary based on specific system designs and operating conditions.
Optimizing the Heat Pump Refrigeration Cycle
Optimizing the Heat Pump Refrigeration Cycle involves several strategies to improve efficiency and performance. Some of the key strategies include:
- Refrigerant Selection: Choosing a refrigerant with favorable thermodynamic properties can improve the efficiency of the cycle. For example, refrigerants with a lower boiling point can improve the performance of the evaporator, while refrigerants with a higher boiling point can improve the performance of the condenser.
- Component Design: Designing high-efficiency components can also improve the overall performance of the cycle. For example, using a variable-speed compressor can improve the efficiency of the compressor, while using a microchannel condenser can improve the efficiency of the condenser.
- Operating Conditions: Optimizing the operating conditions can also improve the efficiency of the cycle. For example, maintaining a consistent temperature and pressure in the evaporator and condenser can improve the performance of the cycle.
Additionally, implementing advanced control strategies, such as variable-speed drives and adaptive control algorithms, can further optimize the performance of the Heat Pump Refrigeration Cycle. These strategies can help maintain optimal operating conditions and improve energy efficiency.
Challenges and Future Directions
Despite its widespread use and benefits, the Heat Pump Refrigeration Cycle faces several challenges. One of the main challenges is the environmental impact of refrigerants. Many traditional refrigerants, such as chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs), have been phased out due to their ozone-depleting potential. Newer refrigerants, such as hydrofluorocarbons (HFCs), are being developed to replace these environmentally harmful substances. However, HFCs also have a high global warming potential, and efforts are underway to develop more environmentally friendly alternatives.
Another challenge is the energy efficiency of the cycle. While the Heat Pump Refrigeration Cycle is generally efficient, there is always room for improvement. Researchers are exploring new technologies and materials to enhance the performance of the cycle, such as advanced compressors, heat exchangers, and refrigerants.
Looking ahead, the future of the Heat Pump Refrigeration Cycle is promising. With advancements in technology and materials, the cycle is expected to become even more efficient and environmentally friendly. Additionally, the increasing demand for energy-efficient and sustainable solutions is driving innovation in this field, paving the way for new applications and improvements in existing systems.
In conclusion, the Heat Pump Refrigeration Cycle is a fundamental process in thermodynamics with wide-ranging applications in air conditioning, refrigeration, and heat pumps. Understanding the cycle’s components, processes, and efficiency factors is crucial for optimizing performance and energy consumption. By addressing the challenges and exploring future directions, the Heat Pump Refrigeration Cycle will continue to play a vital role in sustainable and efficient energy solutions.
