Heat pumps are becoming increasingly popular as a sustainable and efficient solution for heating and cooling homes and buildings. Understanding how a heat pump works and its components is crucial for anyone considering this technology. A Heat Pump Diagram can be an invaluable tool in visualizing the system's operation and components. This post will delve into the intricacies of heat pumps, their types, components, and how a Heat Pump Diagram can aid in understanding their functionality.
Understanding Heat Pumps
A heat pump is a device that transfers heat from one location to another. Unlike traditional heating systems that generate heat, heat pumps move heat from a cooler space to a warmer space, making them highly efficient. This process is achieved through a cycle of evaporation, compression, condensation, and expansion, similar to how a refrigerator works.
Types of Heat Pumps
There are several types of heat pumps, each designed for different applications and climates. The most common types include:

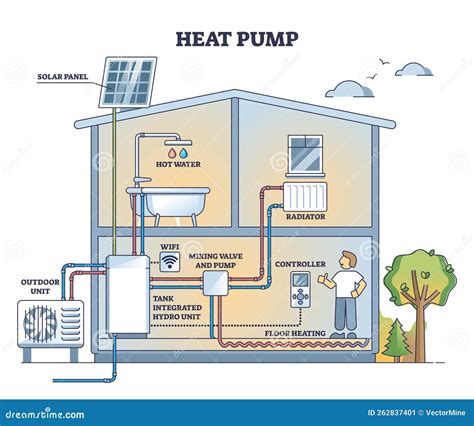

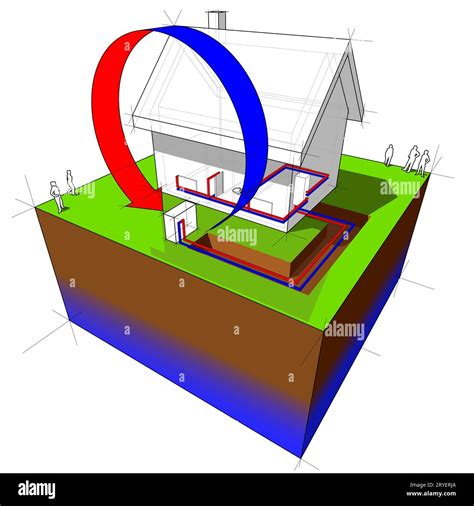

- Air-Source Heat Pumps: These are the most common type, transferring heat between the indoor air and the outdoor air.

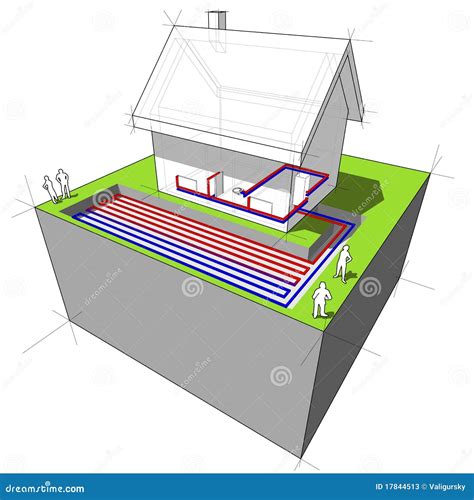

- Ground-Source (Geothermal) Heat Pumps: These systems transfer heat between the indoor air and the ground or a nearby water source.
- Water-Source Heat Pumps: These pumps transfer heat between the indoor air and a body of water, such as a lake or pond.

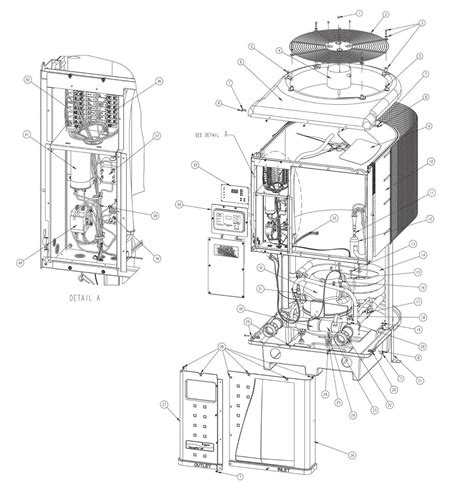

The Components of a Heat Pump
A typical heat pump system consists of several key components. Understanding these components is essential for interpreting a Heat Pump Diagram. The main components include:
- Compressor: This component compresses the refrigerant, increasing its temperature and pressure.
- Condenser: In the cooling mode, the condenser releases heat from the refrigerant to the outdoor air. In the heating mode, it absorbs heat from the outdoor air.
- Expansion Valve: This valve reduces the pressure of the refrigerant, causing it to expand and cool down.
- Evaporator: In the cooling mode, the evaporator absorbs heat from the indoor air. In the heating mode, it releases heat to the indoor air.
- Refrigerant: This is the substance that circulates through the system, absorbing and releasing heat.
- Reversing Valve: This component allows the heat pump to switch between heating and cooling modes.
How a Heat Pump Works
The operation of a heat pump can be understood through its refrigeration cycle, which involves four main processes:
- Evaporation: The refrigerant absorbs heat from the source (indoor or outdoor air, ground, or water) and evaporates, turning from a liquid to a gas.
- Compression: The compressor increases the pressure and temperature of the refrigerant gas.
- Condensation: The high-pressure, high-temperature refrigerant gas releases heat to the sink (indoor or outdoor air, ground, or water) and condenses back into a liquid.
- Expansion: The refrigerant liquid passes through the expansion valve, reducing its pressure and temperature, ready to absorb heat again.

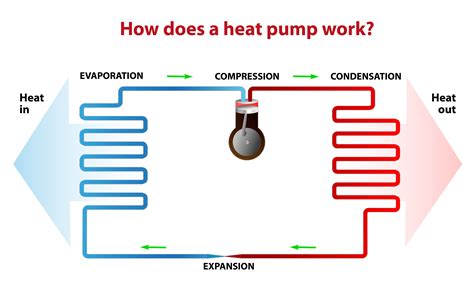

This cycle is repeated continuously to transfer heat from one location to another. A Heat Pump Diagram can visually represent this cycle, making it easier to understand the flow of refrigerant and the heat transfer process.
Interpreting a Heat Pump Diagram
A Heat Pump Diagram is a visual representation of the heat pump system, showing the components and their connections. Here is a breakdown of what you might see in a typical Heat Pump Diagram:
The diagram typically includes the following elements:
- Compressor: Located between the evaporator and the condenser, the compressor is shown as a box with an arrow indicating the direction of refrigerant flow.
- Condenser: Represented as a coil or a series of tubes, the condenser is where the refrigerant releases heat.
- Expansion Valve: Shown as a small valve or restrictor, it controls the flow of refrigerant into the evaporator.
- Evaporator: Similar to the condenser, the evaporator is represented as a coil or series of tubes where the refrigerant absorbs heat.
- Reversing Valve: This component is often shown as a switch or valve that changes the direction of refrigerant flow, allowing the system to switch between heating and cooling modes.
By studying a Heat Pump Diagram, you can gain a clearer understanding of how each component interacts and how the refrigerant flows through the system. This visual aid is particularly useful for troubleshooting and maintenance.
Benefits of Heat Pumps
Heat pumps offer several advantages over traditional heating and cooling systems:
- Energy Efficiency: Heat pumps are highly efficient because they move heat rather than generate it. This results in lower energy consumption and reduced utility bills.
- Environmentally Friendly: By using electricity instead of burning fossil fuels, heat pumps produce fewer greenhouse gas emissions, making them a more eco-friendly option.
- Versatility: Heat pumps can provide both heating and cooling, making them a versatile solution for year-round comfort.
- Cost Savings: Although the initial installation cost may be higher, the long-term savings on energy bills can make heat pumps a cost-effective choice.
Maintenance and Troubleshooting
Regular maintenance is essential to keep your heat pump running efficiently. Here are some key maintenance tasks and troubleshooting tips:
- Regular Cleaning: Clean or replace air filters regularly to ensure proper airflow.
- Check Refrigerant Levels: Low refrigerant levels can reduce the efficiency of the heat pump. A professional should check and refill the refrigerant as needed.
- Inspect Ductwork: Ensure that the ductwork is properly sealed and insulated to prevent heat loss.
- Monitor Performance: Keep an eye on the heat pump's performance. If you notice any unusual noises, reduced heating or cooling capacity, or increased energy bills, it may be time for a professional inspection.
🔧 Note: Always consult a professional for complex maintenance tasks or troubleshooting issues to avoid damaging the system.
Choosing the Right Heat Pump
Selecting the right heat pump for your needs involves considering several factors:
- Climate: Different types of heat pumps are better suited for different climates. For example, air-source heat pumps are generally more effective in milder climates, while ground-source heat pumps can handle colder temperatures.

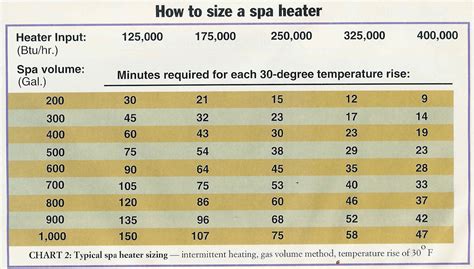

- Size: The size of the heat pump should match the heating and cooling needs of your home or building. An undersized unit will struggle to maintain comfort, while an oversized unit will cycle on and off frequently, reducing efficiency.
- Efficiency Ratings: Look for heat pumps with high Seasonal Energy Efficiency Ratio (SEER) and Heating Seasonal Performance Factor (HSPF) ratings. These ratings indicate the system's energy efficiency.
- Cost: Consider both the initial installation cost and the long-term operating costs. While a more expensive unit may have higher upfront costs, it could save you money in the long run through lower energy bills.
By carefully evaluating these factors and consulting with a professional, you can choose a heat pump that meets your specific needs and provides optimal performance.
Installation Considerations
Proper installation is crucial for the efficient operation of a heat pump. Here are some key considerations for installing a heat pump:
- Location: The outdoor unit should be placed in a location with good airflow and away from obstructions that could block the airflow.
- Ductwork: Ensure that the ductwork is properly sized and sealed to minimize heat loss and improve efficiency.
- Electrical Requirements: Heat pumps require a dedicated electrical circuit. Make sure your electrical system can handle the additional load.
- Professional Installation: It is highly recommended to hire a professional for the installation to ensure that the system is set up correctly and operates efficiently.
By following these guidelines, you can ensure that your heat pump is installed correctly and operates at peak efficiency.
Common Heat Pump Problems
While heat pumps are generally reliable, they can encounter issues over time. Here are some common problems and their potential causes:
| Problem | Potential Cause | Solution |
|---|---|---|
| Insufficient Heating or Cooling | Low refrigerant levels, dirty air filters, or improper sizing | Check and refill refrigerant, clean or replace air filters, and ensure proper sizing |
| Unusual Noises | Loose components, refrigerant leaks, or compressor issues | Inspect and tighten components, check for leaks, and consult a professional for compressor issues |
| High Energy Bills | Inefficient operation, poor insulation, or duct leaks | Improve insulation, seal ductwork, and ensure the system is operating efficiently |
| Frequent Cycling | Oversized unit, thermostat issues, or improper installation | Ensure proper sizing, check the thermostat, and consult a professional for installation issues |
Regular maintenance and prompt attention to these issues can help keep your heat pump running smoothly and efficiently.
In conclusion, heat pumps are a highly efficient and environmentally friendly solution for heating and cooling. Understanding the components and operation of a heat pump, as well as interpreting a Heat Pump Diagram, can help you make informed decisions about installation, maintenance, and troubleshooting. By choosing the right heat pump and ensuring proper installation and maintenance, you can enjoy year-round comfort while saving on energy costs.
