Heat exchangers are essential components in various industrial and residential applications, playing a crucial role in transferring heat from one medium to another. Whether it's for heat exchanger heating in HVAC systems, industrial processes, or even in everyday appliances like refrigerators and water heaters, understanding how heat exchangers work and how to maintain them is vital for efficiency and longevity. This post delves into the intricacies of heat exchangers, their types, applications, and maintenance tips to ensure optimal performance.
Understanding Heat Exchangers
A heat exchanger is a device designed to transfer heat between two or more fluids. The primary function of a heat exchanger is to facilitate the exchange of thermal energy without mixing the fluids. This process is fundamental in various industries, including power generation, chemical processing, and HVAC systems. Heat exchangers can be classified based on their construction and the type of heat transfer process they employ.
Types of Heat Exchangers
Heat exchangers come in various types, each suited for specific applications. The most common types include:
- Shell and Tube Heat Exchangers: These are widely used in industrial settings due to their robustness and efficiency. They consist of a shell (a large pressure vessel) with a bundle of tubes inside it. One fluid flows through the tubes, while the other flows over the tubes within the shell, facilitating heat transfer.
- Plate Heat Exchangers: These are compact and efficient, making them ideal for applications where space is a constraint. They consist of multiple thin plates with corrugated surfaces, which increase the heat transfer area and efficiency.
- Finned Tube Heat Exchangers: These are used in applications where one of the fluids has a low heat transfer coefficient, such as air. Fins are added to the tubes to increase the surface area and enhance heat transfer.
- Regenerative Heat Exchangers: These use a storage medium to alternately store and transfer heat between two fluids. They are often used in high-temperature applications.
Applications of Heat Exchangers
Heat exchangers are ubiquitous in various industries and applications. Some of the key areas where heat exchangers are used include:
- Power Generation: In power plants, heat exchangers are used to transfer heat from the steam to the water in the condenser, improving the efficiency of the power generation process.
- Chemical Processing: Heat exchangers are essential in chemical plants for heating and cooling processes, ensuring that reactions occur at the optimal temperature.
- HVAC Systems: In heating, ventilation, and air conditioning systems, heat exchangers are used to transfer heat between the indoor and outdoor environments, maintaining comfortable indoor temperatures.
- Refrigeration and Air Conditioning: Heat exchangers are crucial in refrigeration systems, where they transfer heat from the refrigerant to the surrounding environment, cooling the desired space.
- Automotive Industry: In vehicles, heat exchangers are used in the engine cooling system, radiators, and intercoolers to maintain optimal operating temperatures.
Heat Exchanger Heating in HVAC Systems
In HVAC systems, heat exchangers play a vital role in heat exchanger heating and cooling processes. The most common types of heat exchangers used in HVAC systems include:

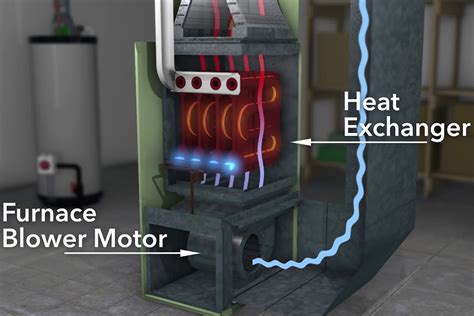

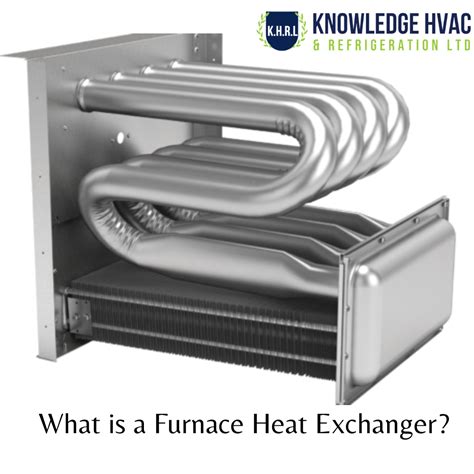

- Finned Tube Heat Exchangers: These are used in air handlers and furnaces to transfer heat from the heating element to the air.
- Plate Heat Exchangers: These are used in water-to-water heat exchangers, such as in geothermal heating systems, to transfer heat between two water loops.
- Shell and Tube Heat Exchangers: These are used in large-scale HVAC systems, such as in commercial buildings, to transfer heat between water and refrigerant loops.

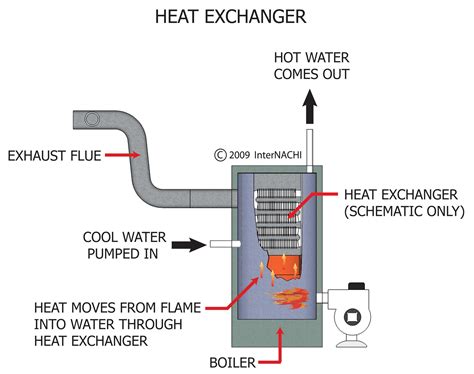

In heat exchanger heating systems, the heat exchanger transfers heat from the heating source (such as a boiler or heat pump) to the air or water that is distributed throughout the building. This process ensures that the indoor environment is maintained at a comfortable temperature.
📝 Note: Proper sizing and selection of heat exchangers are crucial for the efficient operation of HVAC systems. Undersized or improperly selected heat exchangers can lead to inefficiencies and increased energy consumption.
Maintenance of Heat Exchangers
Maintaining heat exchangers is essential for ensuring their longevity and efficiency. Regular maintenance can prevent issues such as fouling, corrosion, and scaling, which can significantly reduce the performance of heat exchangers. Some key maintenance tips include:
- Regular Cleaning: Cleaning the heat exchanger surfaces regularly can prevent the buildup of dirt, dust, and other contaminants that can impede heat transfer.
- Inspection for Leaks: Regularly inspect the heat exchanger for leaks, which can lead to loss of efficiency and potential safety hazards.
- Monitoring Performance: Keep track of the heat exchanger's performance metrics, such as temperature differentials and flow rates, to detect any deviations that may indicate a problem.
- Replacing Worn-out Parts: Replace any worn-out or damaged parts, such as gaskets, seals, and tubes, to maintain the integrity of the heat exchanger.
- Using Appropriate Fluids: Ensure that the fluids used in the heat exchanger are compatible with the materials of construction to prevent corrosion and scaling.
In addition to regular maintenance, it is important to follow the manufacturer's guidelines for the specific type of heat exchanger being used. This includes adhering to recommended cleaning procedures, using approved cleaning agents, and scheduling professional inspections and maintenance.
📝 Note: Always follow safety protocols when performing maintenance on heat exchangers, especially when dealing with high-pressure and high-temperature systems. Proper personal protective equipment (PPE) should be used, and the system should be properly isolated and depressurized before any maintenance work is carried out.
Common Issues and Troubleshooting
Despite regular maintenance, heat exchangers can still encounter issues that affect their performance. Some common problems and their troubleshooting steps include:
- Reduced Heat Transfer Efficiency: This can be caused by fouling, scaling, or corrosion. Cleaning the heat exchanger surfaces and replacing any damaged parts can help restore efficiency.
- Leaks: Leaks can occur due to worn-out gaskets, seals, or damaged tubes. Inspecting and replacing these components can prevent leaks and maintain the integrity of the heat exchanger.
- Flow Imbalances: Uneven flow distribution can lead to inefficient heat transfer. Balancing the flow rates and ensuring proper fluid distribution can improve performance.
- Temperature Deviations: Significant deviations in temperature differentials can indicate issues such as fouling, leaks, or flow imbalances. Monitoring and adjusting the system parameters can help resolve these issues.
Regular monitoring and troubleshooting can help identify and address issues before they become major problems, ensuring the continued efficient operation of the heat exchanger.
📝 Note: If troubleshooting steps do not resolve the issue, it is advisable to consult a professional technician or the manufacturer for further assistance. They can provide specialized knowledge and tools to diagnose and fix complex problems.
Efficiency and Energy Savings
Efficient operation of heat exchangers is crucial for energy savings and reducing operational costs. Some strategies to improve the efficiency of heat exchangers include:
- Optimizing Flow Rates: Ensuring that the flow rates of the fluids are optimized can improve heat transfer efficiency and reduce energy consumption.
- Using High-Efficiency Materials: Selecting materials with high thermal conductivity and corrosion resistance can enhance the performance and longevity of the heat exchanger.
- Implementing Advanced Control Systems: Using advanced control systems, such as variable speed drives and smart sensors, can help monitor and adjust the heat exchanger's performance in real-time, optimizing energy usage.
- Regular Maintenance and Cleaning: As mentioned earlier, regular maintenance and cleaning can prevent fouling and scaling, maintaining the heat exchanger's efficiency.
By implementing these strategies, it is possible to achieve significant energy savings and reduce the environmental impact of heat exchanger operations.
📝 Note: Energy-saving measures should be implemented in conjunction with regular maintenance to ensure sustained efficiency and performance of the heat exchanger.
Case Studies: Real-World Applications
To illustrate the practical applications of heat exchangers, let's consider a few case studies:
Industrial Power Plant
In a large industrial power plant, shell and tube heat exchangers are used in the condenser to transfer heat from the steam to the cooling water. The plant operates 24/7, and any downtime can result in significant financial losses. Regular maintenance, including cleaning and inspection of the heat exchangers, ensures that they operate at peak efficiency, minimizing downtime and maximizing energy production.
Commercial HVAC System
In a commercial building, plate heat exchangers are used in the HVAC system to transfer heat between the indoor and outdoor environments. The building's management implements a preventive maintenance program, including regular cleaning and inspection of the heat exchangers, to ensure optimal performance. This results in energy savings and improved indoor comfort for the occupants.
Automotive Radiator
In an automotive application, finned tube heat exchangers are used in the radiator to cool the engine. The vehicle manufacturer recommends regular maintenance, including flushing the cooling system and inspecting the radiator for leaks, to ensure reliable performance. This helps prevent overheating and potential engine damage, extending the vehicle's lifespan.
📝 Note: These case studies highlight the importance of regular maintenance and proper selection of heat exchangers in various applications. By following best practices, it is possible to achieve optimal performance and energy savings.
Future Trends in Heat Exchanger Technology
The field of heat exchanger technology is continually evolving, with new advancements aimed at improving efficiency, reducing costs, and enhancing sustainability. Some of the emerging trends include:
- Advanced Materials: The development of new materials with superior thermal conductivity and corrosion resistance can enhance the performance and longevity of heat exchangers.
- Nanotechnology: The use of nanotechnology in heat exchangers can improve heat transfer efficiency by increasing the surface area and reducing fouling.
- Smart Sensors and IoT: The integration of smart sensors and Internet of Things (IoT) technology can enable real-time monitoring and control of heat exchangers, optimizing their performance and energy usage.
- Additive Manufacturing: The use of 3D printing and additive manufacturing techniques can allow for the creation of complex heat exchanger designs, improving efficiency and reducing manufacturing costs.
These advancements hold the potential to revolutionize the way heat exchangers are designed, manufactured, and operated, leading to significant improvements in efficiency and sustainability.
📝 Note: Staying updated with the latest trends and technologies in heat exchanger technology can help in making informed decisions and adopting best practices for optimal performance.
Heat exchangers are indispensable components in various industrial and residential applications, playing a crucial role in transferring heat and maintaining efficiency. Understanding the different types of heat exchangers, their applications, and maintenance requirements is essential for ensuring their optimal performance. By following best practices and staying updated with the latest advancements, it is possible to achieve significant energy savings and enhance the sustainability of heat exchanger operations. Regular maintenance, proper selection, and implementation of advanced technologies can help in achieving these goals, ensuring the continued efficient operation of heat exchangers in various applications.
