Hbr Lewis Structure

Understanding the Hbr Lewis Structure is fundamental for anyone studying chemistry, particularly organic chemistry. The Lewis structure, named after Gilbert N. Lewis, is a diagrammatic representation of the valence electrons in a molecule. It helps visualize the bonding between atoms and the lone pairs of electrons. In this post, we will delve into the intricacies of the Hbr Lewis Structure, its significance, and how to draw it step-by-step.

What is a Lewis Structure?

A Lewis structure, also known as an electron dot structure, is a simple way to represent the valence electrons in a molecule. It shows how atoms are bonded together and how electrons are distributed around them. The structure consists of dots representing valence electrons and lines representing covalent bonds.

Importance of Lewis Structures

Lewis structures are crucial for several reasons:

• They help in understanding the bonding and molecular geometry.
• They provide insights into the reactivity of molecules.
• They aid in predicting the properties of compounds.
• They are essential for understanding chemical reactions and mechanisms.

Drawing the Hbr Lewis Structure

To draw the Hbr Lewis Structure, follow these steps:

Step 1: Determine the Total Number of Valence Electrons

First, identify the total number of valence electrons in the molecule. Hydrogen (H) has 1 valence electron, and Bromine (Br) has 7 valence electrons. Therefore, the total number of valence electrons in HBr is:

1 (from H) + 7 (from Br) = 8 valence electrons.

Step 2: Choose the Central Atom

In the case of HBr, Bromine (Br) is the central atom because it is more electronegative than Hydrogen (H).

Step 3: Connect the Atoms with Single Bonds

Draw a single bond between the Hydrogen and Bromine atoms. This uses 2 of the 8 valence electrons.

Step 4: Distribute the Remaining Electrons

Distribute the remaining 6 valence electrons around the Bromine atom to complete its octet. This results in 3 lone pairs on the Bromine atom.

Step 5: Check for Formal Charges

Ensure that the formal charges on all atoms are zero. In the case of HBr, both atoms have a formal charge of zero, confirming that the structure is correct.

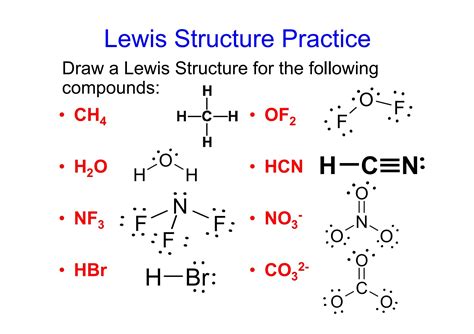

Here is the final Hbr Lewis Structure:

Formal Charges in Lewis Structures

Formal charges are used to determine the most stable Lewis structure. They are calculated using the formula:

Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons) - (Number of bonding electrons / 2)

For HBr:

• Hydrogen (H): 1 - 0 - 1/2 = 0
• Bromine (Br): 7 - 6 - 2/2 = 0

Both atoms have a formal charge of zero, indicating a stable structure.

Resonance Structures

Resonance structures occur when multiple Lewis structures can be drawn for a molecule, differing only in the position of electrons. However, for HBr, there is only one valid Lewis structure, so resonance is not applicable.

Exceptions to the Octet Rule

The octet rule states that atoms tend to have eight valence electrons to achieve stability. However, there are exceptions:

• Hydrogen can only have 2 electrons.
• Elements in the third period and beyond can have more than 8 electrons (expanded octet).

In the case of HBr, both Hydrogen and Bromine follow the octet rule, with Hydrogen having 2 electrons and Bromine having 8 electrons.

Molecular Geometry of HBr

The molecular geometry of HBr is linear. This is because there is only one bond and no lone pairs on the Hydrogen atom, and three lone pairs on the Bromine atom, which repel each other and the bond pair, resulting in a linear shape.

Polarity of HBr

HBr is a polar molecule due to the difference in electronegativity between Hydrogen and Bromine. Bromine is more electronegative than Hydrogen, pulling the shared electrons towards itself and creating a partial negative charge (δ-) on Bromine and a partial positive charge (δ+) on Hydrogen.

💡 Note: The polarity of a molecule affects its physical and chemical properties, such as boiling point, solubility, and reactivity.

Applications of Lewis Structures

Lewis structures have numerous applications in chemistry:

• Predicting molecular shapes and geometries.
• Understanding chemical reactions and mechanisms.
• Designing new compounds with desired properties.
• Teaching and learning chemistry concepts.

By mastering Lewis structures, chemists can gain a deeper understanding of molecular behavior and interactions.

Here is a table summarizing the key points about the Hbr Lewis Structure:

In wrapping up, the Hbr Lewis Structure provides a clear and concise way to represent the bonding and electron distribution in the HBr molecule. By following the steps outlined above, you can draw the Lewis structure for any molecule, gaining insights into its properties and behavior. Understanding Lewis structures is a fundamental skill in chemistry that opens the door to more advanced topics and applications.
