Handicap Ramp Gradient

Building an accessible environment is crucial for ensuring that everyone, regardless of their physical abilities, can navigate spaces with ease. One of the most important elements in achieving this is the installation of a handicap ramp. A handicap ramp gradient, or the slope of the ramp, is a critical factor that determines the accessibility and safety of the ramp. This post will delve into the importance of the handicap ramp gradient, the regulations governing it, and how to design and build a ramp that meets these standards.

Understanding Handicap Ramp Gradient

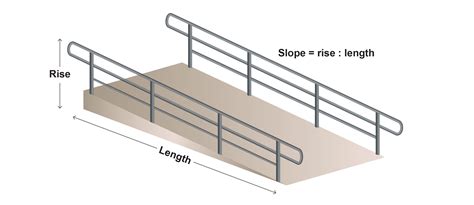

The handicap ramp gradient refers to the slope or incline of the ramp. It is typically measured as the ratio of the rise (vertical height) to the run (horizontal distance). For example, a 1:12 gradient means that for every 1 inch of rise, there are 12 inches of run. The gradient is crucial because it affects how easily a person in a wheelchair or using other mobility aids can navigate the ramp.

Importance of Proper Handicap Ramp Gradient

A properly designed handicap ramp gradient ensures safety and ease of use. Here are some key reasons why the gradient is important:

Safety: A ramp that is too steep can be dangerous, as it increases the risk of falls and accidents. A gentle gradient ensures that users can navigate the ramp safely.
Accessibility: A ramp with an appropriate gradient allows individuals with mobility impairments to access buildings and facilities independently.
Compliance: Adhering to the recommended gradient ensures that the ramp complies with local building codes and accessibility standards, such as the Americans with Disabilities Act (ADA).

Regulations Governing Handicap Ramp Gradient

Several regulations and guidelines govern the design and construction of handicap ramps to ensure they are safe and accessible. The most widely recognized standards are those set by the ADA. According to the ADA, the maximum slope for a ramp should not exceed a 1:12 gradient. This means that for every inch of rise, there should be at least 12 inches of run.

Additionally, the ADA provides guidelines for the length of the ramp. For ramps with a rise greater than 6 inches, the maximum length of the ramp should not exceed 30 feet. If the ramp is longer than 30 feet, it should include landings or rest areas every 30 feet to allow users to rest and regain their strength.

Designing a Handicap Ramp

Designing a handicap ramp involves careful planning and consideration of various factors. Here are the steps to design a ramp that meets the required handicap ramp gradient:

Measure the Rise

The first step is to measure the vertical height (rise) that the ramp needs to cover. This is the difference in elevation between the starting point and the ending point of the ramp.

Calculate the Run

Using the rise measurement, calculate the run based on the recommended gradient. For example, if the rise is 24 inches and the gradient is 1:12, the run would be 24 inches * 12 = 288 inches or 24 feet.

Determine the Length of the Ramp

If the calculated run exceeds 30 feet, you will need to include landings or rest areas. The length of the ramp should be divided into segments of 30 feet or less, with a landing at the end of each segment.

Design the Landing Areas

Landing areas should be at least 5 feet by 5 feet in size and should be level. They provide a safe place for users to rest and turn around if necessary.

Consider the Width of the Ramp

The width of the ramp is also important for accessibility. The ADA recommends a minimum width of 36 inches for ramps. However, a wider ramp (at least 48 inches) is preferable to accommodate larger wheelchairs and mobility aids.

Choose the Right Materials

The materials used for the ramp should be durable, slip-resistant, and weather-resistant. Common materials include concrete, wood, and metal. Ensure that the surface of the ramp provides good traction to prevent slips and falls.

Building a Handicap Ramp

Once the design is complete, the next step is to build the ramp. Here are the key steps involved in the construction process:

Prepare the Site

Clear the area where the ramp will be built and ensure that the ground is level and stable. Remove any debris or obstacles that could interfere with the construction process.

Construct the Frame

Build the frame of the ramp using the calculated dimensions. Ensure that the frame is sturdy and level. Use pressure-treated lumber or metal framing for durability.

🛠️ Note: Always use appropriate safety gear, such as gloves and safety glasses, when handling construction materials.

Install the Decking

Attach the decking material to the frame. Ensure that the decking is securely fastened and provides a smooth, even surface. Use screws or bolts to secure the decking to the frame.

Add Handrails

Install handrails on both sides of the ramp to provide support and stability for users. The handrails should be at a height of 34 to 38 inches above the ramp surface and should extend beyond the top and bottom of the ramp by at least 12 inches.

Finish the Ramp

Apply a non-slip coating or material to the surface of the ramp to enhance traction. Ensure that the ramp is free of any sharp edges or protrusions that could pose a hazard.

Inspect the Ramp

Conduct a thorough inspection of the ramp to ensure that it meets all safety and accessibility standards. Check for any issues with the gradient, width, handrails, and surface condition.

🛠️ Note: Regular maintenance is essential to keep the ramp in good condition. Inspect the ramp periodically for any signs of wear or damage and make necessary repairs.

Common Mistakes to Avoid

When designing and building a handicap ramp, it’s important to avoid common mistakes that can compromise safety and accessibility. Here are some pitfalls to watch out for:

Incorrect Gradient: Ensure that the ramp gradient does not exceed the recommended 1:12 ratio. A steeper gradient can make the ramp difficult and dangerous to use.
Inadequate Width: The ramp should be wide enough to accommodate wheelchairs and mobility aids comfortably. A minimum width of 36 inches is required, but wider is better.
Lack of Handrails: Handrails are essential for providing support and stability. Ensure that handrails are installed on both sides of the ramp and meet the required height and extension specifications.
Poor Surface Condition: The surface of the ramp should be smooth, even, and slip-resistant. Avoid materials that can become slippery when wet or damaged over time.
Insufficient Landings: For ramps longer than 30 feet, include landings or rest areas every 30 feet to allow users to rest and regain their strength.

Case Studies: Successful Handicap Ramp Installations

To illustrate the importance of a well-designed handicap ramp, let’s look at a couple of case studies where proper attention to the handicap ramp gradient made a significant difference:

Case Study 1: Community Center Ramp

A community center decided to install a handicap ramp to make their facility more accessible. The center hired a professional contractor who ensured that the ramp met all ADA guidelines, including a 1:12 gradient. The ramp was built with durable materials and included handrails and landings. The result was a safe and accessible ramp that allowed individuals with mobility impairments to easily enter the community center.

Case Study 2: Residential Home Ramp

A homeowner needed a ramp to provide access to their front door for a family member who used a wheelchair. The homeowner designed the ramp with a 1:12 gradient and ensured that it was wide enough to accommodate the wheelchair. The ramp was constructed with pressure-treated lumber and included handrails for added safety. The family member was able to navigate the ramp with ease, improving their quality of life and independence.

Conclusion

Designing and building a handicap ramp with the correct gradient is essential for ensuring safety and accessibility. By adhering to the recommended guidelines and regulations, such as those set by the ADA, you can create a ramp that meets the needs of individuals with mobility impairments. Proper planning, careful construction, and regular maintenance are key to ensuring that the ramp remains safe and functional over time. Whether for a community center, residential home, or any other facility, a well-designed handicap ramp can make a significant difference in the lives of those who rely on it for access and mobility.
