Hall Petch Equation

The Hall-Petch equation is a fundamental concept in materials science that describes the relationship between the grain size of a material and its yield strength. This equation is crucial for understanding the mechanical properties of polycrystalline materials, such as metals and alloys. By manipulating the grain size, engineers can enhance the strength and durability of materials, making the Hall-Petch equation a cornerstone in the design and development of advanced materials.

Table of Contents

The Hall-Petch Equation: An Overview

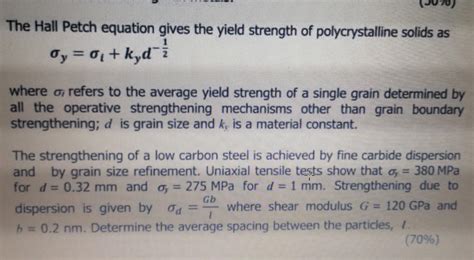

The Hall-Petch equation is mathematically expressed as:

σ_y = σ₀ + k_yd^-¹⁄₂

Where:

σ_y is the yield strength of the material.
σ₀ is the material constant for the starting stress for dislocation movement (or the friction stress).
k_y is the strengthening coefficient (a constant specific to the material).
d is the average grain diameter.

This equation illustrates that as the grain size decreases, the yield strength of the material increases. This phenomenon is known as grain boundary strengthening or Hall-Petch strengthening.

Historical Background

The Hall-Petch equation was independently discovered by E. O. Hall and N. J. Petch in the late 1940s and early 1950s. Hall conducted his research on iron and steel, while Petch worked with various metals. Their findings revealed that the yield strength of a material is inversely proportional to the square root of the grain size. This discovery laid the groundwork for modern materials science and engineering, enabling the development of stronger and more durable materials.

Mechanism of Grain Boundary Strengthening

The Hall-Petch equation is based on the concept of grain boundary strengthening. Grain boundaries act as barriers to dislocation movement, which is the primary mechanism of plastic deformation in metals. When a material is subjected to stress, dislocations move through the crystal lattice, causing the material to deform. However, when dislocations encounter a grain boundary, they are impeded, requiring additional stress to continue moving. This increased stress results in a higher yield strength.

As the grain size decreases, the number of grain boundaries per unit volume increases, leading to more obstacles for dislocation movement. Consequently, the material’s yield strength increases. This is why fine-grained materials are generally stronger than coarse-grained materials.

Applications of the Hall-Petch Equation

The Hall-Petch equation has wide-ranging applications in various industries, including aerospace, automotive, and construction. By understanding and applying this equation, engineers can design materials with tailored mechanical properties to meet specific performance requirements.

For example, in the aerospace industry, materials with high strength-to-weight ratios are crucial for reducing the weight of aircraft components without compromising safety. By controlling the grain size of alloys used in aircraft structures, engineers can enhance their strength and durability, leading to lighter and more efficient aircraft.

In the automotive industry, the Hall-Petch equation is used to develop high-strength steels for vehicle bodies and components. These steels provide better crash resistance and improved fuel efficiency, contributing to safer and more environmentally friendly vehicles.

In construction, the Hall-Petch equation helps in the selection and design of materials for buildings and infrastructure. By optimizing the grain size of materials like concrete and steel, engineers can ensure the structural integrity and longevity of buildings, bridges, and other structures.

Limitations of the Hall-Petch Equation

While the Hall-Petch equation is a powerful tool for understanding grain boundary strengthening, it has certain limitations. One of the primary limitations is that it assumes a linear relationship between yield strength and the inverse square root of grain size. However, experimental data often deviate from this linear relationship, especially at very fine grain sizes.

At extremely small grain sizes, typically below 10-20 nanometers, the Hall-Petch equation may no longer be valid. This is because other strengthening mechanisms, such as grain boundary sliding and diffusion creep, become dominant. In such cases, the material may exhibit a decrease in strength with decreasing grain size, a phenomenon known as the inverse Hall-Petch effect.

Additionally, the Hall-Petch equation does not account for the effects of texture, impurities, and other microstructural features that can influence the mechanical properties of materials. These factors can introduce complexities that are not captured by the simple relationship described by the Hall-Petch equation.

Experimental Validation

To validate the Hall-Petch equation, numerous experimental studies have been conducted on various materials. These studies involve measuring the yield strength of materials with different grain sizes and comparing the results with the predictions of the Hall-Petch equation.

One common method for controlling grain size is through heat treatment processes, such as annealing and quenching. By adjusting the temperature and cooling rate, engineers can achieve different grain sizes and observe their effects on the material’s yield strength.

Another method is through severe plastic deformation techniques, such as equal-channel angular pressing (ECAP) and high-pressure torsion (HPT). These techniques can produce ultrafine-grained materials with grain sizes in the nanometer range, allowing researchers to explore the limits of the Hall-Petch equation.

Advanced Materials and the Hall-Petch Equation

With the advent of advanced materials, such as nanocrystalline and amorphous materials, the Hall-Petch equation continues to be a valuable tool for understanding their mechanical properties. However, these materials often exhibit unique behaviors that challenge the traditional Hall-Petch relationship.

For example, nanocrystalline materials with grain sizes below 100 nanometers may not follow the Hall-Petch equation due to the dominance of grain boundary sliding and other deformation mechanisms. In such cases, alternative models and equations are needed to accurately describe their mechanical behavior.

Amorphous materials, which lack a well-defined grain structure, also do not conform to the Hall-Petch equation. Instead, their mechanical properties are governed by different factors, such as the density of free volume and the presence of short-range order.

Future Directions

The Hall-Petch equation remains a cornerstone of materials science, but ongoing research aims to expand its applicability and address its limitations. Future directions in this field include:

Developing more accurate models that account for the effects of texture, impurities, and other microstructural features.
Exploring the mechanical behavior of materials with extremely fine grain sizes, including nanocrystalline and amorphous materials.
Investigating the role of grain boundaries in other material properties, such as fatigue resistance, corrosion resistance, and electrical conductivity.
Integrating the Hall-Petch equation with advanced computational tools, such as molecular dynamics simulations and finite element analysis, to predict and optimize the mechanical properties of materials.

📝 Note: The Hall-Petch equation is a fundamental concept in materials science, but it is essential to recognize its limitations and the need for further research to fully understand the mechanical behavior of materials.

In summary, the Hall-Petch equation provides a powerful framework for understanding the relationship between grain size and yield strength in polycrystalline materials. By manipulating the grain size, engineers can enhance the strength and durability of materials, leading to advancements in various industries. However, it is crucial to acknowledge the limitations of the Hall-Petch equation and the need for continued research to address these challenges. As materials science continues to evolve, the Hall-Petch equation will remain a vital tool for designing and developing advanced materials with tailored mechanical properties.
