Understanding the H2O Lewis Structure is fundamental for anyone studying chemistry, as it provides a visual representation of how atoms bond to form molecules. The Lewis structure, named after Gilbert N. Lewis, is a diagram that shows the bonding between atoms of a molecule and the lone pairs of electrons that may exist in the molecule. For water (H2O), this structure helps us understand its unique properties and behavior.
What is the H2O Lewis Structure?
The H2O Lewis Structure illustrates the arrangement of electrons in a water molecule. Water is composed of two hydrogen atoms and one oxygen atom. The oxygen atom, being more electronegative, attracts the shared electrons more strongly, leading to polar covalent bonds. This polarity is crucial for understanding water's properties, such as its high boiling point and its ability to act as a solvent.
Steps to Draw the H2O Lewis Structure
Drawing the H2O Lewis Structure involves several steps. Here’s a detailed guide:
- Identify the Total Number of Valence Electrons: Oxygen has 6 valence electrons, and each hydrogen has 1 valence electron. Therefore, the total number of valence electrons in H2O is 6 (from oxygen) + 2 (from hydrogen) = 8.
- Determine the Central Atom: In H2O, oxygen is the central atom because it is the most electronegative and can form multiple bonds.
- Place the Atoms: Arrange the atoms with oxygen in the center and the two hydrogen atoms on either side.
- Form Single Bonds: Connect the hydrogen atoms to the oxygen atom with single bonds. Each bond consists of 2 electrons, so 4 electrons are used for the bonds, leaving 4 electrons.
- Distribute Remaining Electrons: Place the remaining 4 electrons around the oxygen atom as lone pairs.

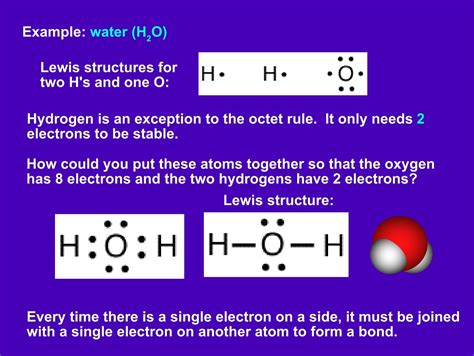

Here is a visual representation of the H2O Lewis Structure:
Understanding the Bonding in H2O
The H2O Lewis Structure reveals that the oxygen atom forms two single bonds with the hydrogen atoms. These bonds are polar covalent bonds because the oxygen atom attracts the shared electrons more strongly than the hydrogen atoms. This results in a partial negative charge (δ-) on the oxygen atom and partial positive charges (δ+) on the hydrogen atoms.
This polarity is crucial for water's unique properties. The partial charges allow water molecules to form hydrogen bonds with each other, which are relatively strong intermolecular forces. These hydrogen bonds are responsible for water's high boiling point, surface tension, and ability to dissolve many substances.
Properties of Water Explained by the H2O Lewis Structure
The H2O Lewis Structure helps explain several key properties of water:
- High Boiling Point: The hydrogen bonds between water molecules require a significant amount of energy to break, resulting in a high boiling point.
- Surface Tension: The cohesive forces between water molecules due to hydrogen bonding create a strong surface tension, allowing water to form droplets and support the weight of small objects.
- Solvent Properties: Water's polarity allows it to dissolve many ionic and polar covalent compounds, making it an excellent solvent.
- Density Anomaly: Water is densest at 4°C, which is why ice floats on liquid water. This is due to the unique arrangement of hydrogen bonds in the solid state.
Comparing H2O with Other Molecules
To better understand the H2O Lewis Structure, it can be helpful to compare it with other molecules. For example, consider the Lewis structures of hydrogen sulfide (H2S) and ammonia (NH3).
| Molecule | Lewis Structure | Bonding |
|---|---|---|
| H2O | |
Polar covalent bonds with hydrogen bonding |
| H2S |  |
Nonpolar covalent bonds |
| NH3 |  |
Polar covalent bonds with hydrogen bonding |
Hydrogen sulfide (H2S) has a similar structure to water but with sulfur as the central atom. Sulfur is less electronegative than oxygen, resulting in nonpolar covalent bonds and weaker intermolecular forces. This explains why H2S has a lower boiling point and is a gas at room temperature.
Ammonia (NH3) has a central nitrogen atom with three hydrogen atoms and one lone pair. The nitrogen atom is more electronegative than hydrogen, leading to polar covalent bonds and hydrogen bonding. However, the presence of only one lone pair in NH3 results in different properties compared to water.
💡 Note: The differences in electronegativity and the number of lone pairs significantly affect the properties of these molecules.
Applications of the H2O Lewis Structure
The H2O Lewis Structure is not just a theoretical concept; it has practical applications in various fields:
- Chemical Engineering: Understanding the bonding in water is crucial for designing processes that involve water, such as purification and treatment.
- Biochemistry: Water is the medium in which biological reactions occur. Knowing its structure helps in understanding biochemical processes.
- Environmental Science: The properties of water, as explained by its Lewis structure, are essential for studying environmental phenomena like the water cycle and pollution.
In summary, the H2O Lewis Structure provides a foundational understanding of water's properties and behavior, which is essential for various scientific and engineering applications.
By studying the H2O Lewis Structure, we gain insights into the fundamental principles of chemistry and the unique characteristics of water. This knowledge is not only academically valuable but also has practical implications in various fields. Understanding the bonding and properties of water helps us appreciate its role in nature and its importance in our daily lives.
