Understanding the structure and behavior of water molecules is fundamental to various fields of science, including chemistry, biology, and environmental science. One of the most effective ways to visualize and comprehend the bonding in water molecules is through the use of Lewis dot structures. The H2O Lewis dot structure provides a clear representation of how hydrogen and oxygen atoms bond to form a water molecule. This structure is not only essential for understanding the properties of water but also serves as a foundational concept in chemical education.
What is a Lewis Dot Structure?
A Lewis dot structure, also known as an electron dot structure, is a diagrammatic representation of the valence electrons in an atom or molecule. It was developed by Gilbert N. Lewis in 1916 and is widely used to predict the bonding between atoms. In a Lewis dot structure, valence electrons are represented as dots around the atomic symbol. The structure helps in understanding the number of bonds an atom can form and the type of bonds (single, double, or triple) that are present.
Constructing the H2O Lewis Dot Structure
To construct the H2O Lewis dot structure, follow these steps:
- Identify the central atom: In a water molecule, oxygen (O) is the central atom because it is more electronegative than hydrogen (H).
- Determine the total number of valence electrons: Oxygen has 6 valence electrons, and each hydrogen atom has 1 valence electron. Therefore, the total number of valence electrons in a water molecule is 6 (from O) + 2 (from 2 H) = 8.
- Place the valence electrons around the central atom: Start by placing 2 electrons between the oxygen and each hydrogen atom to form single bonds. This uses 4 of the 8 valence electrons.
- Distribute the remaining electrons: The remaining 4 electrons are placed around the oxygen atom to complete its octet.

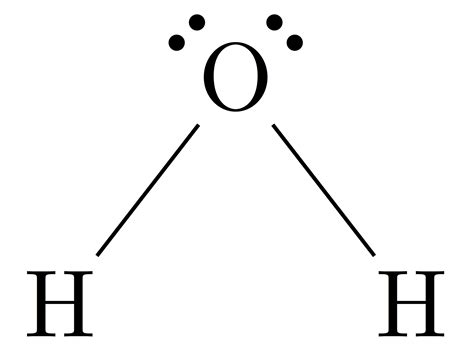

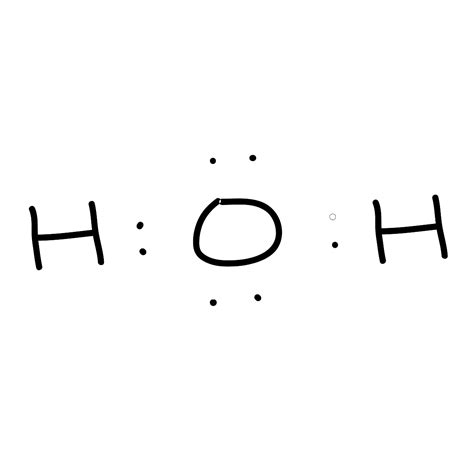

Here is the H2O Lewis dot structure:
Understanding the Bonding in Water
The H2O Lewis dot structure reveals that water molecules have two single covalent bonds between the oxygen atom and each hydrogen atom. The oxygen atom also has two lone pairs of electrons. These lone pairs play a crucial role in the unique properties of water, such as its high boiling point and surface tension.
Properties of Water Explained by the Lewis Dot Structure
The H2O Lewis dot structure helps explain several key properties of water:
- Polarity: The oxygen atom in water is more electronegative than the hydrogen atoms, which means it pulls the shared electrons more strongly towards itself. This results in a polar molecule, where the oxygen end is slightly negative and the hydrogen ends are slightly positive.
- Hydrogen Bonding: The polar nature of water molecules allows them to form hydrogen bonds with neighboring water molecules. These hydrogen bonds are responsible for many of water’s unique properties, including its high boiling point, surface tension, and ability to act as a solvent.
- Solvent Properties: Water’s polarity makes it an excellent solvent for ionic compounds and polar molecules. The partial charges on the water molecule allow it to dissolve a wide range of substances, making it essential for biological processes.
Applications of the H2O Lewis Dot Structure
The H2O Lewis dot structure is not just a theoretical concept; it has practical applications in various fields:
- Chemical Education: Lewis dot structures are a fundamental part of chemistry education. They help students understand the basics of chemical bonding and molecular structure.
- Environmental Science: Understanding the properties of water, as explained by its Lewis dot structure, is crucial for studying environmental processes such as the water cycle, pollution, and climate change.
- Biochemistry: Water is the medium in which all biological processes occur. The H2O Lewis dot structure helps biochemists understand how water interacts with biological molecules, such as proteins and nucleic acids.
Comparing H2O with Other Molecules
To better understand the H2O Lewis dot structure, it can be helpful to compare it with other molecules. For example, consider the Lewis dot structures of hydrogen sulfide (H2S) and ammonia (NH3).
Hydrogen sulfide has a similar structure to water, with sulfur as the central atom and two hydrogen atoms bonded to it. However, sulfur is less electronegative than oxygen, which affects the polarity and bonding properties of H2S.
Ammonia, on the other hand, has nitrogen as the central atom with three hydrogen atoms bonded to it. The nitrogen atom has one lone pair of electrons, which influences its chemical behavior and reactivity.
Here is a comparison table:
| Molecule | Central Atom | Number of Bonds | Lone Pairs |
|---|---|---|---|
| H2O | Oxygen (O) | 2 | 2 |
| H2S | Sulfur (S) | 2 | 2 |
| NH3 | Nitrogen (N) | 3 | 1 |
📝 Note: The number of lone pairs and bonds can significantly affect the shape and properties of a molecule. For example, water's bent shape is due to the presence of two lone pairs on the oxygen atom, which repel the bonding pairs and cause the molecule to bend.
Advanced Topics in Lewis Dot Structures
While the H2O Lewis dot structure provides a basic understanding of water’s bonding, there are more advanced topics to explore:
- Resonance Structures: Some molecules can be represented by multiple Lewis dot structures, known as resonance structures. These structures contribute to the overall bonding and properties of the molecule.
- Formal Charge: Formal charge is a concept used to determine the most stable Lewis dot structure for a molecule. It helps in predicting the reactivity and stability of different molecular structures.
- VSEPR Theory: The Valence Shell Electron Pair Repulsion (VSEPR) theory explains the shapes of molecules based on the repulsion between electron pairs. It is particularly useful for understanding the three-dimensional structure of molecules.
For example, the H2O Lewis dot structure can be further analyzed using VSEPR theory to understand why water molecules have a bent shape. The two lone pairs on the oxygen atom repel the bonding pairs, causing the molecule to adopt a bent geometry with an approximate bond angle of 104.5 degrees.
Here is an image illustrating the VSEPR theory for water:
📝 Note: Understanding advanced topics in Lewis dot structures can enhance your ability to predict molecular behavior and properties, making it a valuable skill in chemistry and related fields.
In summary, the H2O Lewis dot structure is a powerful tool for understanding the bonding and properties of water molecules. It provides insights into water’s polarity, hydrogen bonding, and solvent properties, which are crucial for various scientific disciplines. By exploring the Lewis dot structure of water and comparing it with other molecules, we can gain a deeper understanding of chemical bonding and molecular behavior. This knowledge is essential for advancing our understanding of the natural world and developing new technologies and applications.
