Gyroscope And Precession

Understanding the principles of gyroscope and precession is crucial for anyone interested in physics, engineering, or aerospace. These concepts are fundamental to the behavior of rotating objects and have wide-ranging applications in technology and everyday life. This post will delve into the basics of gyroscopes, the phenomenon of precession, and their practical applications.

Table of Contents

What is a Gyroscope?

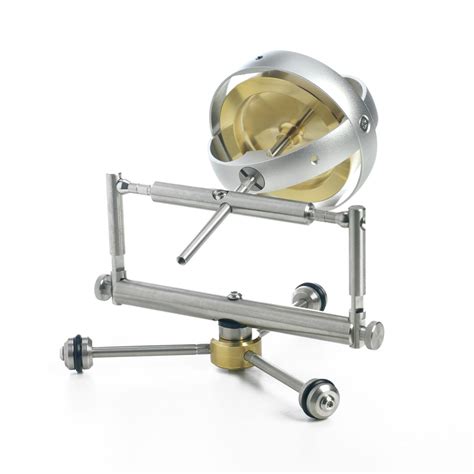

A gyroscope is a device that uses the principles of angular momentum to maintain or measure orientation and angular velocity. It consists of a spinning wheel or disc mounted in a frame that allows it to rotate freely in any direction. The key to a gyroscope's functionality is its ability to resist changes to its axis of rotation, a property known as gyroscopic inertia.

Gyroscopes are used in various applications, including:

Navigation systems in aircraft and ships
Stabilization systems in cameras and drones
Smartphones and tablets for orientation sensing
Automotive stability control systems

The Principle of Precession

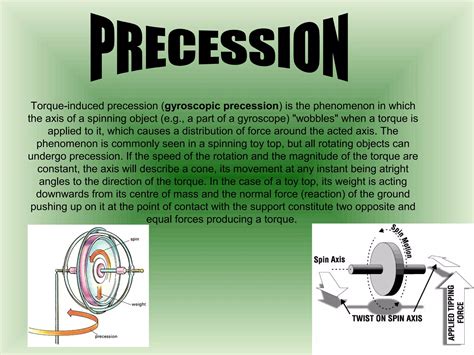

Precession is a fundamental concept in the study of gyroscope and precession. It refers to the change in the orientation of the rotational axis of a rotating object, such as a gyroscope, when a torque is applied. This change occurs in a direction perpendicular to both the applied torque and the original axis of rotation.

To understand precession, consider a spinning top. When the top is spinning, its axis of rotation tends to remain stable. However, if you apply a slight force to the top, its axis will not simply tilt in the direction of the force. Instead, it will precess, moving in a circular path around the vertical axis. This phenomenon is due to the conservation of angular momentum.

Mathematical Explanation of Precession

The mathematical description of precession involves understanding the relationship between torque, angular momentum, and the rate of precession. The formula for the rate of precession (ωp) is given by:

ωp = τ / (I * ω)

Where:

τ is the applied torque
I is the moment of inertia of the gyroscope
ω is the angular velocity of the gyroscope

This formula shows that the rate of precession is directly proportional to the applied torque and inversely proportional to the product of the moment of inertia and the angular velocity. This means that a higher torque will cause faster precession, while a higher moment of inertia or angular velocity will slow it down.

Applications of Gyroscopes and Precession

Gyroscopes and the principle of precession have numerous practical applications across various fields. Some of the most notable applications include:

Gyroscopes are essential components in navigation systems, particularly in aircraft and ships. They help maintain a stable reference frame, allowing for accurate determination of direction and orientation. In inertial navigation systems, gyroscopes work alongside accelerometers to track the position and movement of a vehicle without relying on external references.

Stabilization Systems

Gyroscopes are used in stabilization systems to keep objects steady despite external disturbances. For example, in cameras and drones, gyroscopes help stabilize the image by compensating for unwanted movements. This is achieved by using the gyroscope's ability to resist changes in orientation, ensuring smooth and stable footage.

Automotive Stability Control

In the automotive industry, gyroscopes are used in stability control systems to enhance vehicle safety. These systems monitor the vehicle's orientation and movement, detecting any deviations from the intended path. By applying corrective measures, such as braking individual wheels or adjusting the steering, the system helps prevent skidding and loss of control.

Smartphones and Tablets

Modern smartphones and tablets use gyroscopes to sense orientation and motion. This allows for features like automatic screen rotation, motion-based gaming, and augmented reality applications. The gyroscope works in conjunction with other sensors, such as accelerometers, to provide accurate and responsive motion tracking.

Gyroscope Types and Their Characteristics

There are several types of gyroscopes, each with its own characteristics and applications. The most common types include:

Type of Gyroscope	Description	Applications
Mechanical Gyroscope	A traditional gyroscope with a spinning wheel or disc mounted in a frame.	Navigation systems, stabilization platforms.
Fiber Optic Gyroscope	Uses the interference of light in optical fibers to measure rotation.	Aerospace, marine navigation, high-precision applications.
Ring Laser Gyroscope	Employs a laser beam circulating in a ring to detect rotation.	Aerospace, military, high-precision navigation.
Microelectromechanical Systems (MEMS) Gyroscope	A miniature gyroscope fabricated using semiconductor manufacturing processes.	Consumer electronics, automotive, gaming.

Each type of gyroscope has its advantages and limitations, making them suitable for different applications. Mechanical gyroscopes are robust and reliable but can be bulky and expensive. Fiber optic and ring laser gyroscopes offer high precision and stability but are more complex and costly. MEMS gyroscopes are compact, affordable, and widely used in consumer electronics.

💡 Note: The choice of gyroscope type depends on the specific requirements of the application, including accuracy, size, cost, and environmental conditions.

Challenges and Limitations

While gyroscopes and the principle of precession are powerful tools, they also face several challenges and limitations. Some of the key issues include:

Drift: Over time, gyroscopes can accumulate errors due to drift, which is the gradual change in the measured orientation. This can be mitigated through calibration and the use of additional sensors.
Environmental Factors: Gyroscopes can be affected by temperature changes, vibrations, and other environmental factors, which can impact their accuracy and reliability.
Cost and Complexity: High-precision gyroscopes, such as fiber optic and ring laser gyroscopes, can be expensive and complex to manufacture and maintain.
Size and Power Consumption: MEMS gyroscopes are compact and low-power, but they may not offer the same level of precision as larger, more expensive gyroscopes.

Addressing these challenges requires ongoing research and development, as well as the integration of gyroscopes with other sensors and technologies to enhance their performance and reliability.

To illustrate the concept of gyroscope and precession, consider the following example:

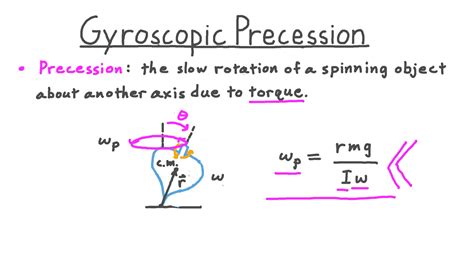

In this diagram, a gyroscope is subjected to a torque (τ) that causes it to precess around a vertical axis. The rate of precession (ωp) is determined by the applied torque, the moment of inertia (I) of the gyroscope, and its angular velocity (ω). This visual representation helps to understand how the gyroscope's axis of rotation changes in response to an external force.

Understanding the principles of gyroscope and precession is essential for anyone working in fields that involve rotating objects and motion sensing. By grasping the fundamentals of gyroscopes and precession, one can appreciate their wide-ranging applications and the challenges they face. Whether in navigation systems, stabilization platforms, or consumer electronics, gyroscopes play a crucial role in modern technology.

In summary, gyroscopes and the phenomenon of precession are fundamental to the behavior of rotating objects. They have numerous applications in technology and everyday life, from navigation systems to consumer electronics. Understanding the principles behind gyroscopes and precession allows for the development of more accurate and reliable systems, enhancing our ability to measure and control motion. The ongoing research and development in this field will continue to drive innovation and improve the performance of gyroscope-based technologies.
