Ground Vs Neutral Wire

Understanding the differences between the Ground vs Neutral Wire is crucial for anyone working with electrical systems. These two wires play distinct roles in ensuring the safety and functionality of electrical circuits. This blog post will delve into the specifics of each wire, their functions, and the importance of correctly identifying and using them in electrical installations.

Table of Contents

Understanding the Ground Wire

The ground wire is a critical component in electrical systems, designed to provide a safe path for electrical current to flow in case of a fault. It is typically identified by its green or green/yellow color and is connected to the earth. The primary function of the ground wire is to protect against electrical shocks and fires by diverting excess current safely to the ground.

Here are some key points about the ground wire:

Color Coding: The ground wire is usually green or green/yellow.
Function: It provides a low-resistance path to the earth, ensuring that any fault current is safely directed away from the electrical system.
Safety: The ground wire is essential for the proper functioning of Ground Fault Circuit Interrupters (GFCIs) and other safety devices.

Understanding the Neutral Wire

The neutral wire, often white in color, completes the circuit by providing a return path for the electrical current. It is connected to the neutral bus bar in the electrical panel and is essential for the proper functioning of electrical devices. The neutral wire carries the return current from the load back to the power source, completing the circuit.

Key points about the neutral wire include:

Color Coding: The neutral wire is typically white.
Function: It provides a return path for the electrical current, completing the circuit.
Voltage: The neutral wire is usually at or near zero volts relative to the ground.

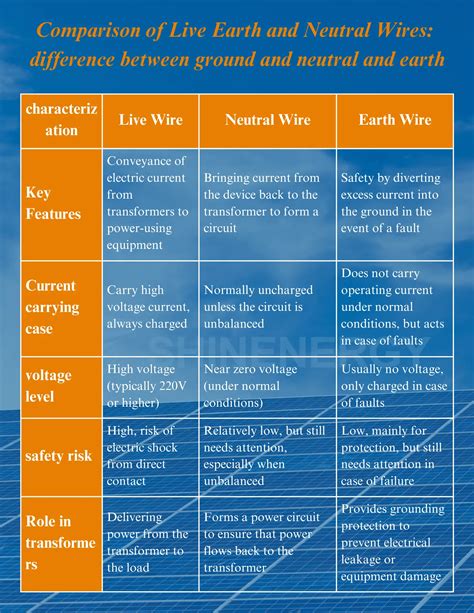

Differences Between Ground and Neutral Wires

While both the ground and neutral wires are essential for electrical safety and functionality, they serve different purposes. Understanding these differences is crucial for anyone working with electrical systems. Here is a comparison of the two:

Aspect	Ground Wire	Neutral Wire
Color	Green or Green/Yellow	White
Function	Provides a safe path to the earth for fault current	Provides a return path for the electrical current
Voltage	Zero volts relative to the earth	Zero volts relative to the ground
Safety	Essential for protecting against electrical shocks and fires	Essential for completing the electrical circuit

🔧 Note: Never confuse the ground wire with the neutral wire. Incorrect wiring can lead to serious electrical hazards, including shocks and fires.

Importance of Proper Grounding

Proper grounding is essential for the safety and efficiency of electrical systems. Grounding ensures that any fault current is safely directed to the earth, preventing electrical shocks and fires. It also helps in stabilizing the voltage levels and reducing electrical noise, which can interfere with the performance of sensitive electronic devices.

Here are some key points about proper grounding:

Safety: Proper grounding protects against electrical shocks and fires.
Stability: It helps in stabilizing voltage levels and reducing electrical noise.
Compliance: Proper grounding is often required by electrical codes and standards.

Common Misconceptions About Ground and Neutral Wires

There are several misconceptions about the ground and neutral wires that can lead to incorrect wiring and potential hazards. Here are some common misconceptions:

Ground and Neutral are Interchangeable: This is incorrect. The ground and neutral wires serve different purposes and should not be interchanged.
Neutral Wire is Always Safe: While the neutral wire is usually at zero volts, it can carry current and should not be treated as a safe wire.
Ground Wire is Only for Safety: While the primary function of the ground wire is safety, it also plays a role in stabilizing voltage levels and reducing electrical noise.

⚠️ Note: Always follow electrical codes and standards when working with electrical systems. Incorrect wiring can lead to serious hazards.

Best Practices for Working with Ground and Neutral Wires

When working with electrical systems, it is essential to follow best practices to ensure safety and compliance with electrical codes. Here are some best practices for working with ground and neutral wires:

Identify Wires Correctly: Always identify the ground and neutral wires correctly before starting any work.
Use Proper Tools: Use insulated tools and wear appropriate personal protective equipment (PPE) when working with electrical systems.
Follow Electrical Codes: Always follow local electrical codes and standards when installing or repairing electrical systems.
Test Wires: Use a multimeter to test the continuity and voltage of the ground and neutral wires before and after installation.

By following these best practices, you can ensure the safety and efficiency of your electrical systems.

Properly understanding and using the Ground vs Neutral Wire is essential for anyone working with electrical systems. These wires play distinct roles in ensuring the safety and functionality of electrical circuits. By following best practices and understanding the differences between these wires, you can ensure the safety and efficiency of your electrical installations.

In summary, the ground wire provides a safe path for fault current to the earth, while the neutral wire completes the circuit by providing a return path for the electrical current. Proper grounding is essential for safety, stability, and compliance with electrical codes. Always follow best practices and avoid common misconceptions when working with electrical systems to ensure safety and efficiency.
